Configuring CTX Buffers
P B S330/S310 M
ATH UILDER ODULES
3 From the CTX menu, select [1] Manage Shapers to open the CTX Shapers menu,
shown in Figure 64.

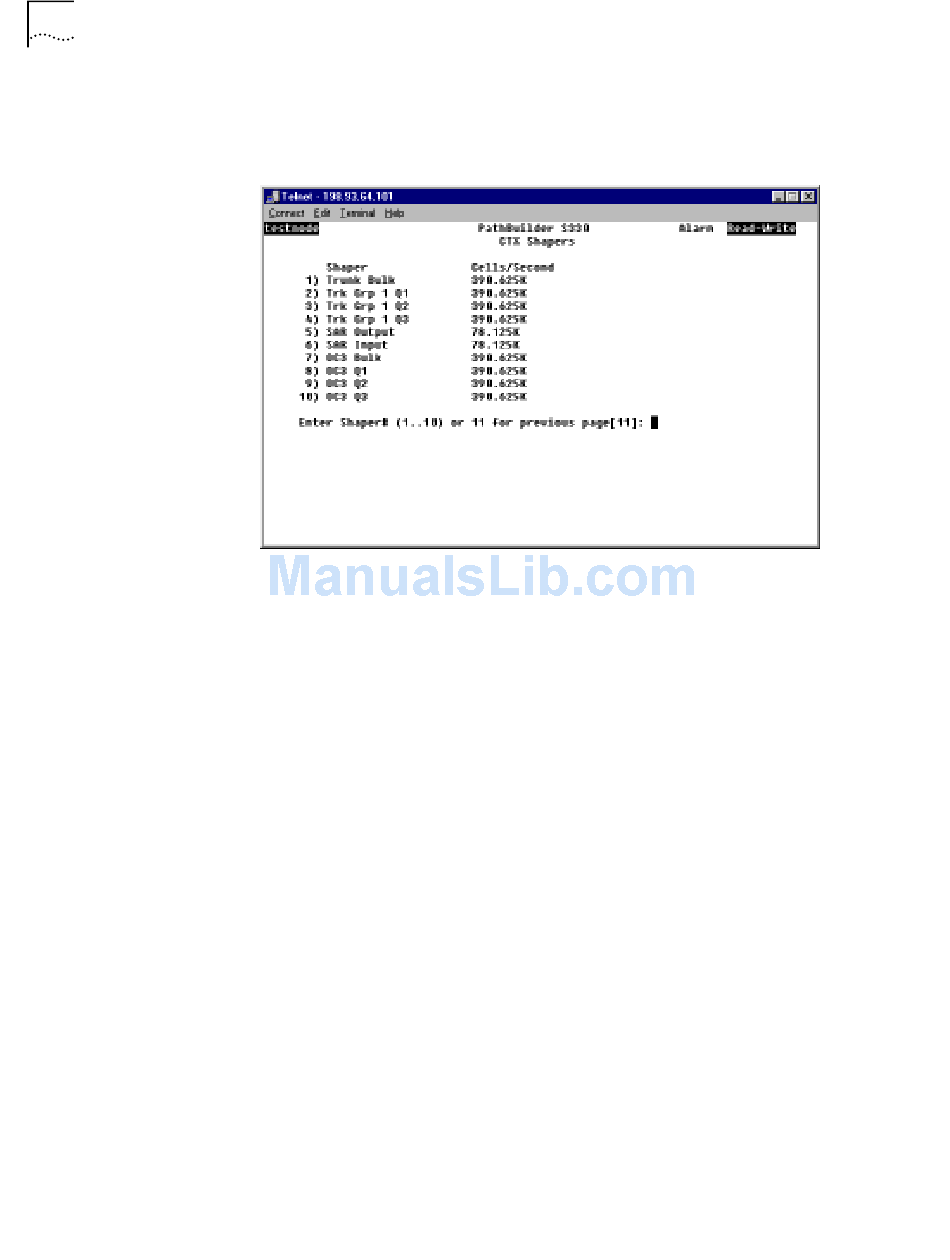

Figure 64 CTX Shapers Menu
4 Select the number corresponding to the shaper you want to configure. A prompt
appears similar to the following:
Enter cells/sec, (150..195 312K)
5 Enter the desired shaper value.
The CTX is an output-buffered switch, with a 64K cell buffer capacity. The
software sets up a default configuration, but you can change it if you want. For
example, you should make the queue (buffer) used for your router traffic as large
as possible. To do this, you must first deallocate memory from another
queue—OC3/STM-1 queue 3, for example—and reallocate the memory to the
queue that will carry your router traffic. See "CTX Output Queues and Memory
Partition" in Appendix B, for reference information pertaining to configuring the
output buffers.
To change the default output buffer configuration:
1 From the Configuration Management menu, select [1] Manage Card to open the
List Card menu.
2 Select [2] CTX to open the CTX menu, shown above in Figure 63.
3 From the CTX menu, select [2] Manage Buffers to open the CTX Buffers menu,
shown in Figure 65.
