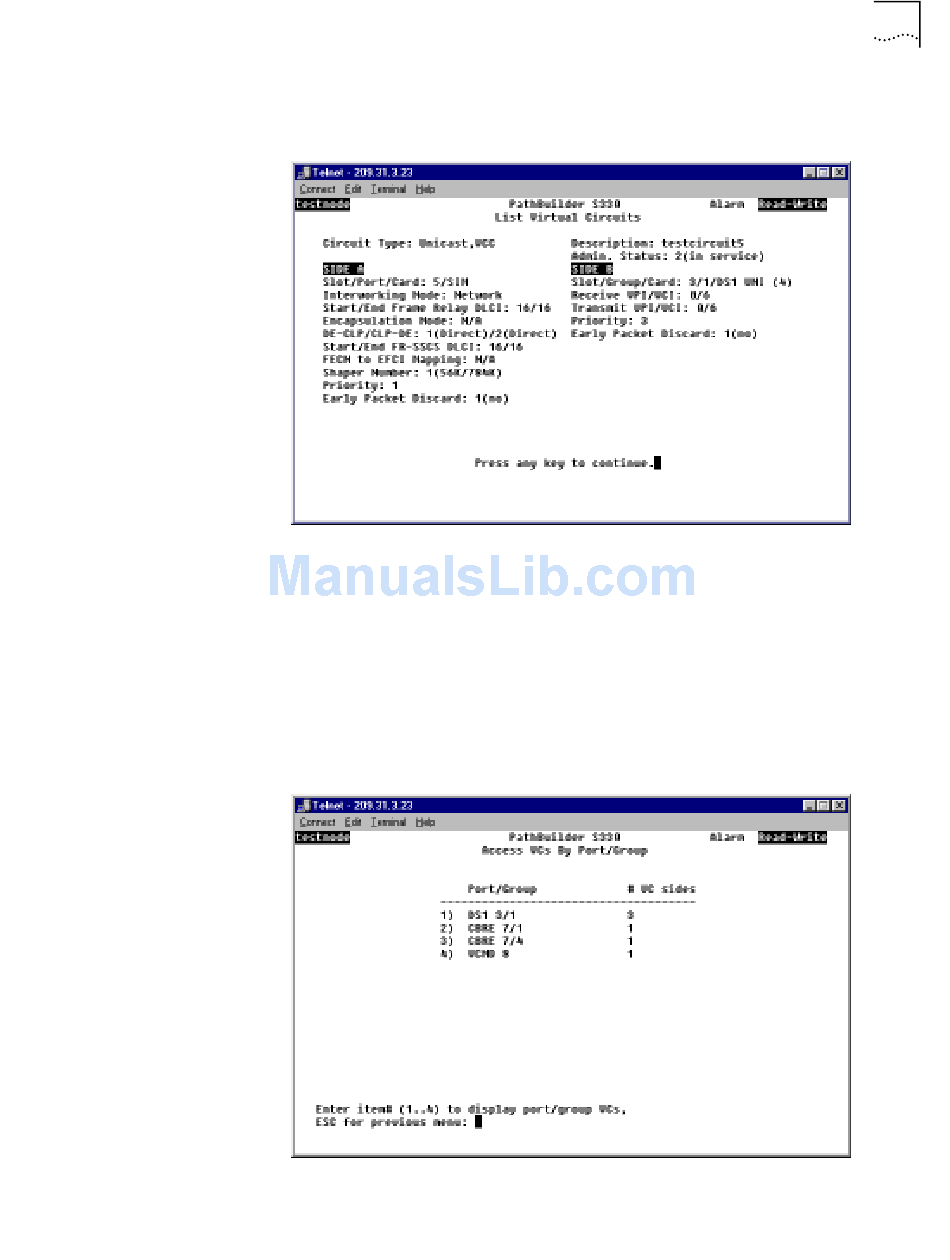

Figure 141 shows a representative List Virtual Circuit detail screen.
Figure 141 List Virtual Circuit Detail Screen

Viewing Virtual Circuits by Port or Group

To view a summary of existing virtual circuits for a selected port or group:
1 From the Configuration Management menu, select [2] Manage Circuit to open the
Virtual Circuit menu, shown earlier in Figure 119
2 From the Virtual Circuit menu, select [6] Access Virtual Circuits by Port/Group to
open the Access VCs by Port/Group Selection menu, shown in Figure 142. This
menu lists the ports and groups on the chassis for which virtual circuits have been
defined and the number of VC sides associated with each port/group.
Figure 142 Access VCs by Port/Group Selection Menu
Configuring Virtual Circuits 153
