Site Requirements

Step 1: Install the
Shelf in the Rack

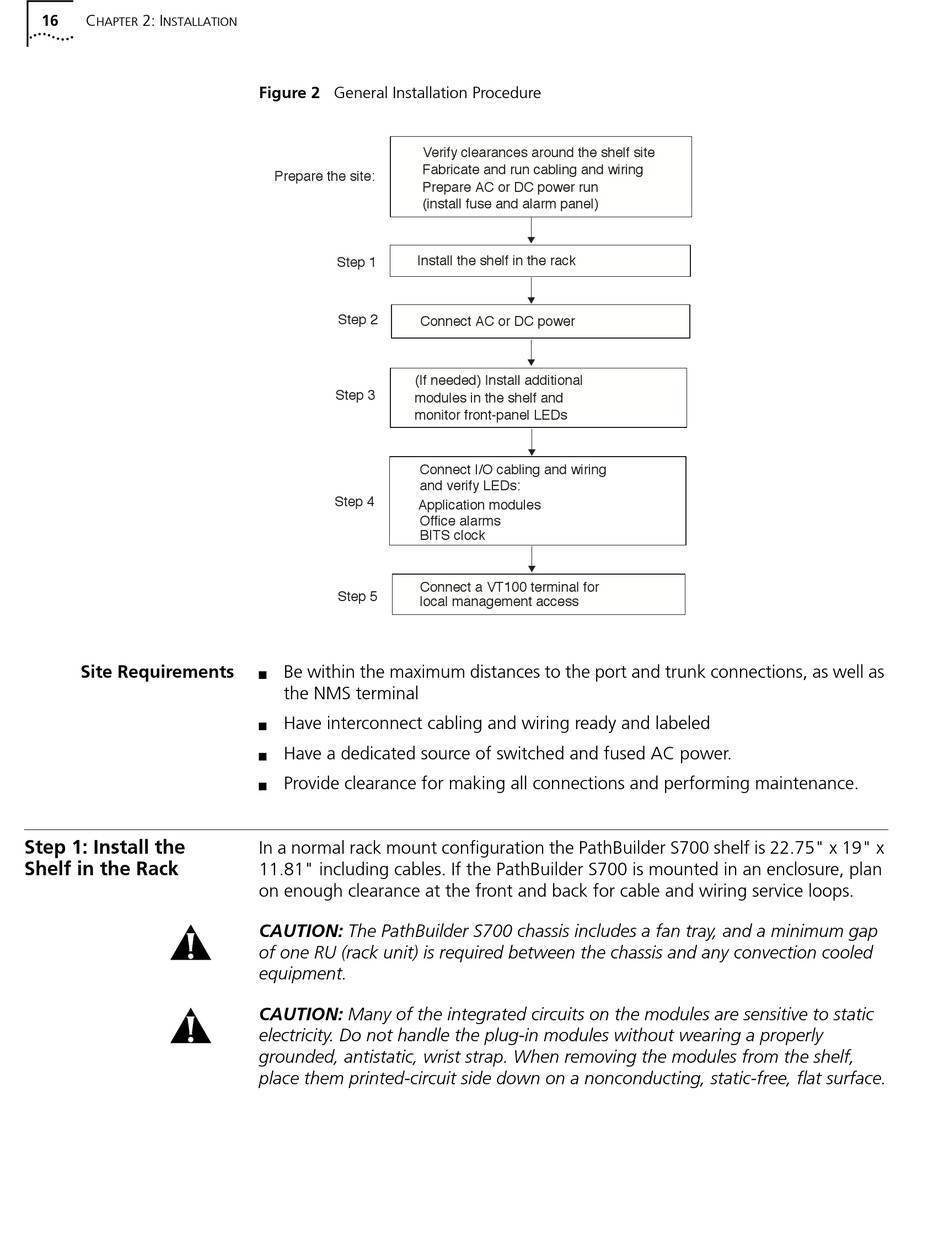

Figure 2 General Installation Procedure
Verify clearances around the shelf site
Fabricate and run cabling and wiring
Prepare the site:
Prepare AC or DC power run
(install fuse and alarm panel)
Install the shelf in the rack
Step 1
Step 2
Connect AC or DC power
(If needed) Install additional
Step 3
modules in the shelf and
monitor front-panel LEDs
Connect I/O cabling and wiring
and verify LEDs:
Step 4
Application modules
Office alarms
BITS clock
Connect a VT100 terminal for
Step 5
local management access
Be within the maximum distances to the port and trunk connections, as well as
n
the NMS terminal
Have interconnect cabling and wiring ready and labeled
n
Have a dedicated source of switched and fused AC power.
n
Provide clearance for making all connections and performing maintenance.
n
In a normal rack mount configuration the PathBuilder S700 shelf is 22.75" x 19" x
11.81" including cables. If the PathBuilder S700 is mounted in an enclosure, plan
on enough clearance at the front and back for cable and wiring service loops.
CAUTION: The PathBuilder S700 chassis includes a fan tray, and a minimum gap
of one RU (rack unit) is required between the chassis and any convection cooled
equipment.
CAUTION: Many of the integrated circuits on the modules are sensitive to static
electricity. Do not handle the plug-in modules without wearing a properly
grounded, antistatic, wrist strap. When removing the modules from the shelf,
place them printed-circuit side down on a nonconducting, static-free, flat surface.
