Configuring the CBR
T1-DSX/E1 Port(s)
P B S330/S310 M
ATH UILDER ODULES
To configure the CBR T1-DSX/E1 port(s):
1 From the Configuration Management menu, select [1] Manage Card.
2 From the List Card menu, shown earlier in Figure 60, select [7] CBR to open the
CBR Configuration Selection menu. Figure 109 shows the CBR E1 Configuration
Selection menu. The CBR T1-DSX Configuration Selection menu is the same.

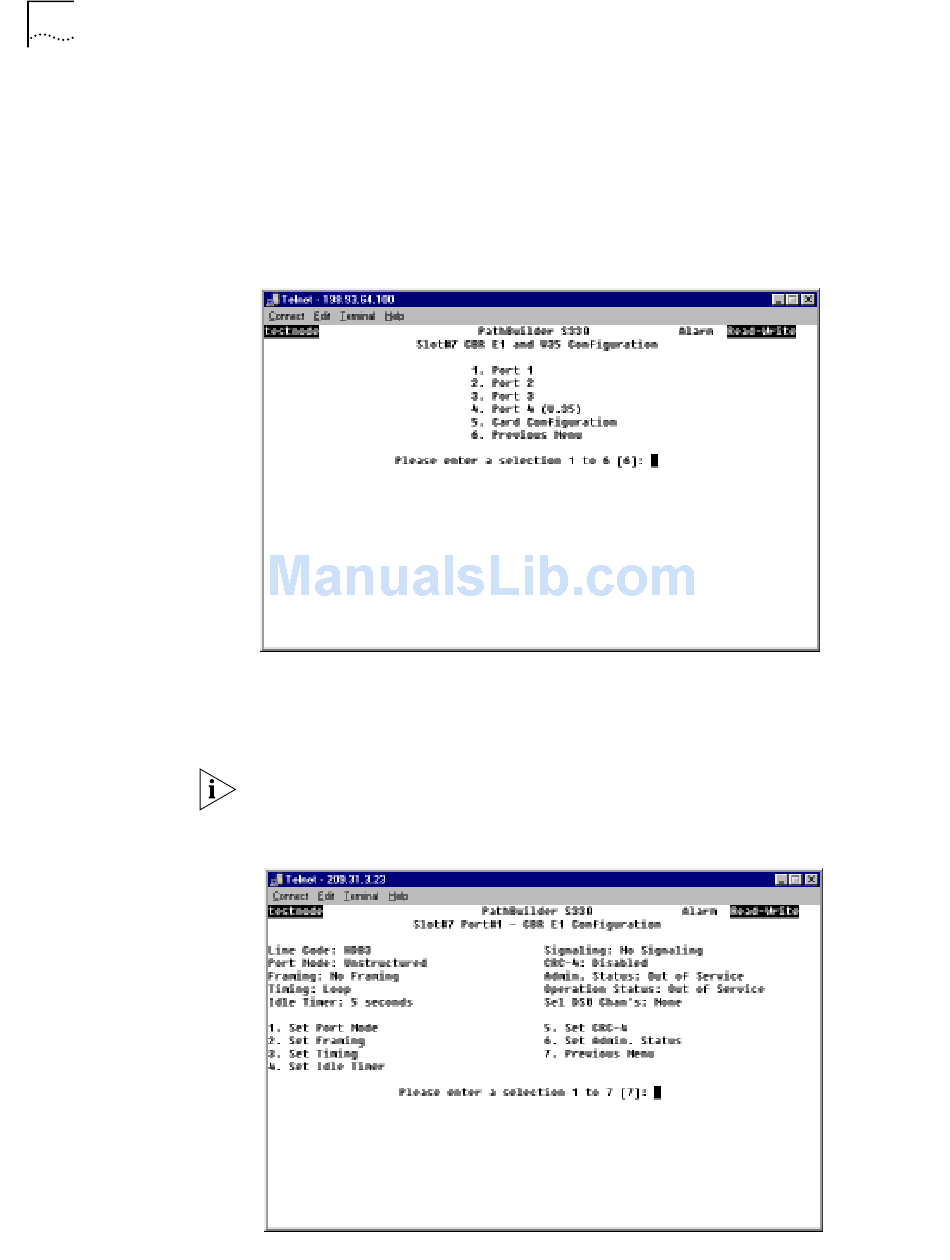

Figure 109 CBR E1 Configuration Menu
3 Select the option corresponding to the port you want to configure ([1] Port 1, [2]
Port 2, or [3] Port 3). The CBR T1-DSX/E1Port Configuration menu for the selected
port appears. Figure 110 shows a CBR Port Configuration menu for an CBR E1
card.
For the PathBuilder S310 switch, you can configure only one T1-DSX/E1 port on
the CBR module.
Figure 110 CBR E1 Port Configuration Menu (Unstructured Mode)
