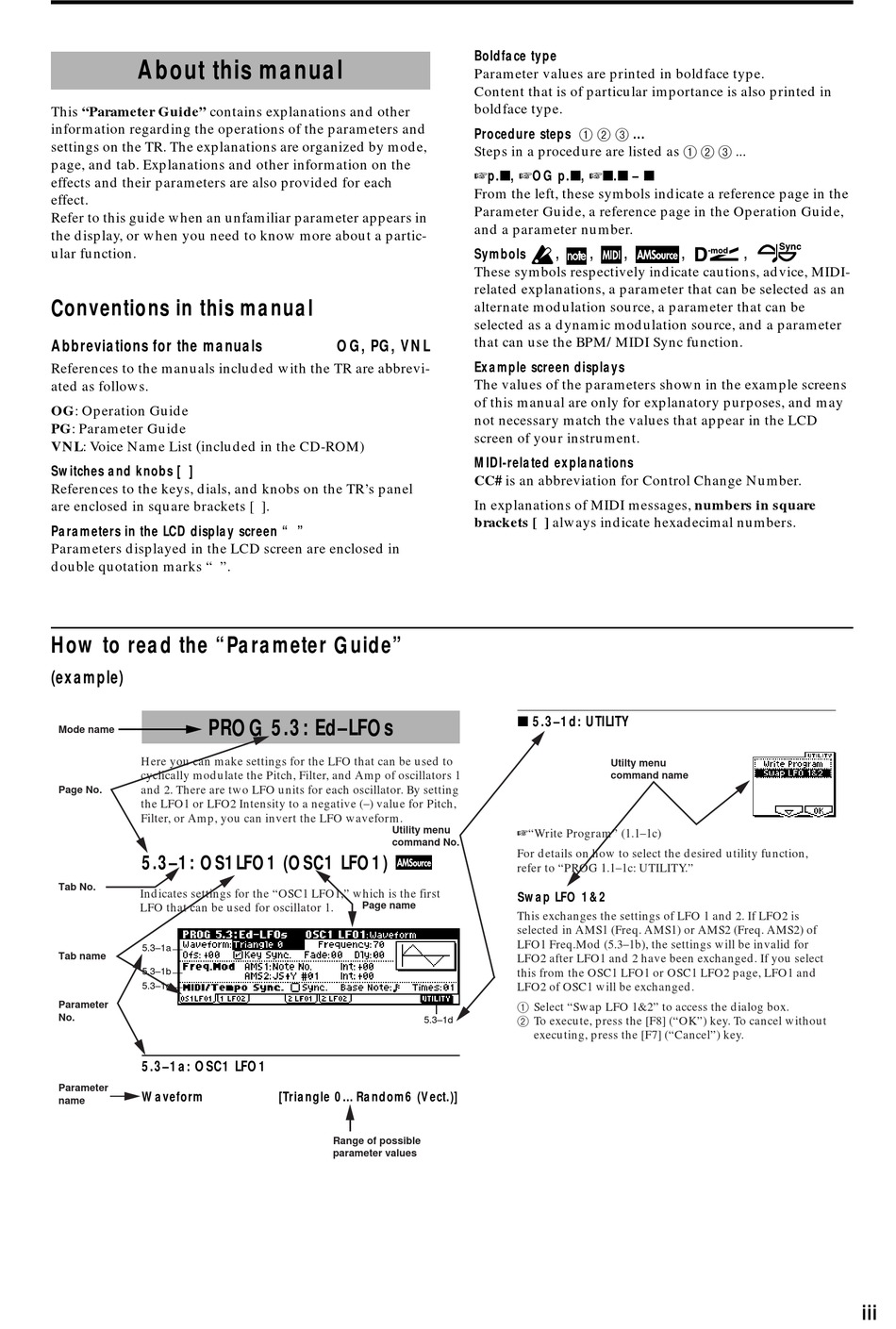

About this manual

This "Parameter Guide" contains explanations and other
information regarding the operations of the parameters and
settings on the TR. The explanations are organized by mode,
page, and tab. Explanations and other information on the
effects and their parameters are also provided for each
effect.
Refer to this guide when an unfamiliar parameter appears in
the display, or when you need to know more about a partic-
ular function.

Conventions in this manual

Abbreviations for the manuals
References to the manuals included with the TR are abbrevi-
ated as follows.
OG : Operation Guide
PG : Parameter Guide
(
VNL : Voice Name List included in the CD-ROM)
Switches and knobs [ ]
References to the keys, dials, and knobs on the TR's panel
are enclosed in square brackets [ ].
Parameters in the LCD display screen " "
Parameters displayed in the LCD screen are enclosed in
double quotation marks " ".
How to read the "Parameter Guide"
(example)
PROG 5.3: Ed–LFOs
Mode name
Here you can make settings for the LFO that can be used to
cyclically modulate the Pitch, Filter, and Amp of oscillators 1
and 2. There are two LFO units for each oscillator. By setting
Page No.
the LFO1 or LFO2 Intensity to a negative (–) value for Pitch,
Filter, or Amp, you can invert the LFO waveform.
5.3–1: OS1LFO1 (OSC1 LFO1)
Tab No.
Indicates settings for the "OSC1 LFO1," which is the first
LFO that can be used for oscillator 1.
5.3–1a
Tab name
5.3–1b
5.3–1c
Parameter
No.
5.3–1a: OSC1 LFO1
Parameter
Waveform
name
OG, PG, VNL
Utility menu
command No.
Page name
5.3–1d
[Triangle 0...Random6 (Vect.)]
Range of possible
parameter values
Boldface type
Parameter values are printed in boldface type.
Content that is of particular importance is also printed in
boldface type.
Procedure steps 1 2 3 ...
Steps in a procedure are listed as 1 2 3 ...
☞ p. ■ , ☞ OG p. ■ , ☞■ . ■ – ■
From the left, these symbols indicate a reference page in the
Parameter Guide, a reference page in the Operation Guide,
and a parameter number.
Symbols , , ,
These symbols respectively indicate cautions, advice, MIDI-
related explanations, a parameter that can be selected as an
alternate modulation source, a parameter that can be
selected as a dynamic modulation source, and a parameter
that can use the BPM/MIDI Sync function.
Example screen displays
The values of the parameters shown in the example screens
of this manual are only for explanatory purposes, and may
not necessary match the values that appear in the LCD
screen of your instrument.
MIDI-related explanations
CC# is an abbreviation for Control Change Number.
In explanations of MIDI messages, numbers in square
brackets [ ] always indicate hexadecimal numbers.
■ 5.3–1d: UTILITY
Utilty menu
command name
☞"Write Program" (1.1–1c)
For details on how to select the desired utility function,
refer to "PROG 1.1–1c: UTILITY."
Swap LFO 1&2
This exchanges the settings of LFO 1 and 2. If LFO2 is
selected in AMS1 (Freq. AMS1) or AMS2 (Freq. AMS2) of
LFO1 Freq.Mod (5.3–1b), the settings will be invalid for
LFO2 after LFO1 and 2 have been exchanged. If you select
this from the OSC1 LFO1 or OSC1 LFO2 page, LFO1 and
LFO2 of OSC1 will be exchanged.
1 Select "Swap LFO 1&2" to access the dialog box.
2 To execute, press the [F8] ("OK") key. To cancel without
executing, press the [F7] ("Cancel") key.
, ,
iii
