INSTALLATION

I Microphone connection

The microphone connector is located behind the front panel.

Connect the supplied microphone as follows:

➀

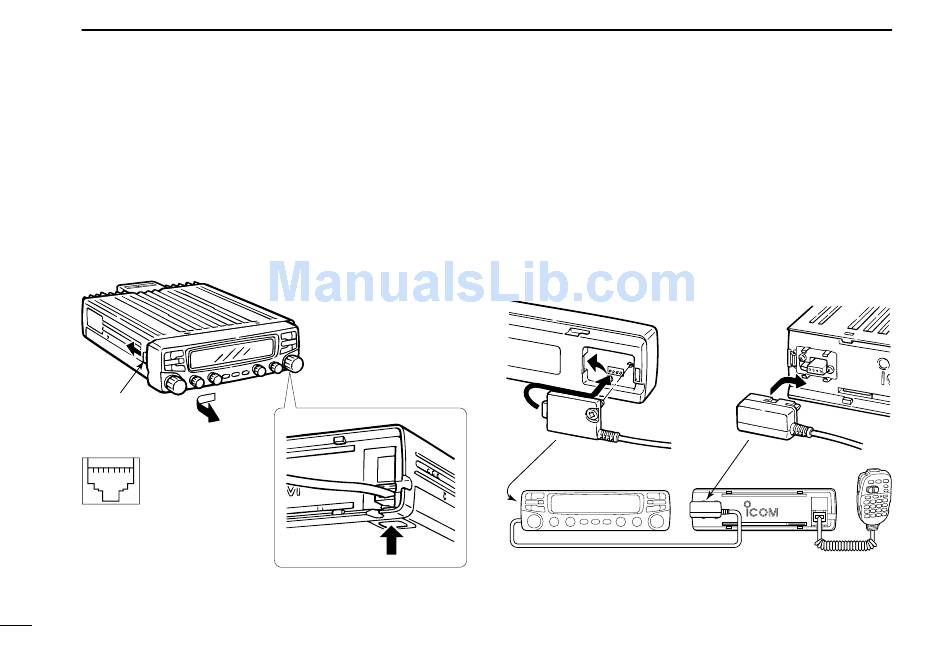

Push the release button, then detach the remote controller

as shown below.

➁

Connect the supplied microphone to the microphone con-

nector.

Release

button

Microphone pin assignments

➀ 8 V OUT

➁ Freq. up/down

➀

➇

➂ 8 V control IN

➃ PTT

➄ Mic AF (–)

➅ Mic AF (+)

➆ Ground

➇ Data IN

➂

Reattach the remote controller to the main body.

➃

To remove the microphone, push the release button as

above.

I Separate installation

Using an optional OPC-600/601

panel can be separated from the main body, doubling as a re-

mote controller.

➀

Detach the front panel as shown at left.

➁

Connect a separation cable to the front panel and to the

main body using the supplied screws as illustrated below.

Push

mic release

SEPARATION CABLE

Rear of front panel

OPC-600 or OPC-601

, the front

Main body
