PANEL DESCRIPTION

I Rear panel

q ANTENNA CONNECTOR [ANT]

Accepts a 50 Ω dual band antenna with a PL-259 connec-

tor. (p. 14)

w SPEAKER JACK 1 [144 MHz SP]

Connects a 4–8 Ω speaker, if required. Outputs the 144

MHz band's audio. See the table at right for details.

e SPEAKER JACK 2 [430(440) MHz SP]

Connects a 4–8 Ω speaker, if required. Outputs both

band's audio when [430(440) MHz SP] has no connection.

r POWER RECEPTACLE [DC13.8V]

Accepts 13.8 V DC with the supplied DC power cable.

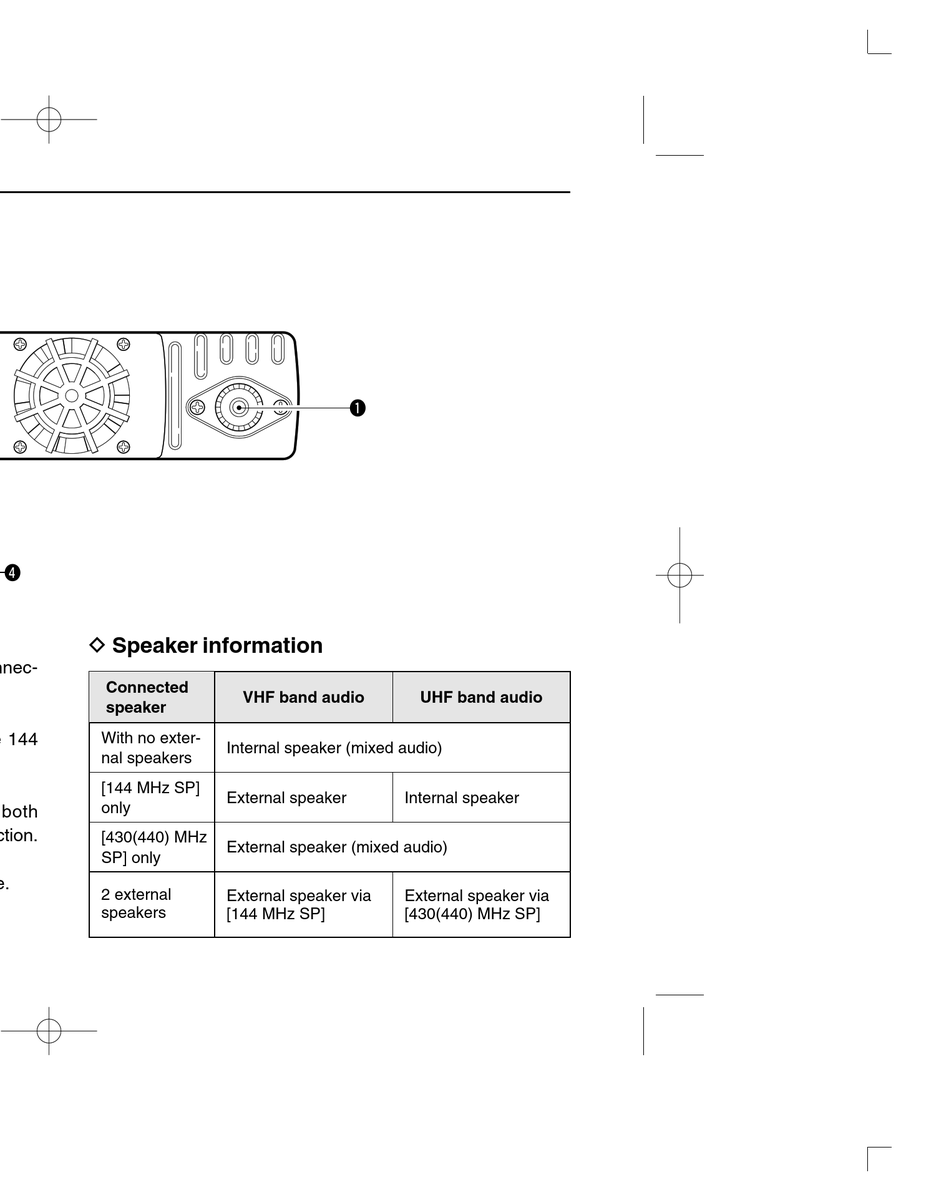

D Speaker information

Connected

speaker

With no exter-

Internal speaker (mixed audio)

nal speakers

[144 MHz SP]

External speaker

only

[430(440) MHz

External speaker (mixed audio)

SP] only

2 external

External speaker via

speakers

[144 MHz SP]

VHF band audio

UHF band audio

Internal speaker

External speaker via

[430(440) MHz SP]
