I Tuning step selection

Tuning steps are the minimum frequency change increments

when you rotate the tuning dial or push the [Y] or [Z]

switches on the microphone. The following tuning steps are

available:

• 5 kHz

• 10 kHz

• 12.5 kHz

• 20 kHz

• 25 kHz

• 30 kHz

NOTE: For convenience, select a tuning step that

matches the frequency intervals of repeaters in your area.

➀

Push the desired band's tuning dial.

➁

Push the selected band's [V/MHz] to select VFO mode if

another mode has been selected.

➂

Push the selected band's [

until "tS" appears as shown below.

• Pushing [

MONI] reverses the order of selection.

(SQL)

• Cancel the DTMF memory or optional pager/code squelch in ad-

vance. (pgs. 49, 59, 62)

➃

Rotate the selected band's tuning dial to select the tuning

step.

➄

Push the selected band's tuning dial to exit set mode.

15 kHz tuning step

SET MODE

USING

• 15 kHz

• 50 kHz

SET] one or more times

(VOL)

25 kHz tuning step

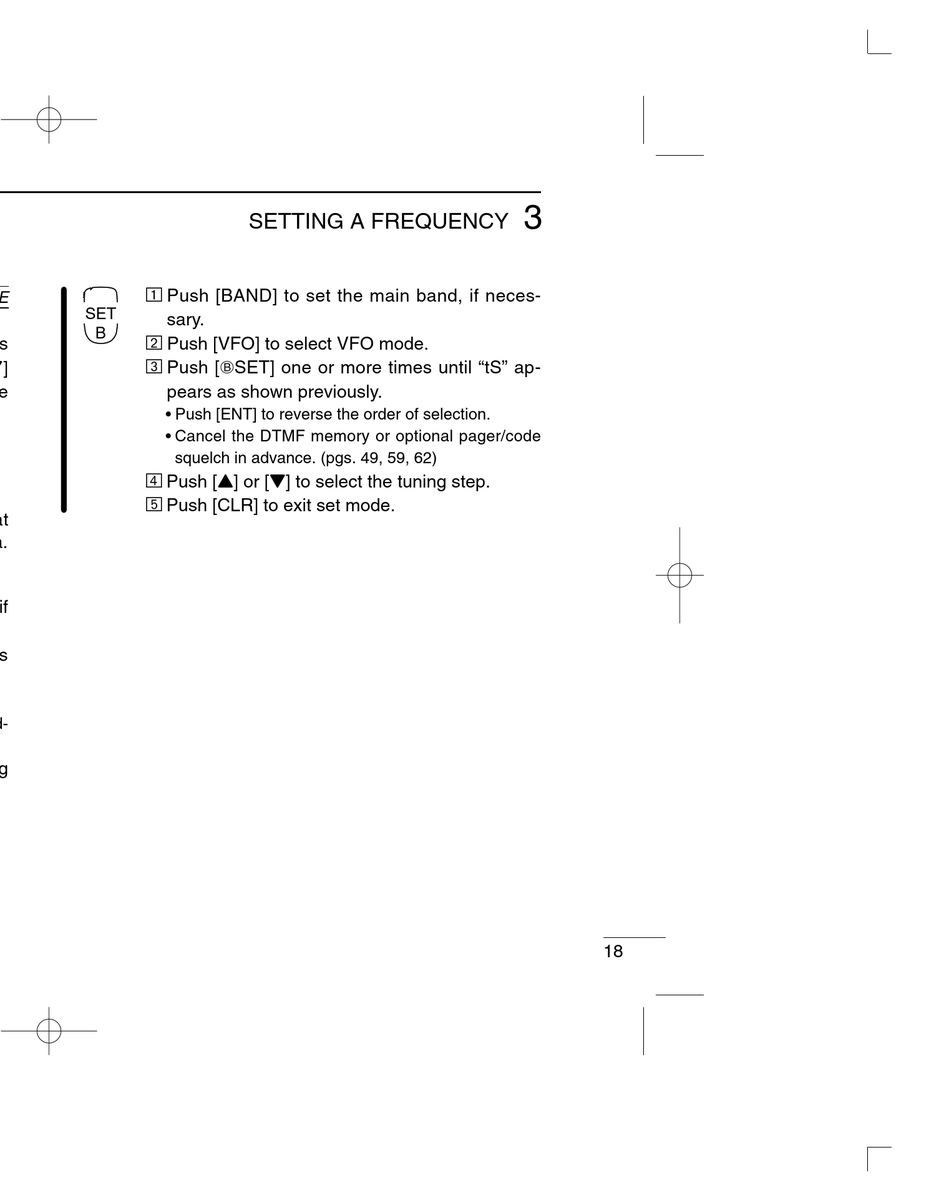

SETTING A FREQUENCY

Push [BAND] to set the main band, if neces-

SET

sary.

Push [VFO] to select VFO mode.

Push [FSET] one or more times until "tS" ap-

pears as shown previously.

• Push [ENT] to reverse the order of selection.

• Cancel the DTMF memory or optional pager/code

squelch in advance. (pgs. 49, 59, 62)

Push [Y] or [Z] to select the tuning step.

Push [CLR] to exit set mode.
