I Programming Scan Edges - Icom IC-2710H Instruction Manual

9
SCAN OPERATION

I Programming scan edges

Scan edges can be programmed in the same manner as
memory channels. Scan edges are programmed into pairs of
scan edge channels, 1A/1b to 3A/3b, in memory channels.
➀
Push the desired band's tuning dial.
➁
Set the desired frequency in VFO mode:
➥ Push the selected band's [V/MHz] to select VFO mode.
➥ Set the frequency using the selected band's tuning dial.
➥ Set other data (e.g. offset frequency, etc.) if required.
➂
Push [S.MW] momentarily.
• "!" and the memory channel number flashes.

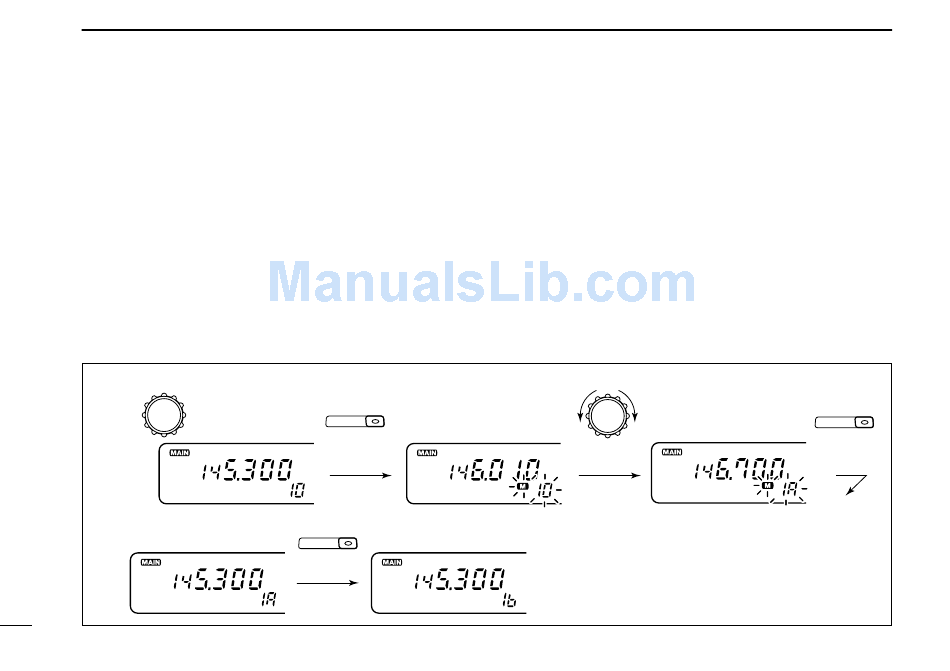

[EXAMPLE]: Programming 145.30 MHz and 145.80 MHz for the VHF scan edges 1A and 1b.
Push
then rotate
VHF
tuning
dial.
43
Push
S.MW MW
momentarily
1 5 9
continue pushing
S.MW MW
➃
Rotate the tuning dial to select a scan edge channel (1A to
3A).
➄
Push [ MW] for 1 sec. to program.
(S.MW)
• 3 beeps may sound and the frequency is programmed.
• Scan edge 1b is automatically selected when continuing to push
[ MW] after programming.
(S.MW)
➅
To program a frequency for the other pair of scan edges,
1b to 3b, repeat steps ➃ and ➄.
• If the same frequency is programmed into both scan edges, pro-
grammed scan will not function.
Rotate
1 5 9
Program 1b in the same manner.
Push
S.MW MW
and hold
