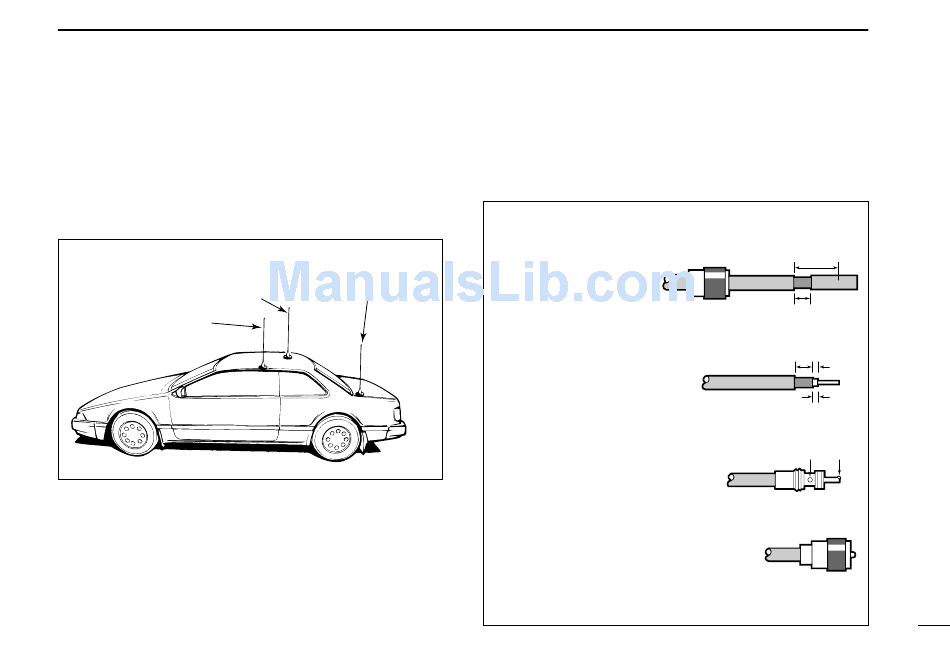

I Antenna installation
D Antenna location
To obtain maximum performance from the transceiver, select
a high-quality antenna and mount it in a good location. A non-
radial antenna should be used when using a magnetic mount.
Roof-mount antenna
(Drill a hole or use a magnetic mount.)
Gutter-mount antenna
D Antenna splitter
You can use a dual band antenna because a duplexer is in-
stalled in the transceiver. However, an external duplexer must
be connected when using a separate antenna for each band.
D Antenna connector
The antenna uses a PL-259 connector.
• PL-259 CONNECTOR
➀
Slide the coupling ring
Trunk-mount
down. Strip the cable
antenna
jacket and soft solder.
➁
Strip the cable as
shown at right. Soft
solder the center con-
ductor.
➂
Slide the connector
body on and solder it.
➃
Screw the coupling
ring onto the connec-
tor body.
2
INSTALLATION
30 mm
Coupling ring
10 mm (soft solder)
10 mm
Soft
solder
1–2 mm
solder solder
(10 mm ≈
3
⁄
in)
8
14
