I Scan resume
condition
The scan resume condition can be selected as timer, pause
or empty pause scan. The empty pause scan is useful for
finding unused frequencies. The resume condition is also
used for priority watch. (p. 47)
Separate setting for each band
➀
Push the desired band's tuning dial.
➁
Push [SET] one or more times until "SCt" or "SCP" appears
as shown above.
• Pushing [MONI] reverses the order of selection.
• Cancel the DTMF encoder or optional pager/code squelch in ad-
vance. (p. 49, 59, 62)
SET MODE
USING
The display shows that the
scan resumes 15 sec. after it
stops.

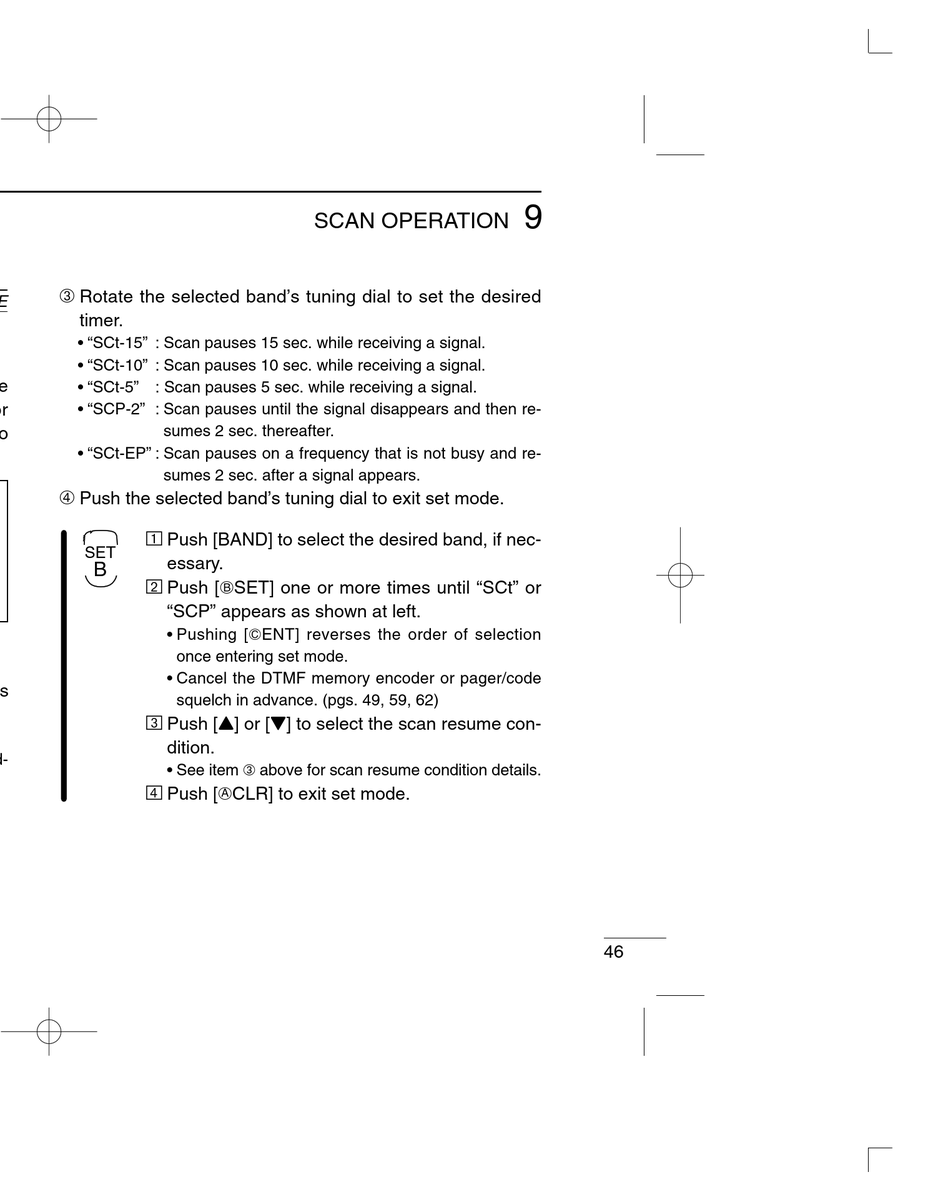

➂
Rotate the selected band's tuning dial to set the desired
timer.
• "SCt-15" : Scan pauses 15 sec. while receiving a signal.
• "SCt-10" : Scan pauses 10 sec. while receiving a signal.
• "SCt-5" : Scan pauses 5 sec. while receiving a signal.
• "SCP-2" : Scan pauses until the signal disappears and then re-
sumes 2 sec. thereafter.
• "SCt-EP" : Scan pauses on a frequency that is not busy and re-
sumes 2 sec. after a signal appears.
➃
Push the selected band's tuning dial to exit set mode.
Ä
Push [BAND] to select the desired band, if nec-
SET
essary.
B
Å
Push [FSET] one or more times until "SCt" or
"SCP" appears as shown at left.
• Pushing [GENT] reverses the order of selection
once entering set mode.
• Cancel the DTMF memory encoder or pager/code
squelch in advance. (pgs. 49, 59, 62)
Ç
Push [Y] or [Z] to select the scan resume con-
dition.
• See item ➂ above for scan resume condition details.
É
Push [ECLR] to exit set mode.
9
SCAN OPERATION
46
