I Offset Frequency - Icom IC-2710H Instruction Manual

I Offset frequency

DUP
Separate setting for each band
➀
Push the desired band's tuning dial.
➁
Select the mode/channel you wish to set the offset fre-
quency to, such as VFO mode or memory/call channel.
• The offset frequency can be independently programmed into
each mode or channel.
➂
Push [SET] one or more times until "DUP" appears and
flashes as shown above.
• Pushing [MONI] reverses the order of selection.
• Cancel the DTMF memory encoder or optional pager/code
squelch function in advance. (pgs. 49, 59, 62)
➃
Rotate the selected band's tuning dial to set the desired
frequency.
• Selectable step increment is the same as the preset tuning step.
(p. 18)
• Use the selected band's [V/MHz] for quick MHz setting.
➄
Push the selected band's tuning dial to exit set mode.
SET MODE
USING
The display shows that a 0.6
MHz (600 kHz) frequency is
set.

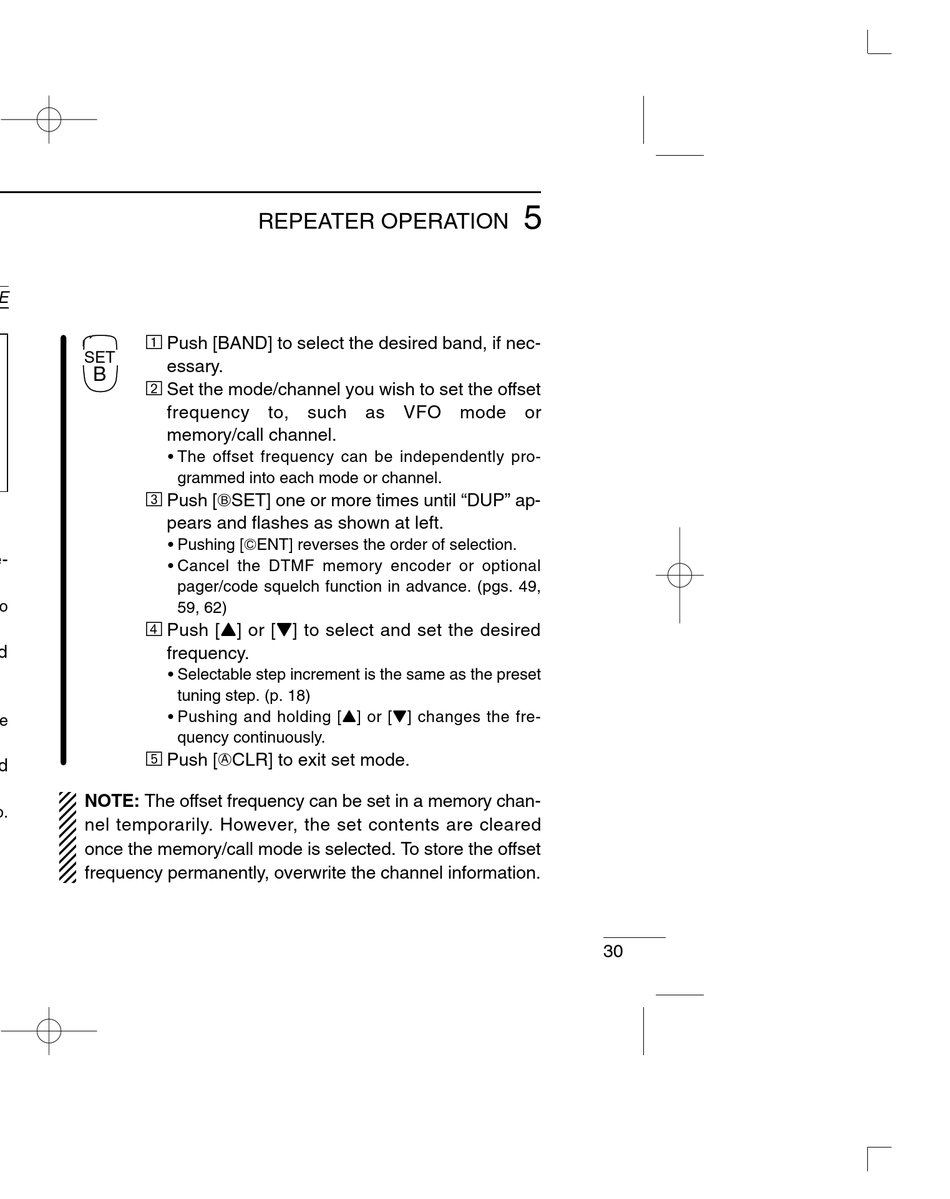

REPEATER OPERATION
Ä
Push [BAND] to select the desired band, if nec-
SET
essary.
B
Å
Set the mode/channel you wish to set the offset
frequency to, such as VFO mode or
memory/call channel.
• The offset frequency can be independently pro-
grammed into each mode or channel.
Ç
Push [FSET] one or more times until "DUP" ap-
pears and flashes as shown at left.
• Pushing [GENT] reverses the order of selection.
• Cancel the DTMF memory encoder or optional
pager/code squelch function in advance. (pgs. 49,
59, 62)
É
Push [Y] or [Z] to select and set the desired
frequency.
• Selectable step increment is the same as the preset
tuning step. (p. 18)
• Pushing and holding [Y] or [Z] changes the fre-
quency continuously.
Ñ
Push [ECLR] to exit set mode.
NOTE: The offset frequency can be set in a memory chan-
nel temporarily. However, the set contents are cleared
once the memory/call mode is selected. To store the offset
frequency permanently, overwrite the channel information.
5
30
