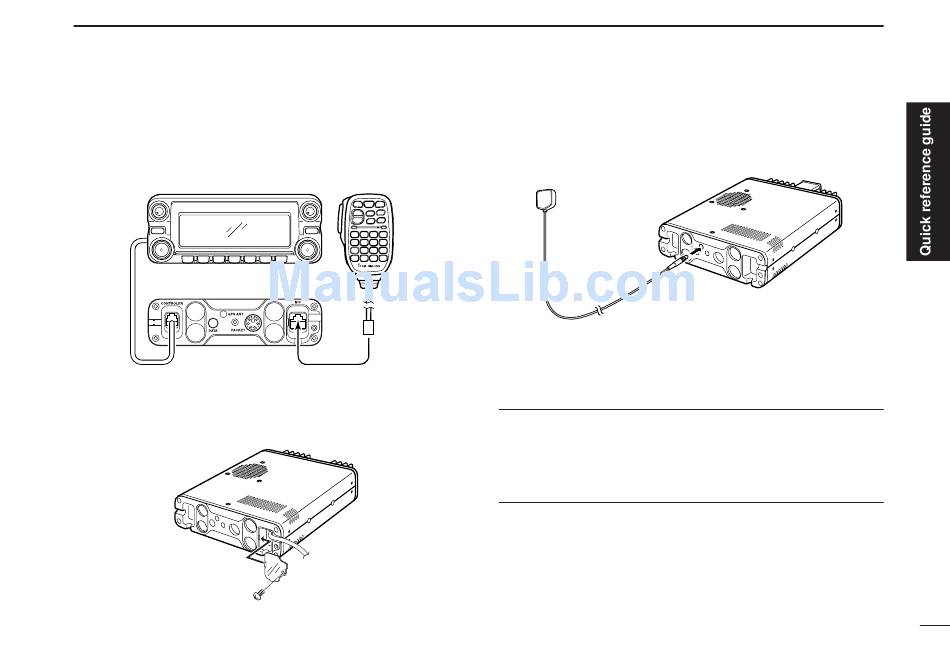

D Microphone connection
A microphone connector is available on the main unit front
panel. Connect the supplied microphone connector as illus-
trated below.
Controller
Main unit
Attach the supplied microphone connector plate after the mi-
crophone connection, otherwise the controller will separate
from the main unit when the microphone cable is pulled dur-
ing single body installation.
D Optional GPS antenna connection
When the optional UT-123 is installed, the GPS antenna sup-
plied with the UT-123 can be connected.
Connect the GPS antenna as below.
Microphone
Mount the GPS antenna onto a convenient flat surface. The
GPS antenna includes magnet mount base, therefore, the an-
tenna can be mounted onto a metal roof/wall, etc.
NOTE
When the GPS antenna is connected, only remote installa-
tion is allowed.
The GPS antenna is not weather-proof construction, there-
fore, NEVER install the antenna in outdoor.
QUICK REFERENCE GUIDE
GPS antenna
to [GPS ANT]
GPS antenna cable length: approx. 5 m (16.4 ft)
