QUICK REFERENCE GUIDE

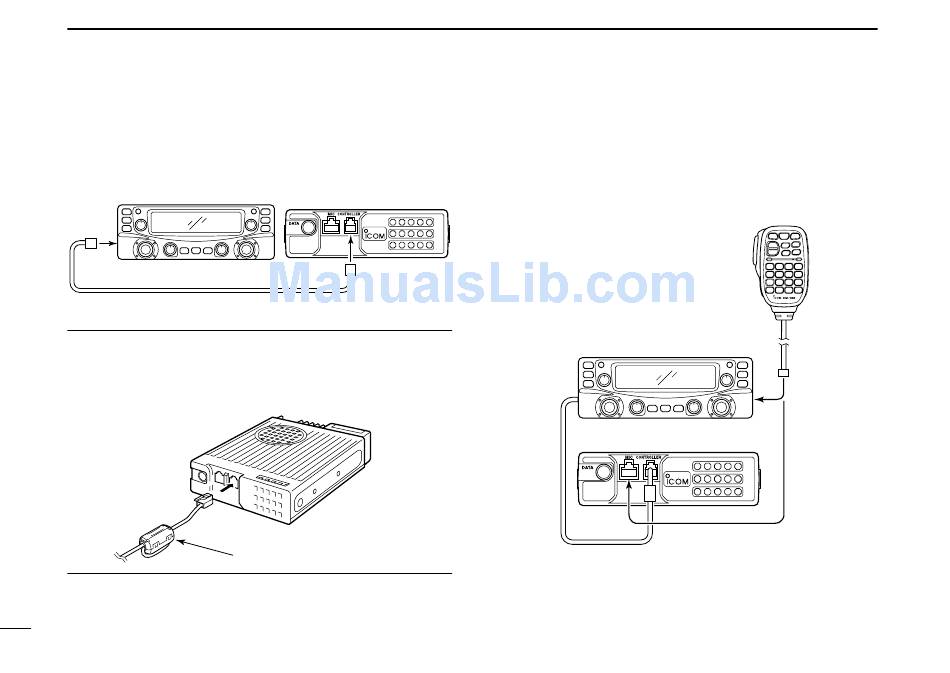

D Separation cable connection
A separation cable (20 cm) is supplied with the IC-2725E.
Connect the controller and the main unit using with the sepa-
ration cable as follows.
Controller
IMPORTANT!— When using the optional OPC-1155
A ferrite core is supplied within the OPC-1155. Connect the
cable connector with the ferrite core into the main unit [CON-
TROLLER] socket as below.
V
Main unit
Ferrite core
D Microphone connection
Two microphone connectors are available for the IC-2725E—
one is on the controller side panel, and another is on the main
unit front panel.
Connect the supplied microphone to either the desired con-
nector as illustrated below.
Controller
Main unit
