optional EX-1759 and HM-90
I Connection
Wireless remote control is available when the following op-
tions are used:
• HM-90
WIRELESS MICROPHONE
• EX-1759
INFRARED RECEIVER
The BC-96
MICROPHONE HOLDER
for use with the HM-90, since the HM-90's internal battery re-
quires charging.

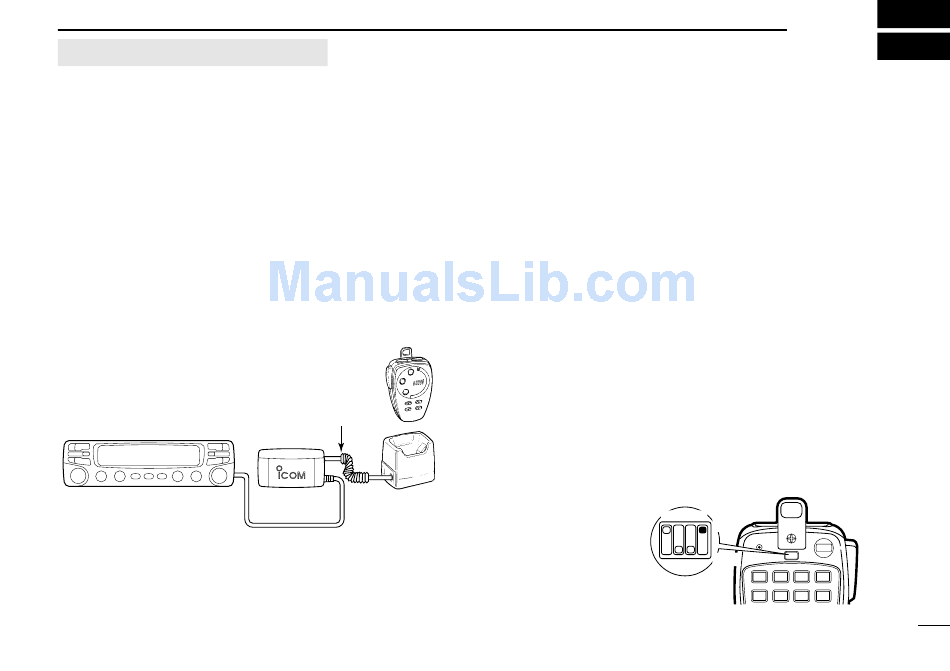

D Recommended connection
IC-2710H
is additionally recommended
HM-90
Use the
microphone's
cable
EX-1759
BC-96
WIRELESS OPERATION
I HM-90
WIRELESS MICROPHONE
The HM-90's internal battery should be charged when the mi-
crophone is not being held.
Charging period: 1.5 hrs. with timer
(or 8 hrs. when battery is exhausted)
Operating period: 12 hrs (Operation : standby= 1 : 4)
D Charging method
Choose a method from one of the following:
• Connect the cable from the HM-90 to the EX-1759.
• Connect the BC-96 and EX-1759; then put the HM-90 into
the BC-96 (refer to the diagram at left).
• Use the CP-1
CIGARETTE LIGHTER CABLE
BC-96 and cigarette lighter socket.
D Turning the wireless remote ON/OFF
When you use the HM-90 as a wired microphone, turn OFF
the wireless remote control circuit if desired.
The diagram shows that
the wireless remote con-
trol function is turned
ON.
16
to connect the
Dip switch
1 2 3 4
ON
LOCK
OFF
AFC
AFC-OFF
PTT-M
MW
CALL
MR
VFO
CLR
1
2
3
A
PGR
C-SQL
DTMF
D-OFF
HIGH
MID
LOW
SET
4
5
6
B
66
