I Sub band access
This function allows you to change sub band settings such as
duplex settings, especially useful from the microphone, during
transmission standby on the main band.
It's easy to access the sub band and return to the main band
with the band switch.
➀
Push and hold the sub band's tuning dial until "^" ap-
pears as shown below.
• If the [PTT] is pushed at this time, transmit is on the main band.
• If the main band's tuning dial is mistakenly pushed and held, the
para-watch function is activated. In this case, push the main
band's tuning dial for 1 sec. and repeat ➀ again. (p. 24)
➁
Activate functions such as duplex setting, subaudible
tones, etc.
➂
To exit sub band access, push the main band's tuning dial.
• To switch from the sub band to the main band, push the sub
band's tuning dial.
• Pushing and holding the sub band's tuning dial until "
appears also exits sub band access.
"^" appears
^
" dis-

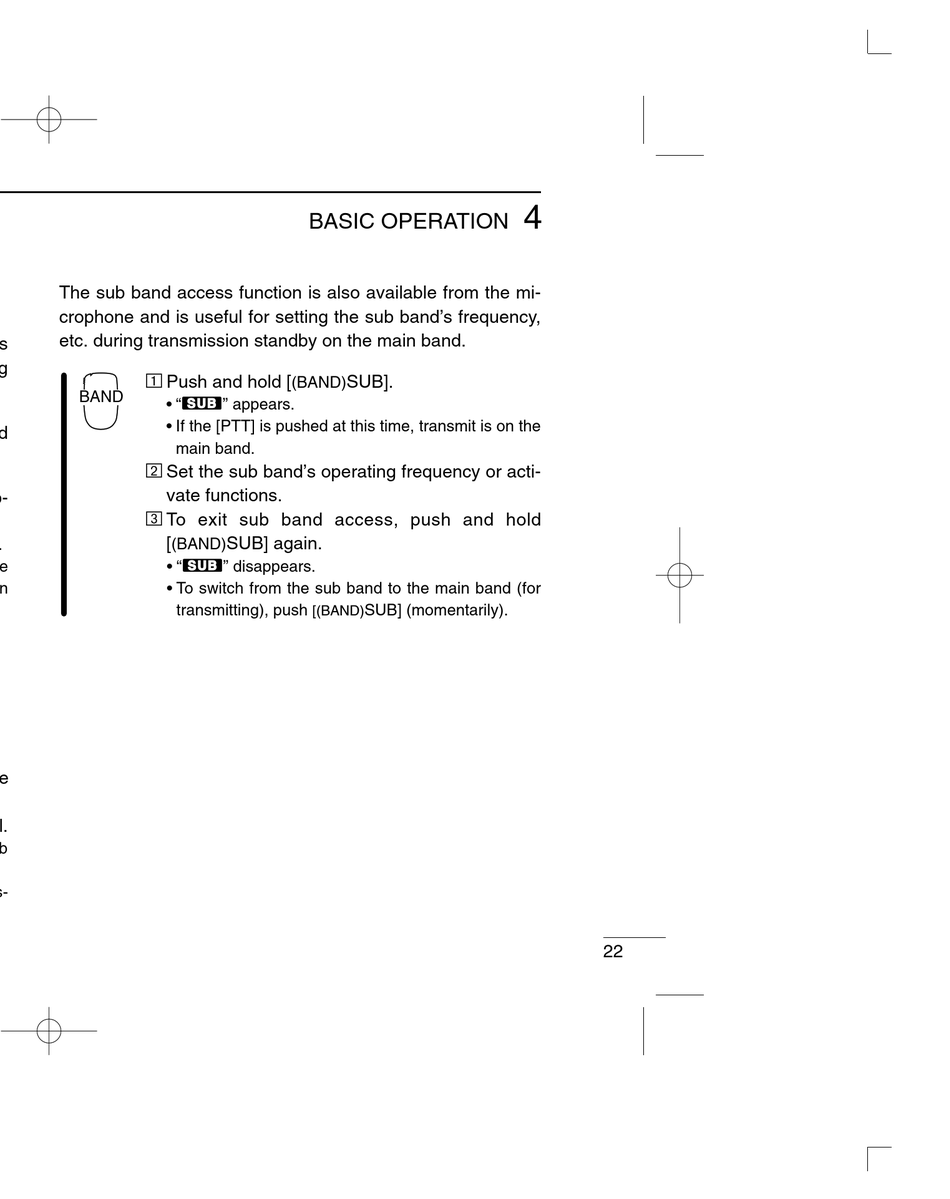

The sub band access function is also available from the mi-
crophone and is useful for setting the sub band's frequency,
etc. during transmission standby on the main band.
Ä
Push and hold [
BAND
• "^" appears.
• If the [PTT] is pushed at this time, transmit is on the
main band.
Å
Set the sub band's operating frequency or acti-
vate functions.
Ç
To exit sub band access, push and hold
[
SUB] again.
(BAND)
• "^" disappears.
• To switch from the sub band to the main band (for
transmitting), push
BASIC OPERATION
SUB].
(BAND)
SUB] (momentarily).
[(BAND)
4
22
