D Waiting for a call from a speciﬁc station

➀

Push the desired band's tuning dial.

➁

Set the operating frequency.

➂

Push [DTMF] to turn the pager function ON.

• "P" appears in place of the 100 MHz digit.

• An optional tone squelch can be used together with the pager

function, although the pocket beep cannot be used. (p. 54)

➃

Wait for a call.

• When receiving a call, the other parties' ID or group code ap-

pears; "S" and the channel number blink as shown on the next

page.

• DO NOT push numeral keys on the microphone while a 3-digit

code is indicated, or code channel contents are changed.

➄

Push [PTT] to send an answer back call and display the

operating frequency.

➅

Push [DTMF] once to select the code squelch system or 2

times (or 3 times for U.S.A. version) to select the non-se-

lective calling system.

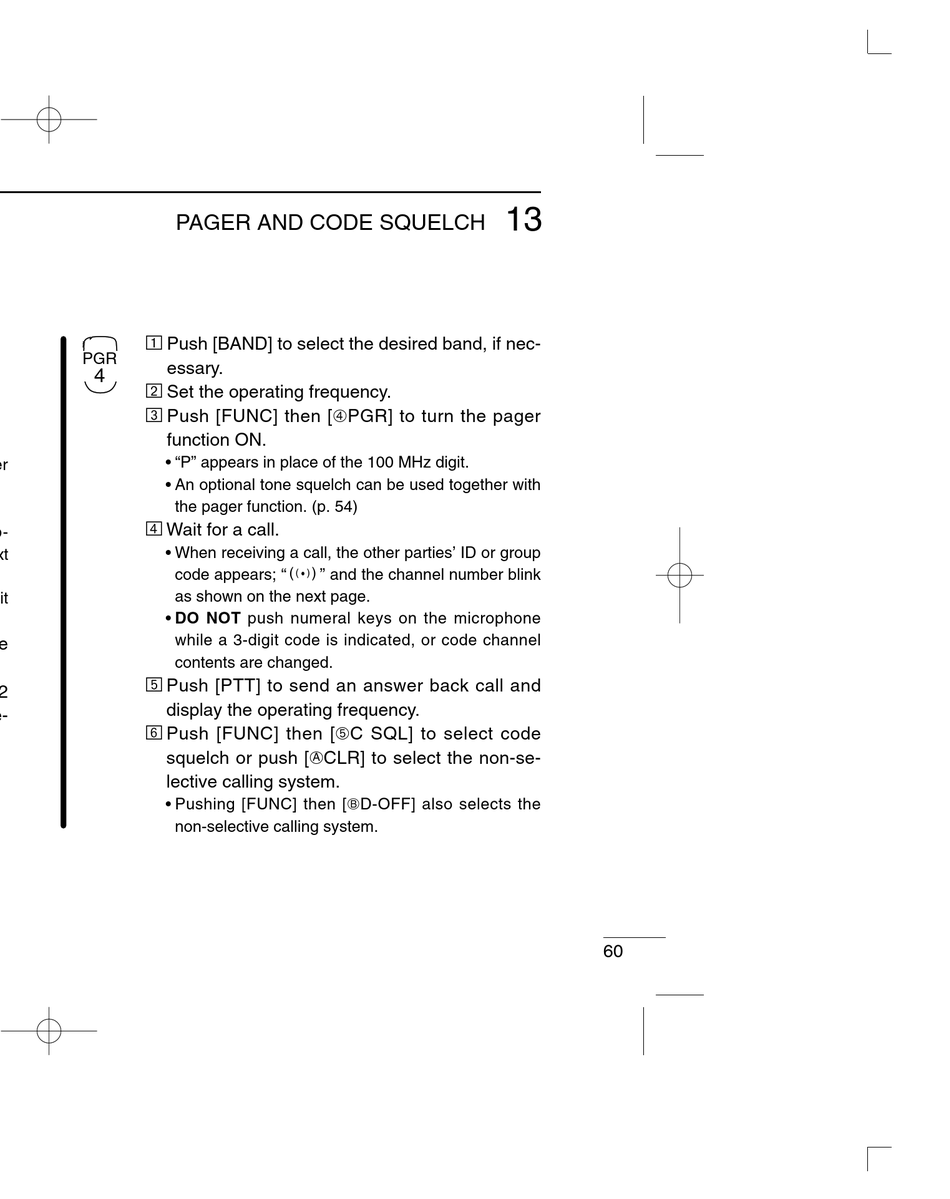

PAGER AND CODE SQUELCH

Push [BAND] to select the desired band, if nec-

PGR

essary.

Set the operating frequency.

Push [FUNC] then [➃PGR] to turn the pager

function ON.

• "P" appears in place of the 100 MHz digit.

• An optional tone squelch can be used together with

the pager function. (p. 54)

Wait for a call.

• When receiving a call, the other parties' ID or group

code appears; "S" and the channel number blink

as shown on the next page.

• DO NOT push numeral keys on the microphone

while a 3-digit code is indicated, or code channel

contents are changed.

Push [PTT] to send an answer back call and

display the operating frequency.

Push [FUNC] then [➄C SQL] to select code

squelch or push [ECLR] to select the non-se-

lective calling system.

• Pushing [FUNC] then [FD-OFF] also selects the

non-selective calling system.
