12
POCKET BEEP AND TONE SQUELCH
IPocket beep operation
This function uses subaudible tones for calling and can be
used as a "common pager" to inform you that someone has
called while you were away from the transceiver.
To operate the pocket beep function, an optional UT-104 is
necessary. See p. 65 for installation details.
D Waiting for a call from a specific station
➀
Push the desired band's tuning dial.
➁
Set the operating frequency.
➂
Program the subaudible tone frequency in set mode.
• See p. 29 for programming details.
➃
Push [
T] for 1 sec., 2 times to indicate "T SQLS"
(DTMF)
in the function display.
• Turn OFF the pager or code squelch to activate the pocket beep.
(pgs. 59, 62) The pocket beep cannot be used in combination
with the pager or code squelch.
➄
When a signal with the correct tone is received, the trans-
ceiver emits beep tones and flashes "S".
• Beep tones sound for 30 sec. To stop the beeps manually, push
the tuning dial (or any key).
• "S" flashes coninuously until step ➅ or ➆.
• When receiving another call while "S" is flashing, no beeps sound.
➅
Push [PTT] to answer.
• Tone squelch is automatically selected when transmitting.
➆
Push [
T] for 1 sec. once or twice to cancel the function.
(DTMF)
53

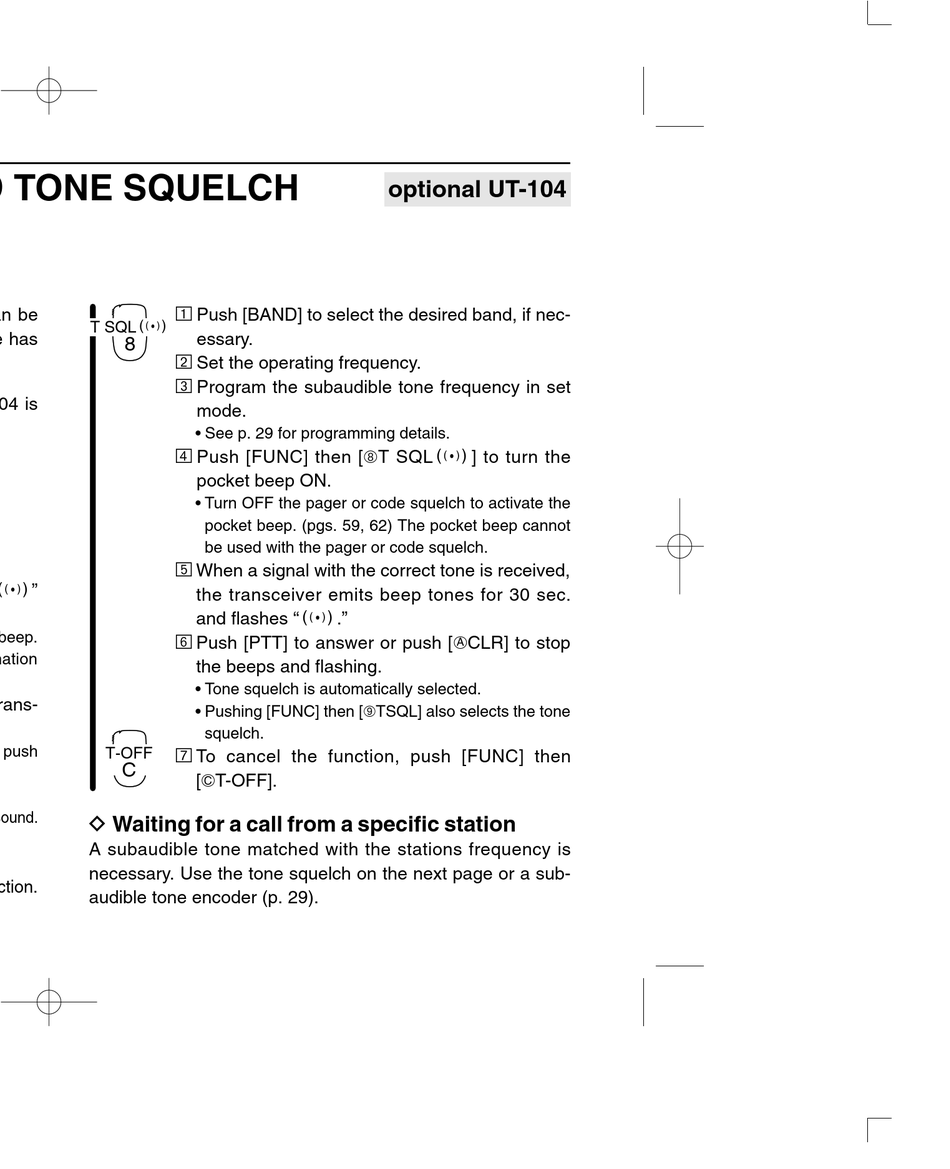

Ä
Push [BAND] to select the desired band, if nec-
T SQLS
essary.
8
Å
Set the operating frequency.
Ç
Program the subaudible tone frequency in set
mode.
• See p. 29 for programming details.
É
Push [FUNC] then [➇T SQLS] to turn the
pocket beep ON.
• Turn OFF the pager or code squelch to activate the
pocket beep. (pgs. 59, 62) The pocket beep cannot
be used with the pager or code squelch.
Ñ
When a signal with the correct tone is received,
the transceiver emits beep tones for 30 sec.
and flashes "S."
Ö
Push [PTT] to answer or push [ECLR] to stop
the beeps and flashing.
• Tone squelch is automatically selected.
• Pushing [FUNC] then [➈TSQL] also selects the tone
squelch.
Ü
T-OFF
To cancel the function, push [FUNC] then
C
[GT-OFF].
D Waiting for a call from a specific station
A subaudible tone matched with the stations frequency is
necessary. Use the tone squelch on the next page or a sub-
audible tone encoder (p. 29).
optional UT-104
