PAGER AND CODE SQUELCH

I Pager operation

D Calling a speciﬁc station

➀

Push the desired band's tuning dial.

➁

Set the operating frequency.

➂

Push [DTMF] 2 times to turn the pager function ON.

• "P" appears in place of the 100 MHz digit.

• An optional tone squelch can be used together with the pager

function, although the pocket beep cannot be used. (p. 54)

➃

Select the desired code channel:

➥ Push [SET].

➥ Rotate the selected band's tuning dial to select the code chan-

nel.

➥ Push the selected band's tuning dial to exit the setting display.

➄

Push [PTT] to transmit the pager code.

➅

Wait for an answer back.

• When the transceiver receives an answer back code, the func-

tion display shows the other parties' ID or group code and beeps.

(p. 60)

➆

After confirming a connection, push the selected band's

tuning dial to display the operating frequency.

• DO NOT push numeral keys on the microphone while a 3-digit

code is indicated, or code channel contents are changed.

➇

Push [DTMF] once to select code squelch or 2 times (or 3

times for U.S.A. version) to select the non-selective calling

system.

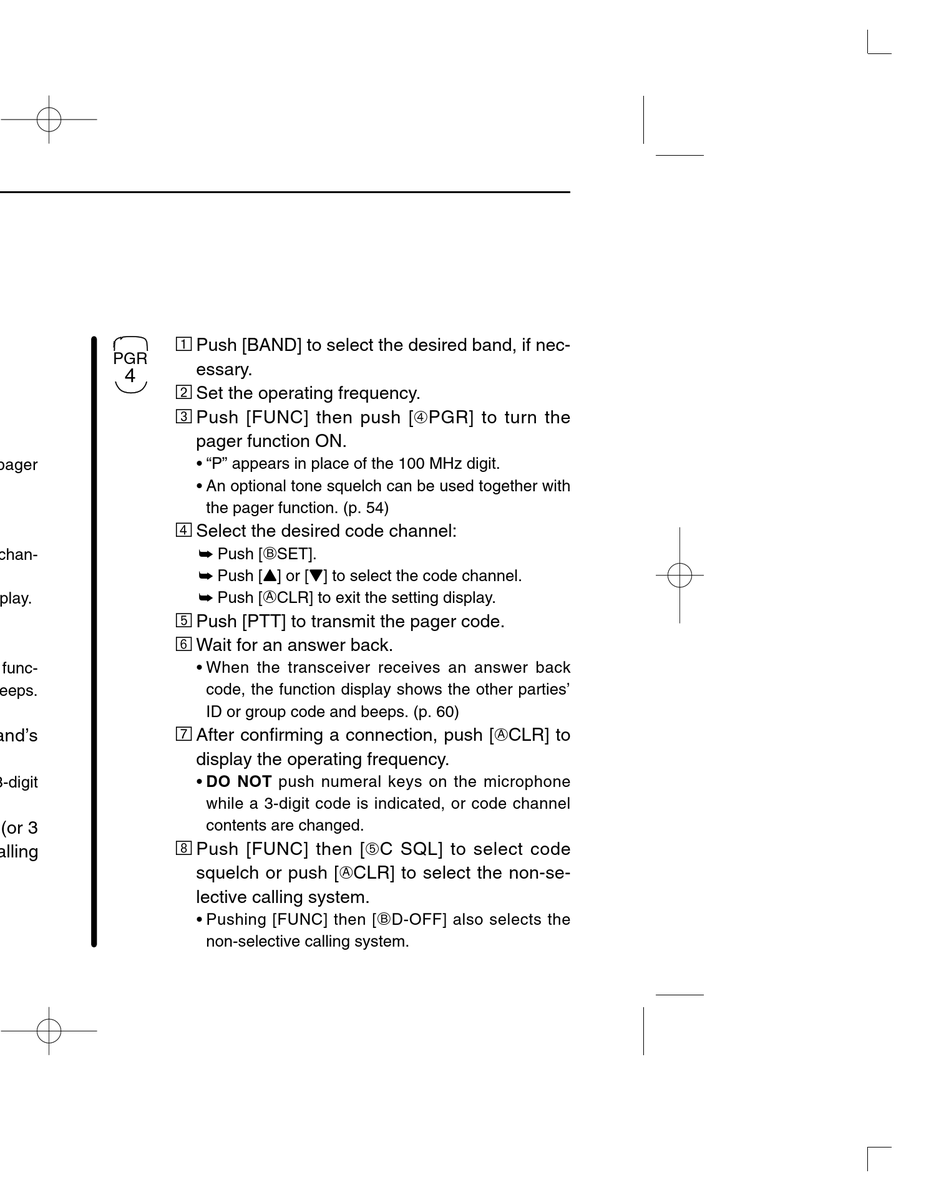

Push [BAND] to select the desired band, if nec-

PGR

essary.

Set the operating frequency.

Push [FUNC] then push [➃PGR] to turn the

pager function ON.

• "P" appears in place of the 100 MHz digit.

• An optional tone squelch can be used together with

the pager function. (p. 54)

Select the desired code channel:

➥ Push [

SET].

➥ Push [Y] or [Z] to select the code channel.

➥ Push [

CLR] to exit the setting display.

Push [PTT] to transmit the pager code.

Wait for an answer back.

• When the transceiver receives an answer back

code, the function display shows the other parties'

ID or group code and beeps. (p. 60)

After conﬁrming a connection, push [ECLR] to

display the operating frequency.

• DO NOT push numeral keys on the microphone

while a 3-digit code is indicated, or code channel

contents are changed.

Push [FUNC] then [➄C SQL] to select code

squelch or push [ECLR] to select the non-se-

lective calling system.

• Pushing [FUNC] then [

non-selective calling system.

D-OFF] also selects the
