I Tone squelch operation

The tone squelch opens only when receiving a signal with the

same pre-programmed subaudible tone. This function can be

activated on both bands with separate tone frequencies si-

multaneously. To operate the tone squelch function, an op-

tional UT-104 is necessary.

➀

Push the desired band's tuning dial.

➁

Set the operating frequency.

➂

Program the subaudible tone frequency in set mode.

• See p. 29 for programming details.

➃

Push [

T] for 1 sec., several times until "T SQL" ap-

(DTMF)

pears in the function display.

• The pager or code squelch can be used together with the tone

squelch. (p. 62)

➄

When the received signal includes the correct tone, the

squelch opens and the signal can be heard.

• When the received signal includes an incorrect tone, the squelch

does not open. However, the S/RF indicator shows the received

signal strength.

• To open the accessed band's squelch manually, push the ac-

cessed band's [MONI].

➅

Operate the transceiver in the normal way (push [PTT] to

transmit; release [PTT] to receive).

➆

To cancel the tone squelch, push [

• "T SQL" disappears from the function display.

T] for 1 sec.

(DTMF)

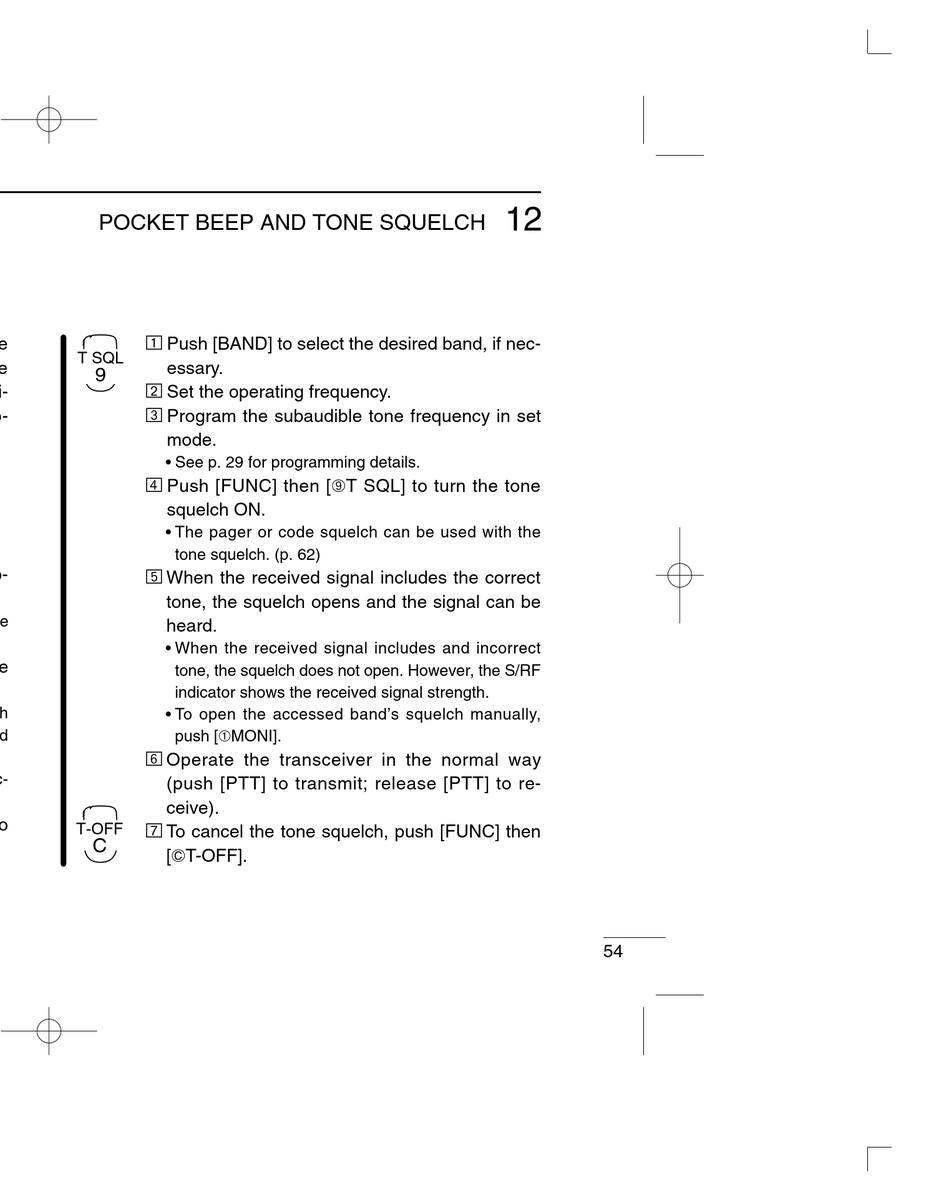

POCKET BEEP AND TONE SQUELCH

Push [BAND] to select the desired band, if nec-

T SQL

essary.

Set the operating frequency.

Program the subaudible tone frequency in set

mode.

• See p. 29 for programming details.

Push [FUNC] then [➈T SQL] to turn the tone

squelch ON.

• The pager or code squelch can be used with the

tone squelch. (p. 62)

When the received signal includes the correct

tone, the squelch opens and the signal can be

heard.

• When the received signal includes and incorrect

tone, the squelch does not open. However, the S/RF

indicator shows the received signal strength.

• To open the accessed band's squelch manually,

push [➀MONI].

Operate the transceiver in the normal way

(push [PTT] to transmit; release [PTT] to re-

ceive).

T-OFF

To cancel the tone squelch, push [FUNC] then

[GT-OFF].
