Setting A Frequency; I Preparation - Icom IC-2710H Instruction Manual

3

SETTING A FREQUENCY

I Preparation

D Turning power ON
Push [POWER] for 1 sec. to turn power ON.
Push [POWER] for 1 sec.
D Main band
The IC-2710H can receive 144 MHz and 430(440) MHz band
signals simultaneously. Function access or frequency
changes affect the main band only. In addition, signals can
be transmitted on the main band only. Set the desired band
as the main band.
Push the desired band's tuning dial to select the main band.
• "Q" indicates the main band.
Push [BAND] to toggle the main band selection
BAND
between the 144 and 430(440) MHz bands.
15

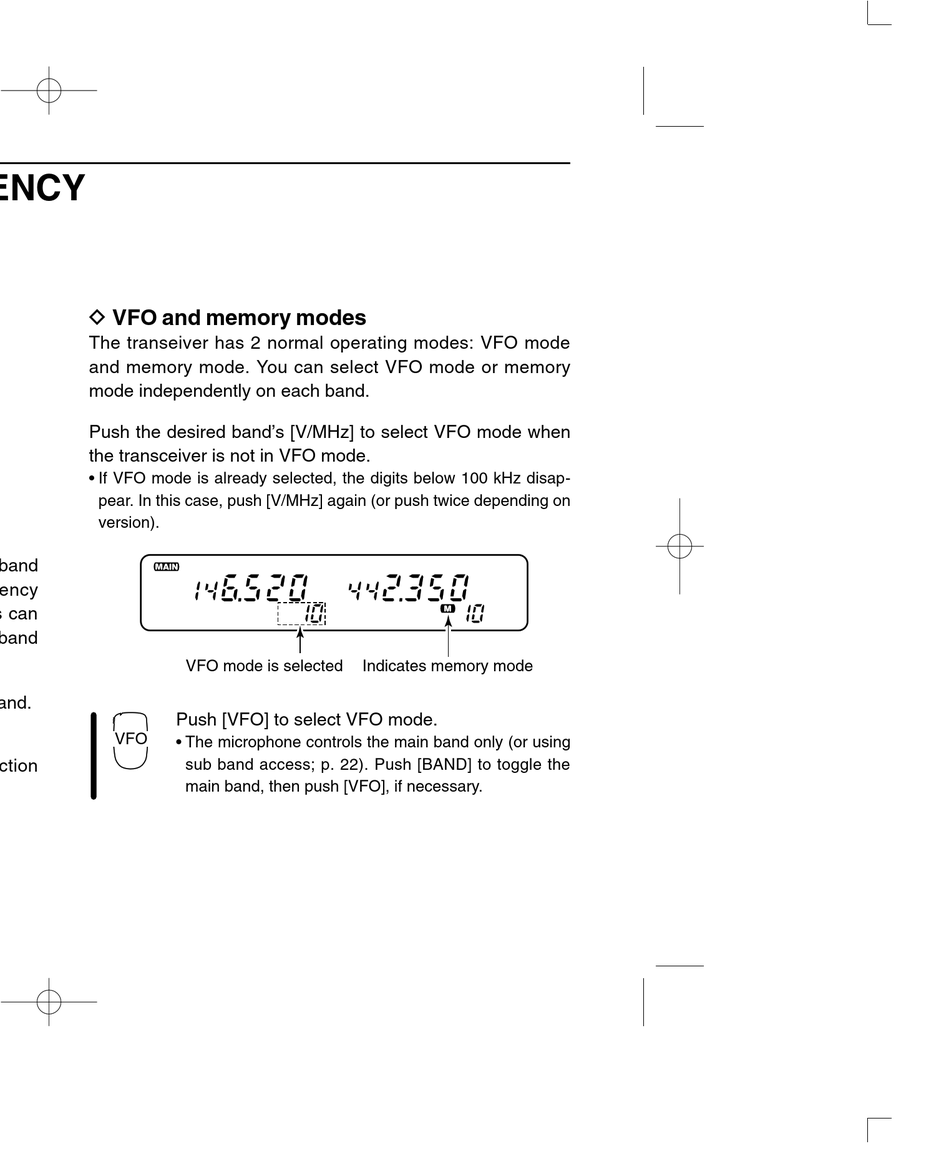

D VFO and memory modes
The transeiver has 2 normal operating modes: VFO mode
and memory mode. You can select VFO mode or memory
mode independently on each band.
Push the desired band's [V/MHz] to select VFO mode when
the transceiver is not in VFO mode.
• If VFO mode is already selected, the digits below 100 kHz disap-
pear. In this case, push [V/MHz] again (or push twice depending on
version).
VFO mode is selected
Push [VFO] to select VFO mode.
VFO
• The microphone controls the main band only (or using
sub band access; p. 22). Push [BAND] to toggle the
main band, then push [VFO], if necessary.
Indicates memory mode
