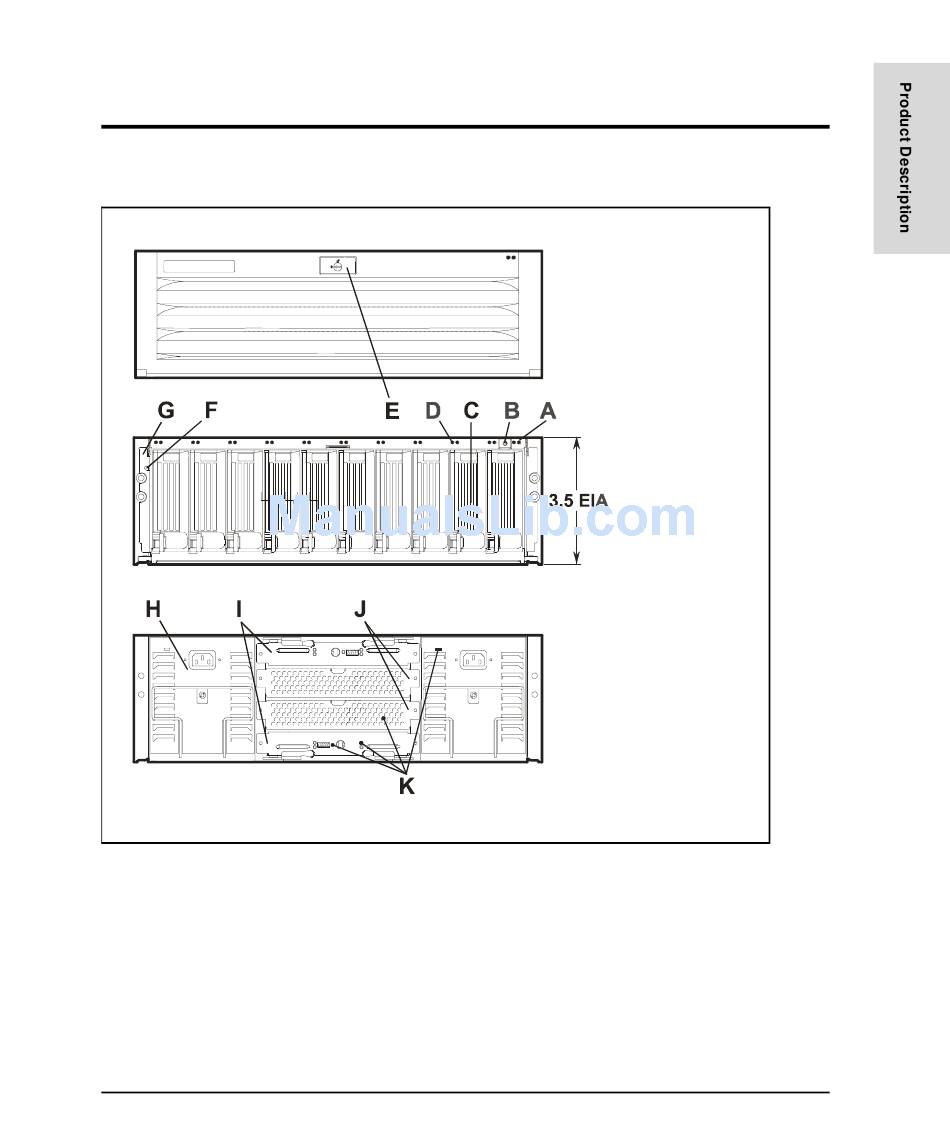

Figure 3
Disk Enclosure Front and Back View
Power Switch
The power switch (B in
enclosure components. Power to the power supplies is controlled by the power cords and
the AC source.
Figure
3) interrupts power from the power supplies to the disk
A system LEDs
B power button
C disk module
D disk module LEDs
E door lock
F ESD plug
G mounting ear
H power supply
I BCCs
J fans
K component LEDs
Disk Enclosure Components
23
