Power Supply Module Removal/Replacement

"
Hot Swappable Component!
A power supply should be replaced as quickly as possible to avoid the possibility of the
remaining supply failing and shutting down the disk array.
Removing the Power Supply Module
1. Turn off the power switch and unplug the power cord from the failed power supply
module. See Figure
2. Lift up on the pull ring to release the latch. See
3. Slide the supply out of the enclosure.
Power Switch
A

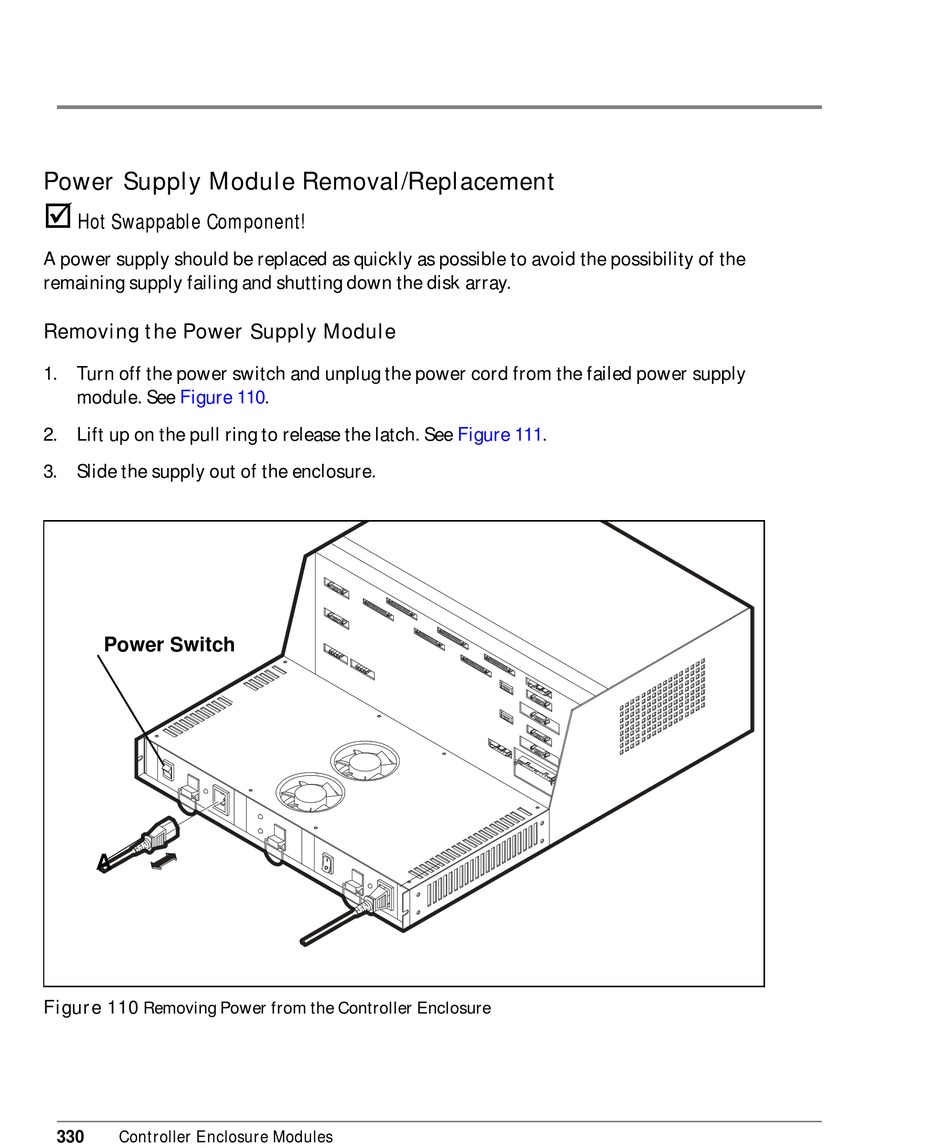

Figure 110
Removing Power from the Controller Enclosure
Controller Enclosure Modules
330
110.
Figure 111.
