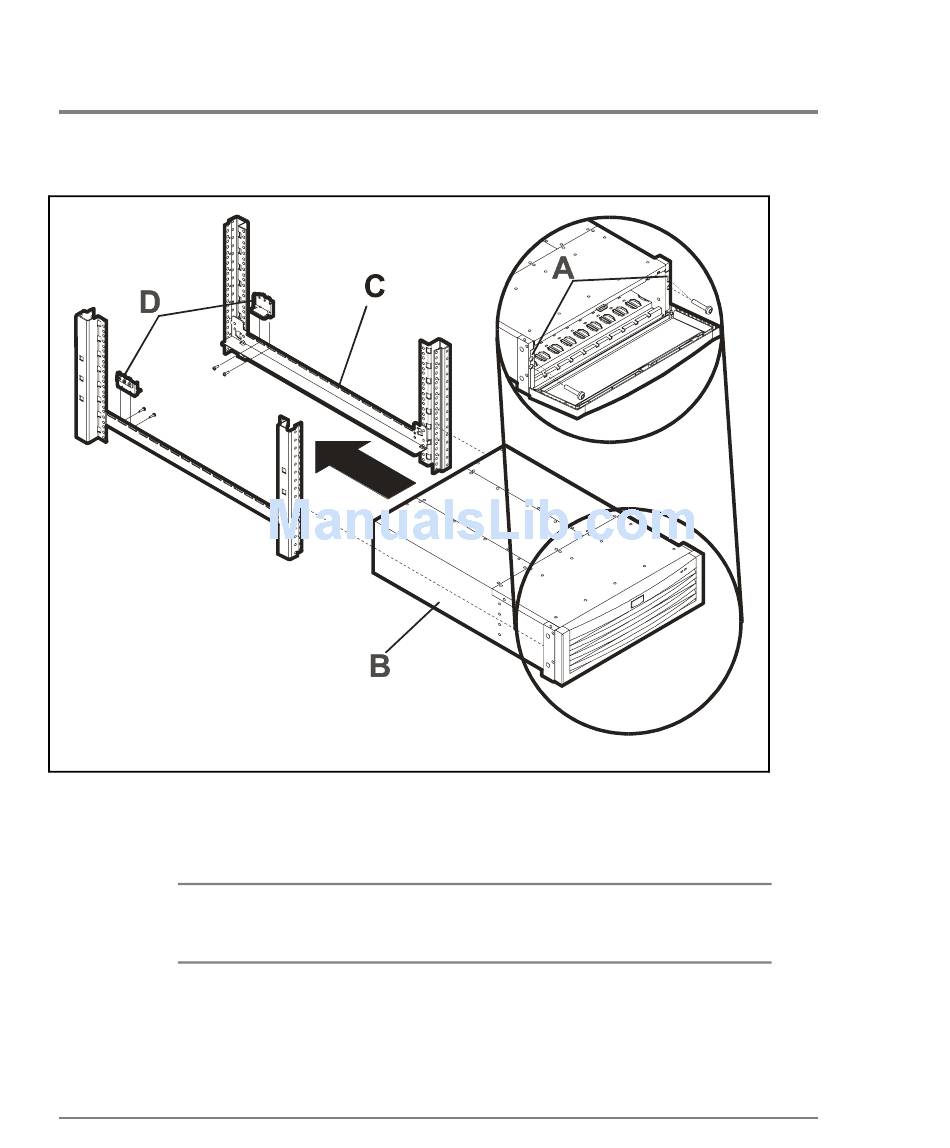

Figure 98
Disk Enclosure Removal/Replacement
8.
Close and lock the door.
WARNING
The disk enclosure weighs approximately 80 lbs. (36kgs.) without
disks. If you choose to remove the disk enclosure from the rack, use
two people or a lift device.
9.
Push the disk enclosure forward then, using two people, lift it out of the rack. If you are
removing the front door, you only need to slide the enclosure out of the rack about four
inches.
Internal Disk Enclosure Assemblies
306
