Step 5: Install Disks and Fillers

Touching exposed areas on the disk can cause electrical
C
AUTION
discharge and disable the disk. Be sure you are grounded
and be careful not to touch exposed circuits.
Disks are fragile and ESD sensitive. Dropping one end of the disk two inches is enough to
cause permanent damage. Static electricity can destroy the magnetic properties of
recording surfaces. Grip disks only by their handles (B in
follow strict ESD procedures.
A disk enclosure door
B disk handle
C cam latch
D ESD plug

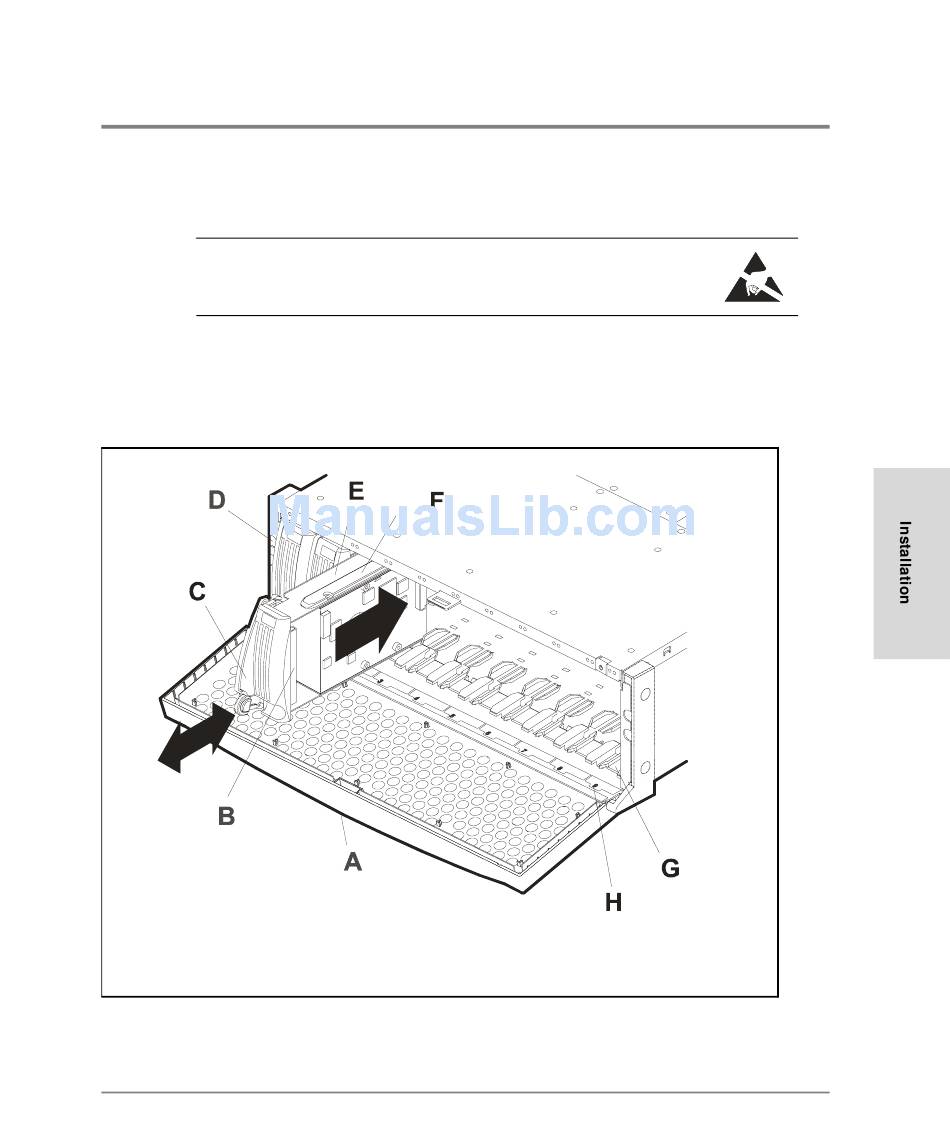

Figure 51
Disk Installation
E disk carrier
F insertion guide
G slot guide
H slot number
Figure 51) and carriers, and
Installing the Disk Enclosures
