Power Supplies

Redundant, hot-swappable 450-watt power supplies convert wide-ranging AC voltage from an
external main to stable DC output and deliver it to the backplane. Each power supply has two
internal blowers, an AC receptacle (A in
an LED (C). Internal control prevents the rear DC connector from becoming energized when
the power supply is removed from the disk enclosure.

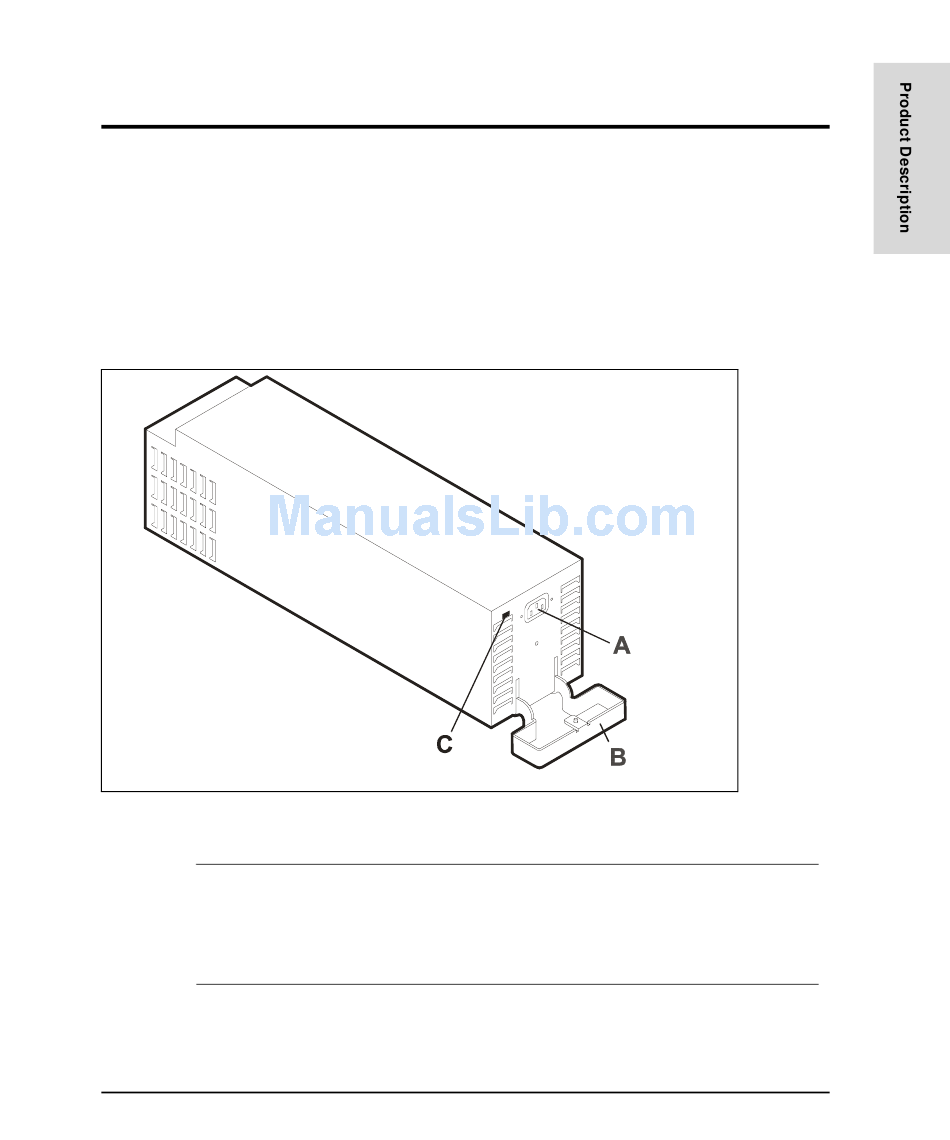

A AC receptacle
B cam handle
C LED
Figure 7
Power Supply
Although it is possible to operate the disk enclosure on one power supply, it is not
Note
recommended. Using only one supply creates a single point of failure. If the power
supply fails, the entire enclosure is inaccessible. To maintain high availability, both
power supplies should be used at all times, and a failed supply should be replaced
as soon as possible.
Figure 7), a cam handle (B) with locking screw, and
NOTE: LED position varies.
