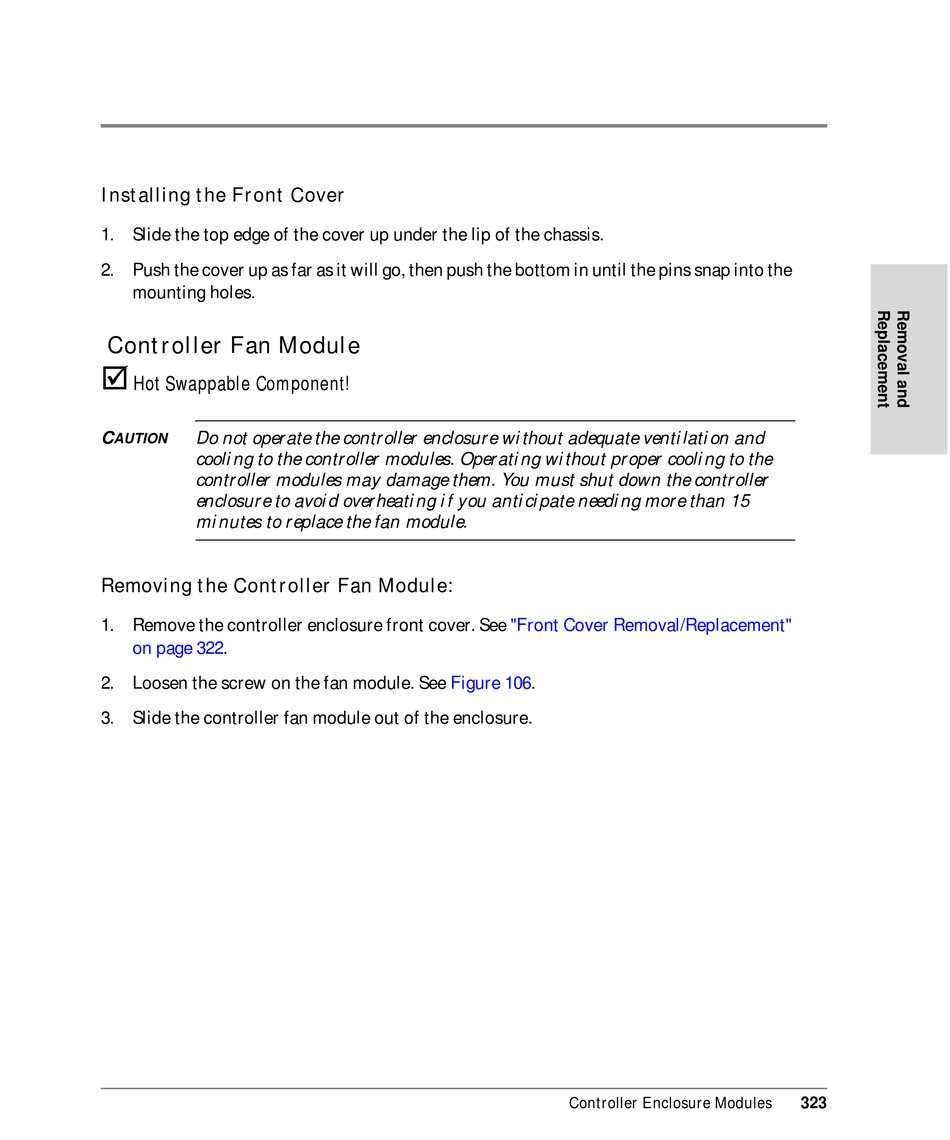

Installing the Front Cover
1.
Slide the top edge of the cover up under the lip of the chassis.
2.
Push the cover up as far as it will go, then push the bottom in until the pins snap into the
mounting holes.
Controller Fan Module
"
Hot Swappable Component!
Do not operate the controller enclosure without adequate ventilation and
C
AUTION
cooling to the controller modules. Operating without proper cooling to the
controller modules may damage them. You must shut down the controller
enclosure to avoid overheating if you anticipate needing more than 15
minutes to replace the fan module.
Removing the Controller Fan Module:
1.
Remove the controller enclosure front cover. See
on page
322.
2.
Loosen the screw on the fan module. See
3.
Slide the controller fan module out of the enclosure.
"Front Cover Removal/Replacement"
Figure
106.
Controller Enclosure Modules
323
