This removal procedure also includes the procedure on the removal and replacement of the
battery harness.

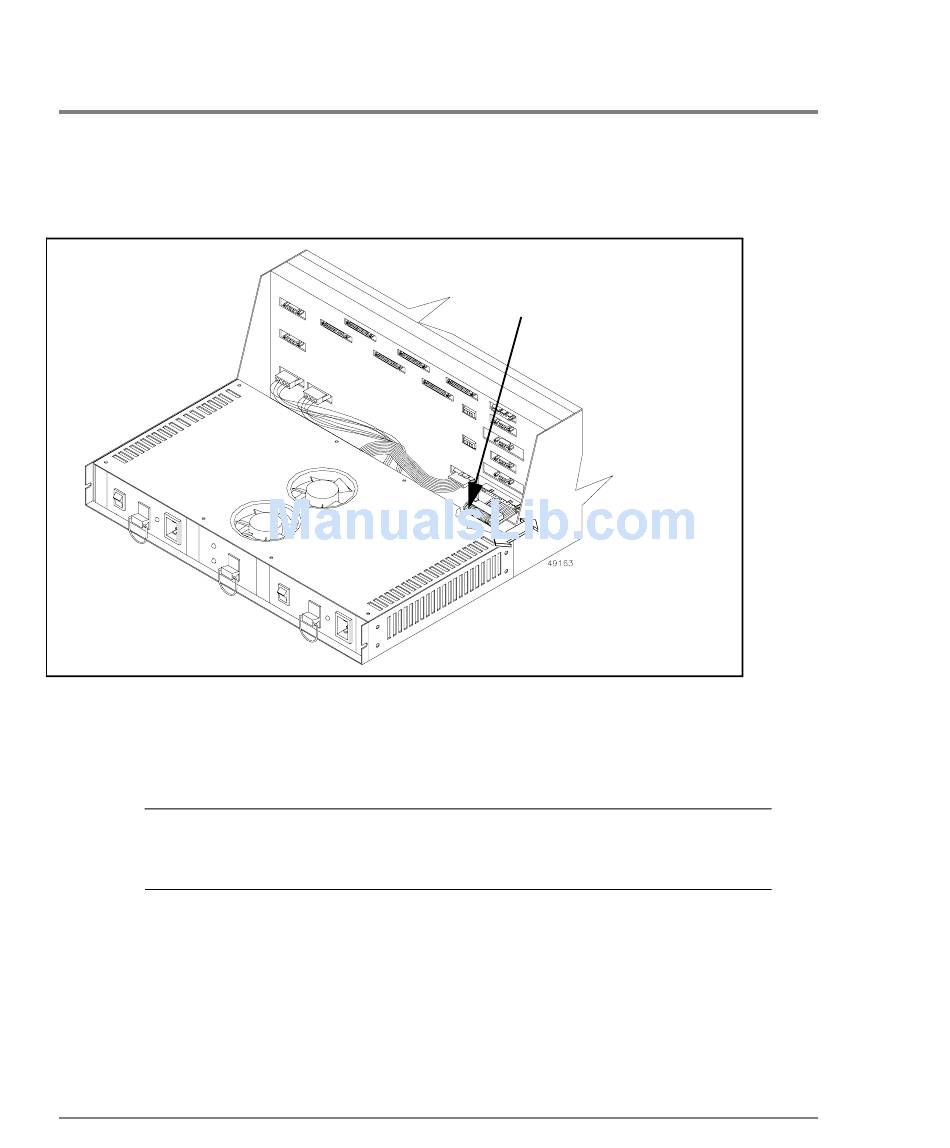

Figure 126
Removing and Installing the Battery Harness
To remove the controller cage/ midplane assembly, or the battery harness, complete the
following steps:
Electrostatic charges can damage sensitive components. Use a grounding
C
AUTION
wrist strap or other antistatic precautions before removing or handling the
components.
1.
Remove the controller enclosure from the rack. See
2.
Remove the harness cover plate. See
3.
Disconnect the three DC power harnesses and the battery harness from the back of the
controller cage/ midplane assembly (this may be easier if performed during step 5)
Internal Controller Enclosure Assemblies
356
Disconnect or
reconnect harness
"Controller Enclosure" on page
"Harness Cover Plate" on page
342.
349.
