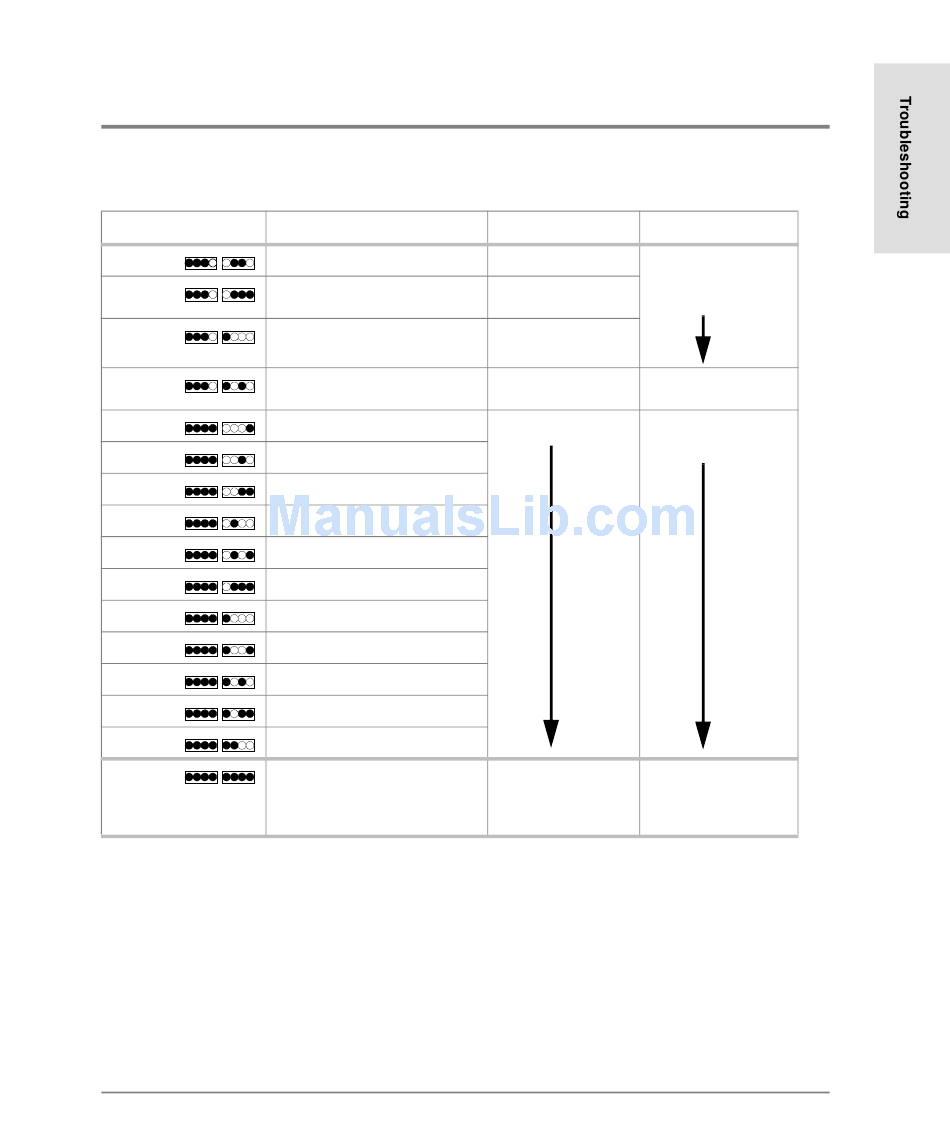

Table 30
Controller Status LEDs codes (cont'd)
Code Description
0xE6 Software load failure
0xE7 Kernel missing, or kernel CRC
mismatch
0xE8 Application Firmware missing, or
Application CRC mismatch
0xEA Swapped controller
0xF1 Processor set-up
0xF2 CDC chip set-up
0xF3 RAID Parity Assist chip set-up
0xF4 Memory Test
0xF5 Load Boot Firmware
0xF7 Clear Boot memory
0xF8 Enable Protected mode
0xF9 Memory test failure
0xFA Exception error
0xFB Start mode determination
0xFC Invoke Boot Firmware
0xFF Hardware reset
Comments Cause / Solution
Firmware file is bad /
Download Firmware
with a good file.
Controller is in wrong
slot.
HW Init. status Controller module /
reseat or replace
Hardware reset is in
progress or there is a
bad controller
module.
