Figure 5-1. Web Page Layout - Lantronix SecureLinx SLC48 User Manual

Icons
Main
Menu
The web page has the following components:
Main Menu: Allows you to select the type of setting to configure.
Note: The SLC displays a customized navigation menu based on the currently logged-in
user's rights.
Port Number Bar: Allows you to select a port and display its settings. The E1 and E2
buttons display the Network – Settings page. The A and B buttons display the status of
the power supplies.
Note: Only ports to which the currently logged-in user has rights are enabled.
Entry Fields and Options: Allow you to enter data and select options for the settings.
Note: For specific instructions on completing the fields on the web pages, see
Chapters 6 through 12.
Apply Button: Apply on each web page makes the changes immediately and saves
them so they will be there when the SLC is rebooted.
Icons: The icons above the Main Menu
SecureLinx SLC User Guide

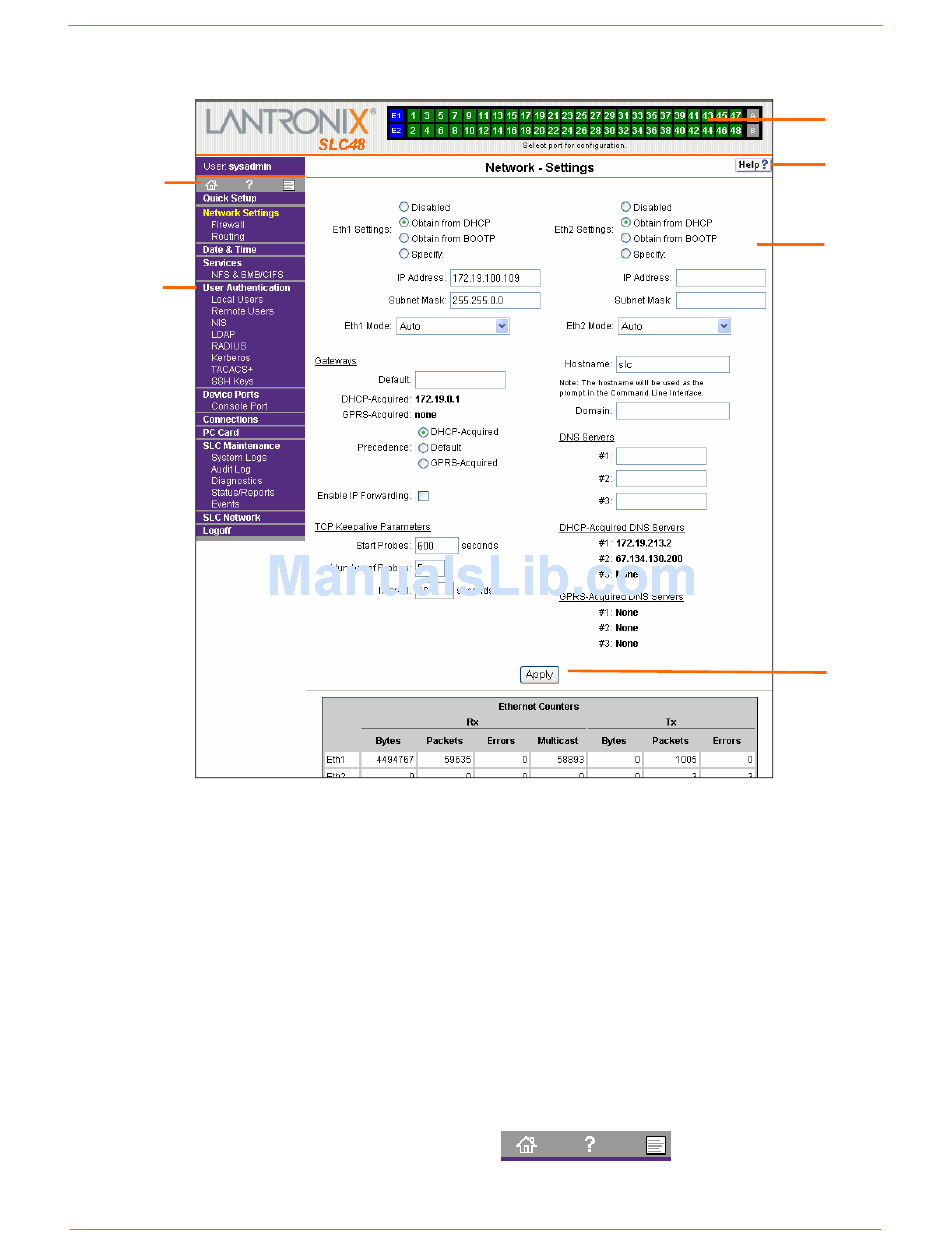

Figure 5-1. Web Page Layout

5: Web and Command Line Interfaces
:
Port Number
Bar
Help Button
Entry Fields
and Options
Apply Button
