Removing the Optical Drive

To perform this procedure, you will first need to remove the front bezel. The steps below
will direct you to the instructions on removing the front bezel at the appropriate location
in the step sequence.
Note: Before performing the procedures in this section, turn off the system and disconnect all
power plugs.
1. Remove the front bezel. For instructions, see
page
2. Locate the optical drive location at the left side of the system. See the following
figure.
3. Push the lever on the optical drive to remove it from the system.
®
Intel Server System SR9000MK4U Product Guide
34.

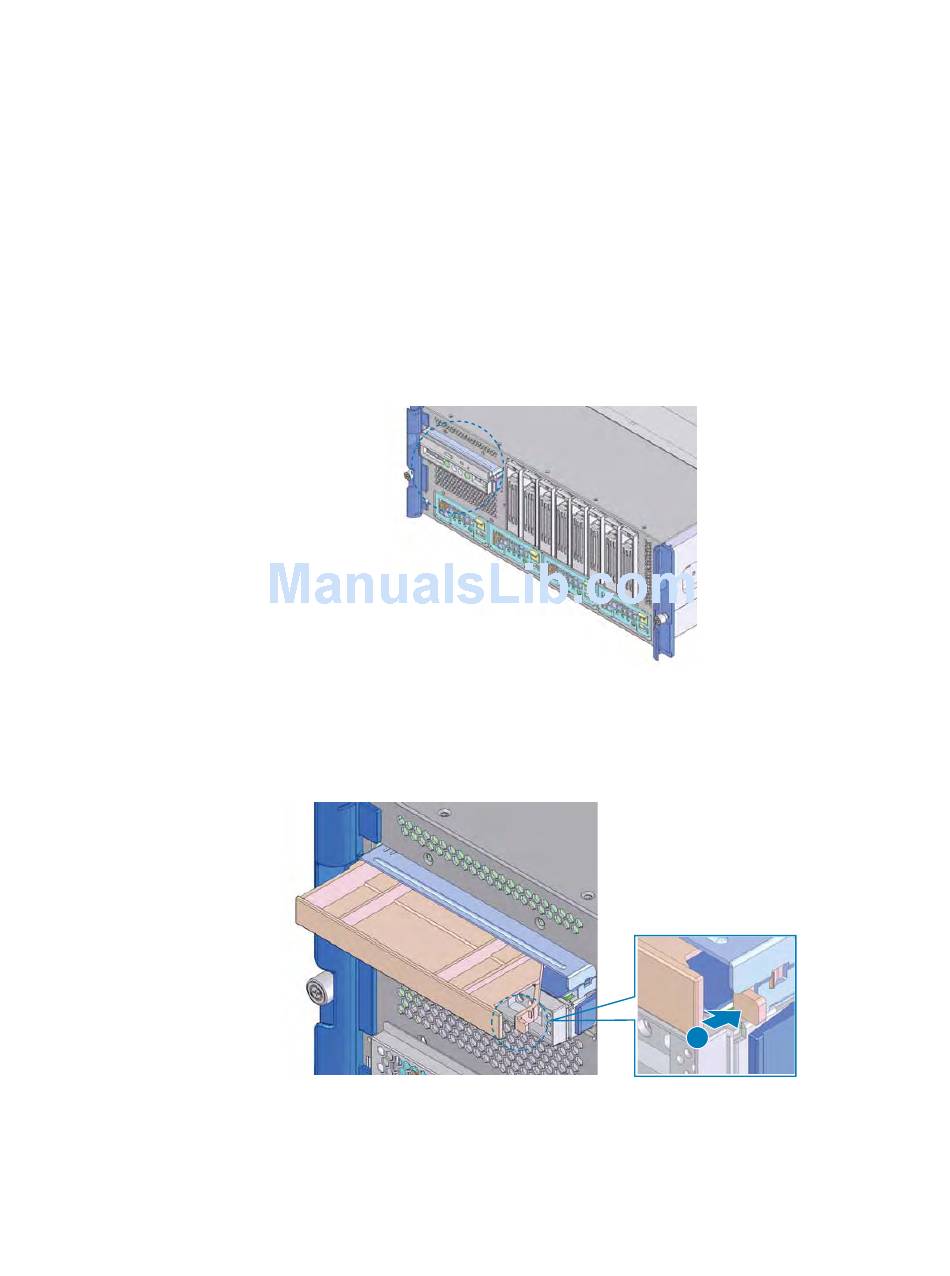

Figure 42. Locating the Optical Drive Installation Position

Figure 43. Removing Optical Drive from Server

"Removing the Front Bezel" on
A
AF001129
53
