Figure 53. Pci Tail Lock; Figure 54. Installing A Pci Card - Intel SR9000MK4U - Server System - 0 MB RAM Product Manual

6. Install the PCI card. See Figure 54.
— For a short-length card, insert the PCI card firmly into the slot.
— For a full-length card: Insert the PCI card into the slot. The end of the card at the
Note: Full-length cards can be installed only into PCI slot 6.
®
Intel Server System SR9000MK4U Product Guide
front side of the chassis must inserted and locked into place in the PCI tail lock.
See Figure 53.

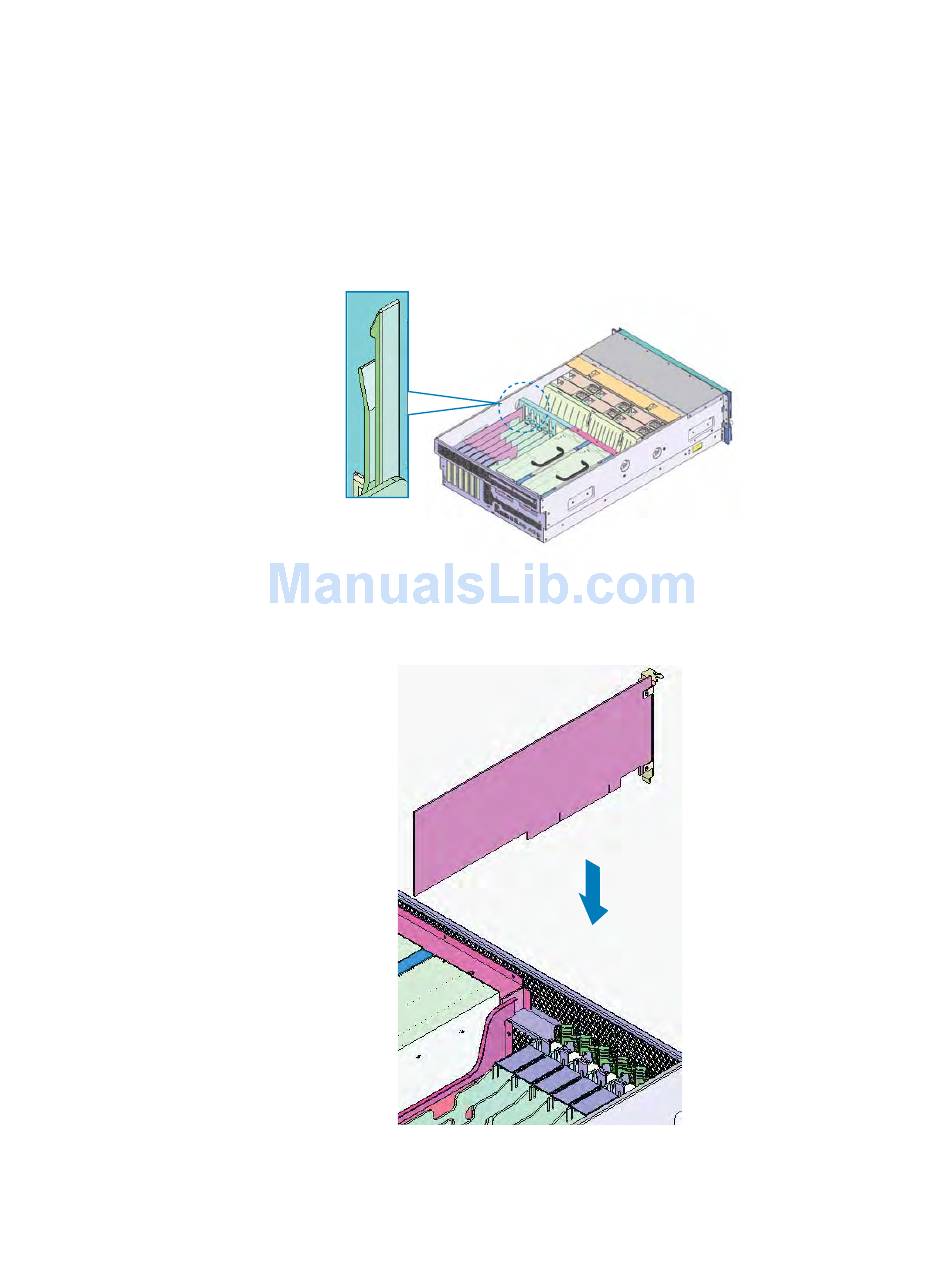

Figure 53. PCI Tail Lock

Figure 54. Installing a PCI Card

AF001136
TP001141
