Memory Box
In memory mirror mode, memory box 0 is paired with memory box 1. Memory box 2 is
paired with memory box 3. When mirroring mode is used, either of the memory boxes
with a pair can be hot-swapped.

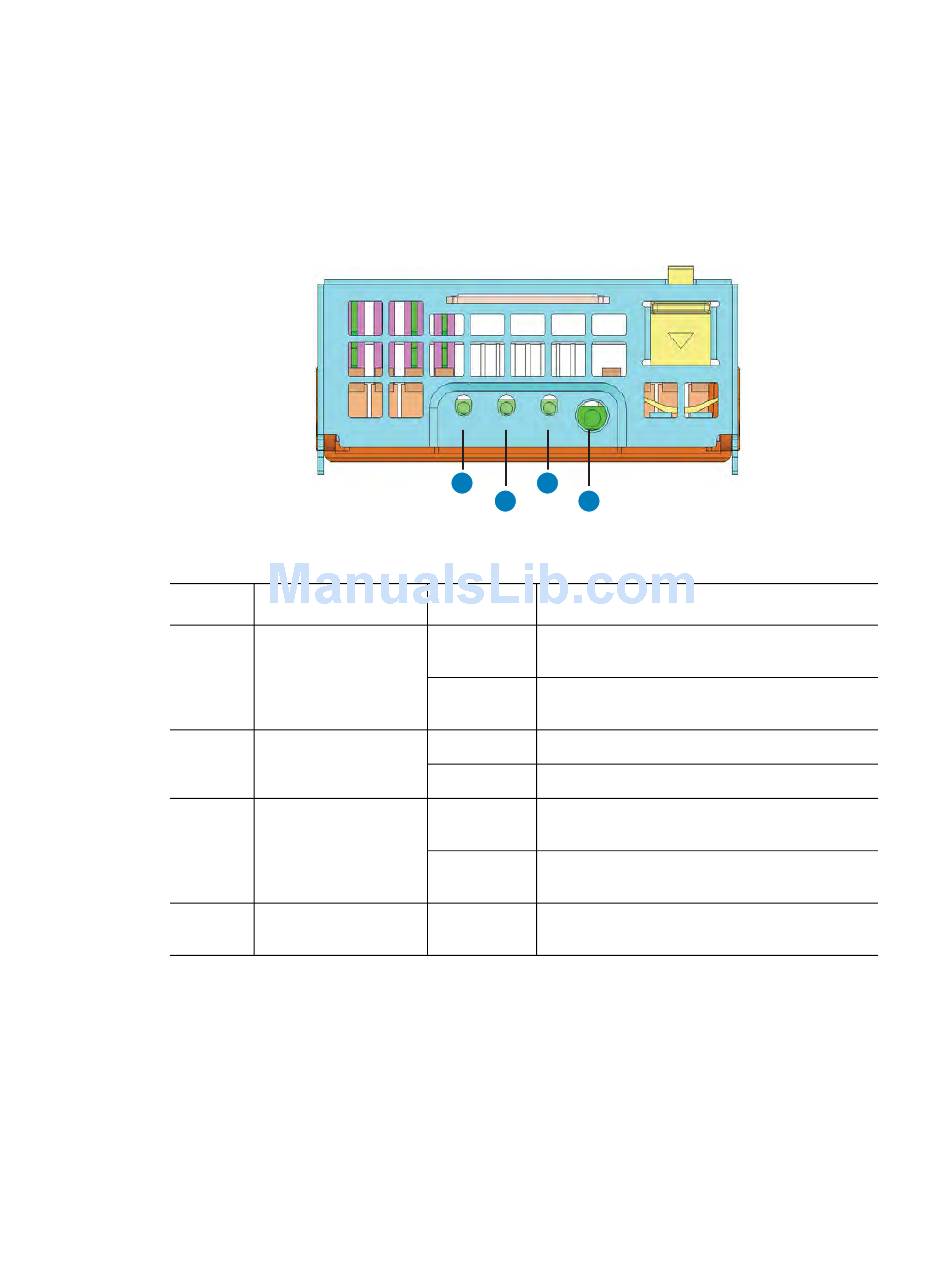

Figure 6 shows the front view of the memory box.
Callout
A
B
C
D
8
LED LED State
Memory Box Mirror Green on
LED
Off
Memory Box Power Green on
LED
Off
Memory Box Orange on
Attention LED
Off
No LED N/A

Figure 6. Memory Box Front View

A C
B D
The memory box is operating in mirror
mode.
The memory box is not operating in mirror
mode.
The memory box is powered on.
The memory box is powered off.
An error has been detected in the memory
box.
No error has been detected on the memory
box or the memory box is powered off.
Hot-swap button. Press this button to initiate
a hot-swap process.
®
Intel Server System SR9000MK4U Product Guide
AF001086
Description
