4. Snap the pin shroud over the processor, verifying that the positioning pins of the pin
shroud align with the notches in the processor.
5. Set the spring clip into place on the processor as shown below. The rounded edge of
the spring clip should be positioned below the pin shroud.
®
Intel Server System SR9000MK4U Product Guide

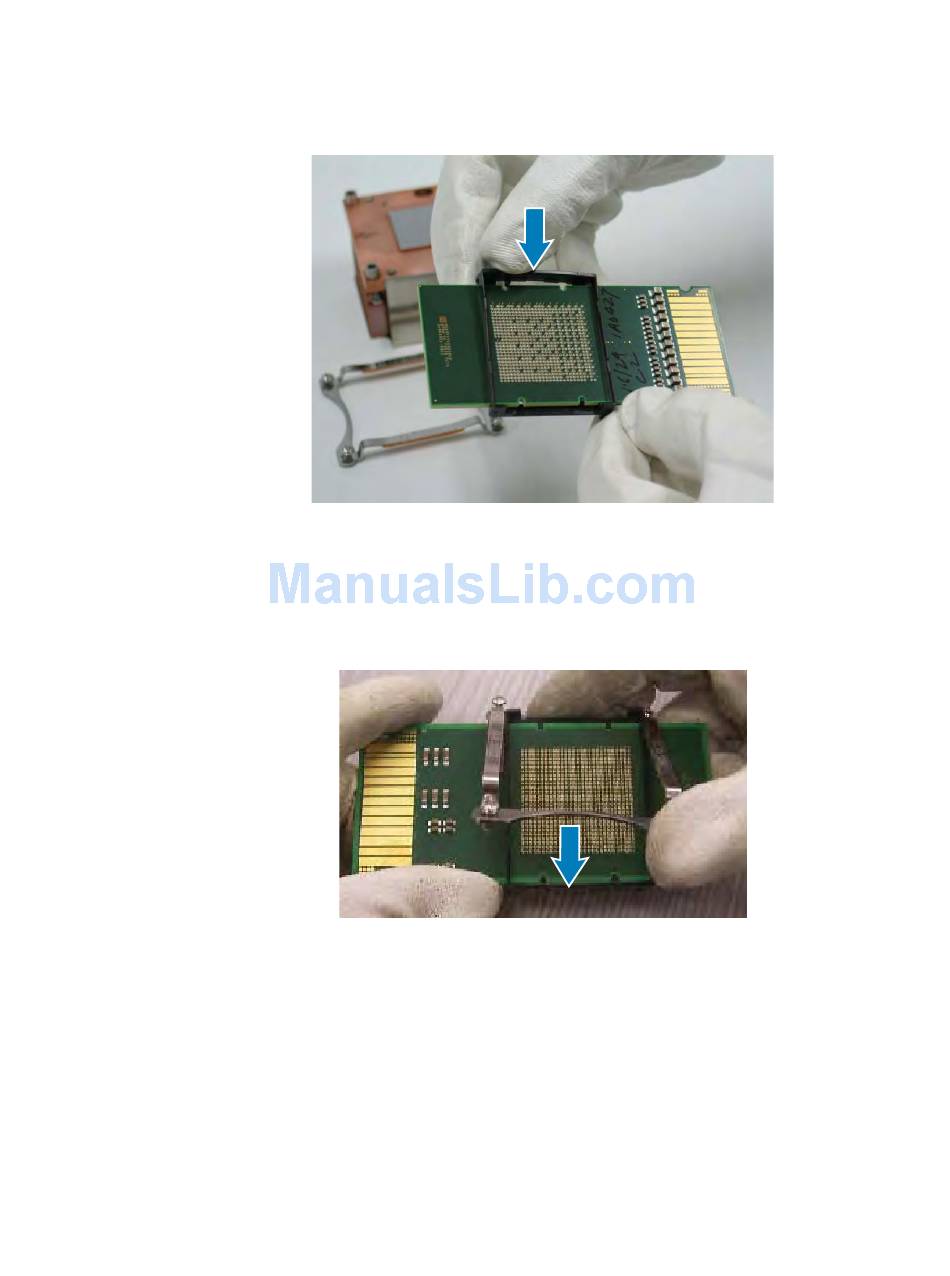

Figure 110. Installing the Pin Shroud over the Processor

Figure 111. Installing the Spring Clip

AF001265
AF001264
115
