Installing the Power Supply Box

These steps assume you have just removed the power supply box, as described in
"Removing the Power Supply Box" on page 76

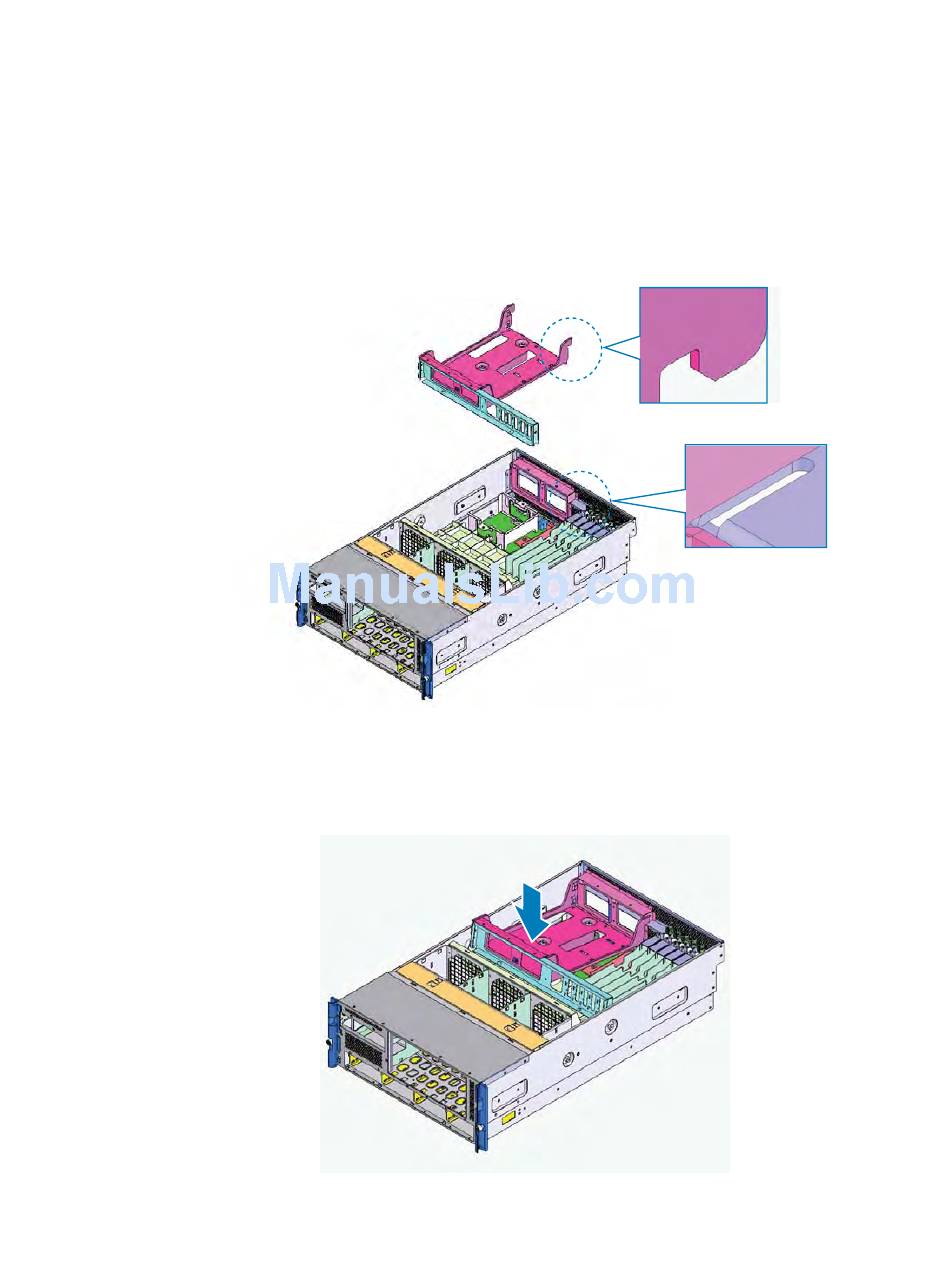

1. Set the rear of the power supply box into the chassis, ensuring that the two slots in
the chassis align with the corresponding hooks on each end of the power supply box
assembly, as shown in the figure below.
2. Press down on the front of the power supply box to set it into place.

Figure 79. Setting the Front of the Power Supply Box into Place

80

Figure 78. Inserting the Rear of Power Supply Box

and your system is partially disassembled.
AF001236
®
Intel Server System SR9000MK4U Product Guide
AF001235
