Processor Configurations

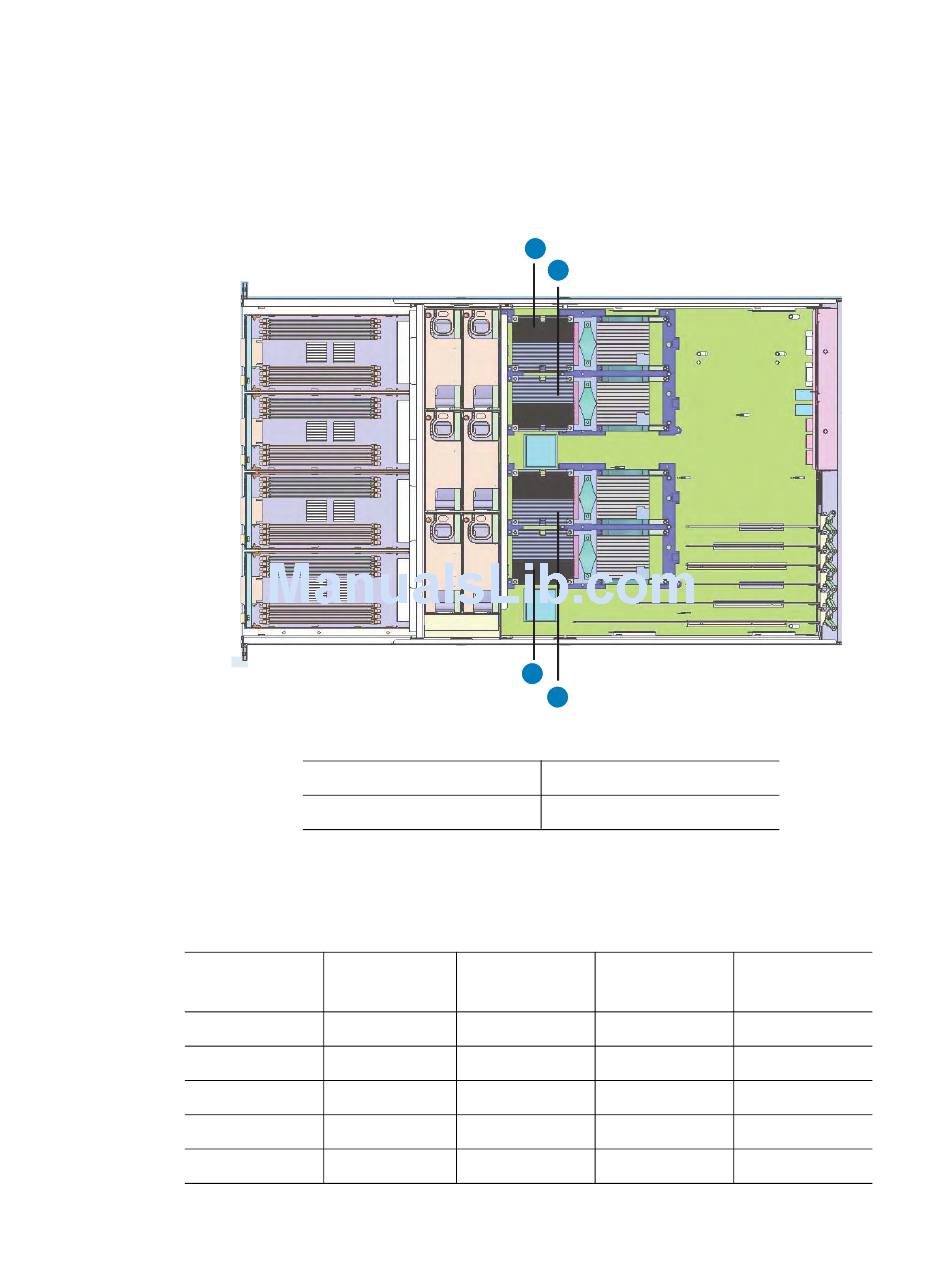

Figure 14 shows the top view of main board, indicating the processor locations. Table 11
shows the allowed processor configurations. Choose your configuration from Table 11
and install each processor in the locations indicated by Figure 14.
Configuration
Number
1
2
3
4
5
®
Intel Server System SR9000MK4U Product Guide
A. Processor 1
B. Processor 2

Figure 14. Processor Locations

Table 11. Supported Processor Configuration

Processor Processor
Socket 0 Socket 1
Installed Not Installed
Installed Installed
Installed Not Installed
Installed Installed
Installed Installed
A
B
D
C
C. Processor 3
D. Processor 4
Processor
Socket 2
Not Installed
Not Installed
Installed
Installed
Installed
AF001100
Processor
Socket 3
Not Installed
Not Installed
Not Installed
Not Installed
Installed
23
