Figure 109. Exposing The Thermal Interface Material - Intel SR9000MK4U - Server System - 0 MB RAM Product Manual

•
The KVM card, if it is installed. For instructions, see
page
•
All installed PCI cards. For instructions, see
•
The PCI card divider. For instructions, see
page
•
The air flow guide. For instructions, see
page
Remove these components, in order, before beginning the steps below.
Caution: Handle the processor only by the edges. Do not touch the pin grid or the LGA terminal.
1. Remove the protective cover from the underside of the heatsink to expose the
thermal interface material. Do not touch the thermal interface material. See the
figure below.
2. Verify that there are no bent pins or dust on the processor pins.
3. Position the pin shroud so the arrow points to the LGA terminal.
Cautions:
•
Do not touch the processor pins with either your hands or with the pin shroud.
•
The pin shroud is fragile. Use caution when installing it. Excessive flex will break
the pin shroud.
114
89.
91.
95.

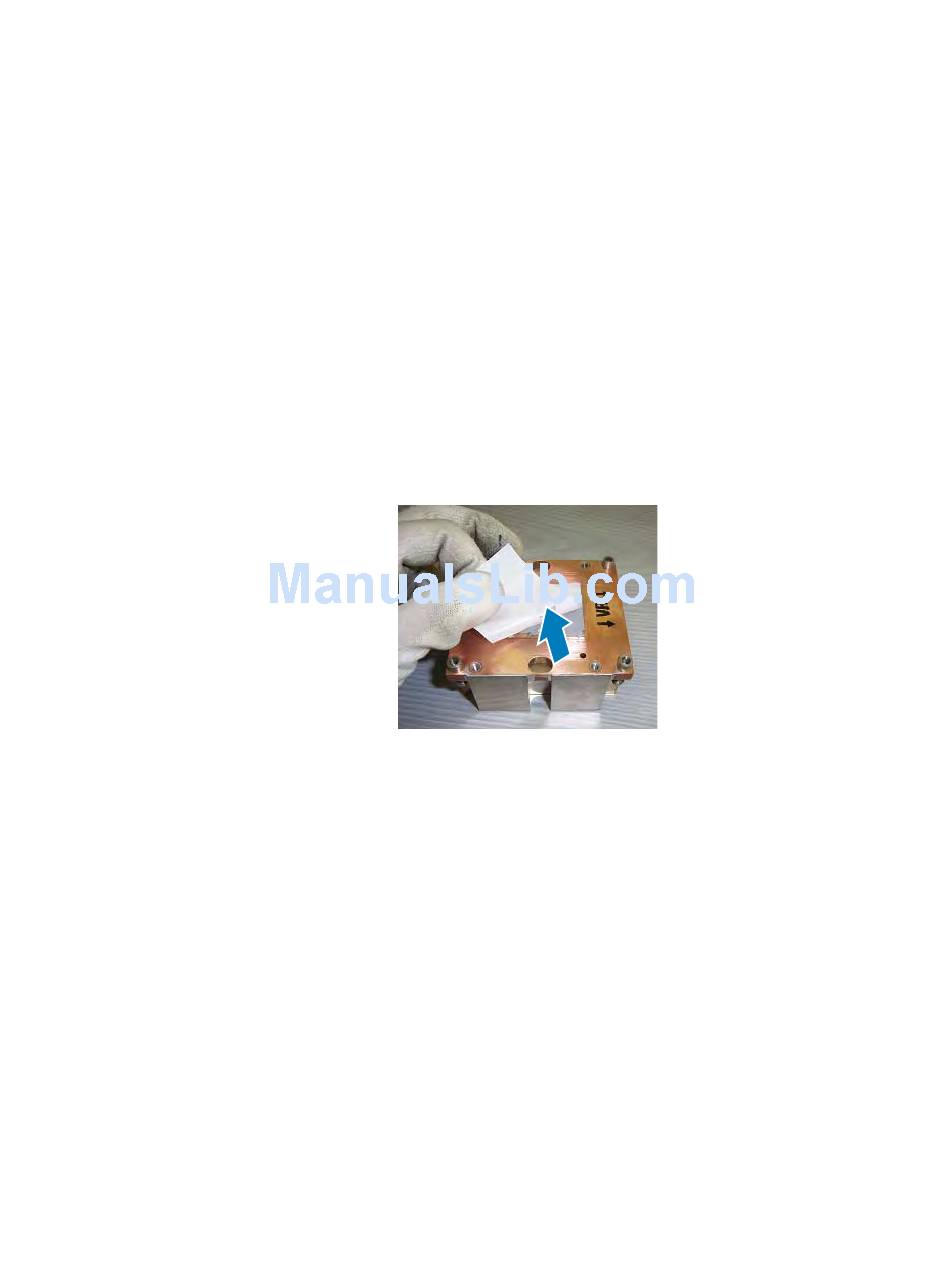

Figure 109. Exposing the Thermal Interface Material

"Removing the KVM Card" on
"Removing a PCI Card" on page
"Removing the PCI Card Divider" on
"Removing the Air Flow Guide" on
AF001262
®
Intel Server System SR9000MK4U Product Guide
63.
