Chassis Rear; Figure 7. Chassis Rear View - Intel SR9000MK4U - Server System - 0 MB RAM Product Manual

Chassis Rear

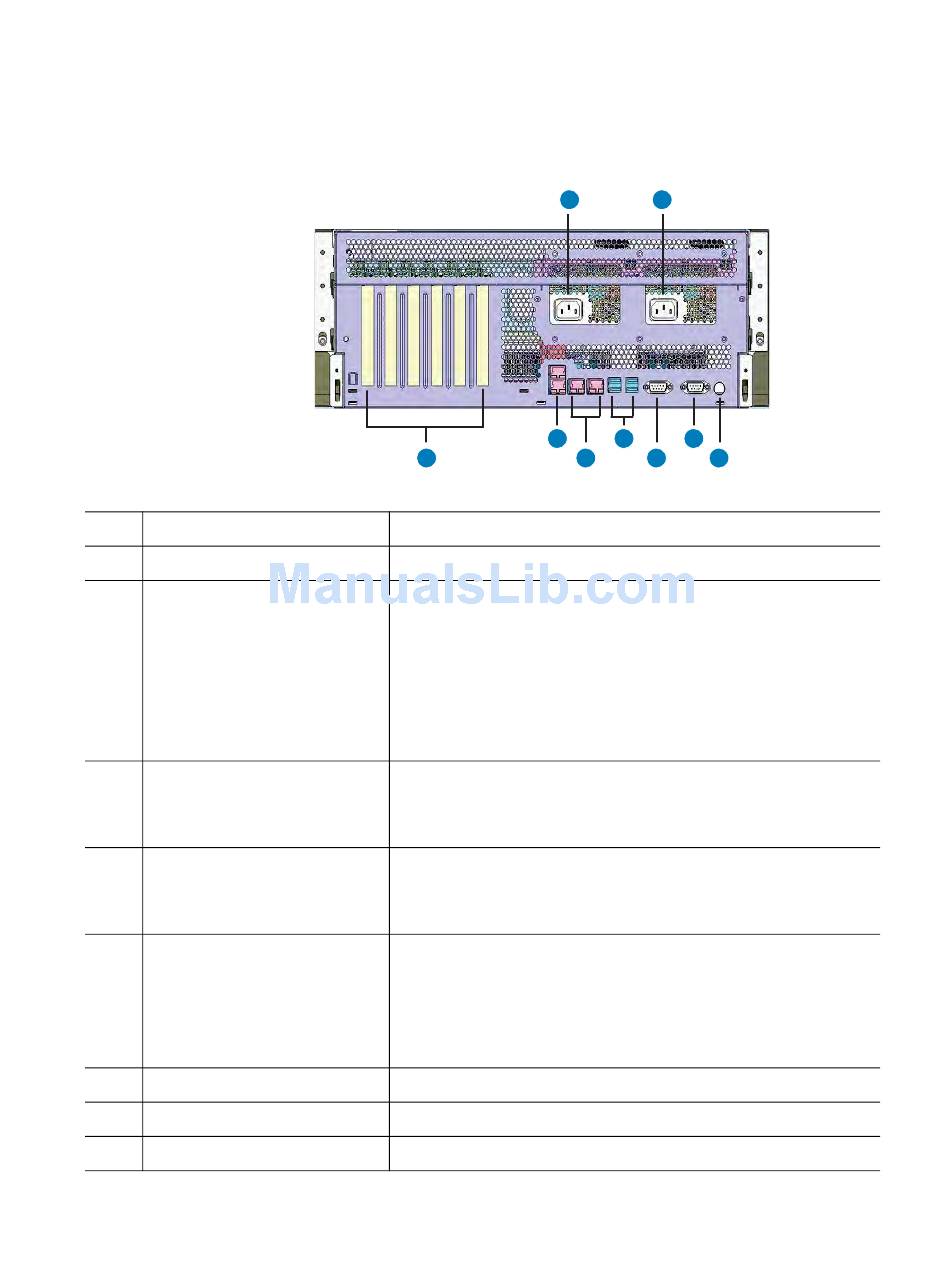

Figure 7 shows the features found on the rear panel.
A AC input power connectors
B AC input power connectors
C PCI Slots
D Dual Gb Ethernet ports
E 100 Mb Ethernet ports
F Four USB ports
G Video port
H Serial port
I Identification Button
®
Intel Server System SR9000MK4U Product Guide
A
D
C
All slots support hot-plug PCI add-in cards. From left to right:
–
Slot 6: 133 MHz, 64-bit PCI-X*, full length
–
Slot 5: PCI-Express* x 16, half length
–
Slot 4: PCI-Express x 8, half length
–
Slot 3: 133 MHz, 64-bit PCI-X, half length
–
Slot 2: PCI-Express x 16, half length
–
Slot 1: PCI-Express x 8, half length
RJ45 connectors. See Table 5 for LED information.
–
GbE1: top
–
GbE0: bottom
RJ45 connectors. See Table 5 for LED information.
–
Ether0: left. Management LAN port
–
Ether1: right. KVM LAN port
4-pin connectors:
–
Top left: RUSB3
–
Bottom left: RUSB2
–
Top right: RUSB1
–
Bottom right: RUSB0
Standard VGA compatible, 15-pin connector
9-pin RS-232 connector
Toggles chassis ID LED on/off.

Figure 7. Chassis Rear View

B
F H
E G I
