Installing the Top Cover

1. Place the front edge of the cover on the chassis.
2. Lower the rear of the cover into place, as shown by letter "A" in the figure below.

Installing and Removing a Hard Drive

You will need to remove the hard drive(s) or the hard drive carriers to perform the
following operations:
•
To replace a hard drive
•
To install or remove the hard drive backplane
•
To install or remove the mounting plate
Cautions:
•
Handle the hard drive carefully. Inappropriate handling may result in hard drive
failure.
•
Always create backup copies of important data on the hard disk. If the hard drive
fails, all data stored on it will be lost.
®
Intel Server System SR9000MK4U Product Guide

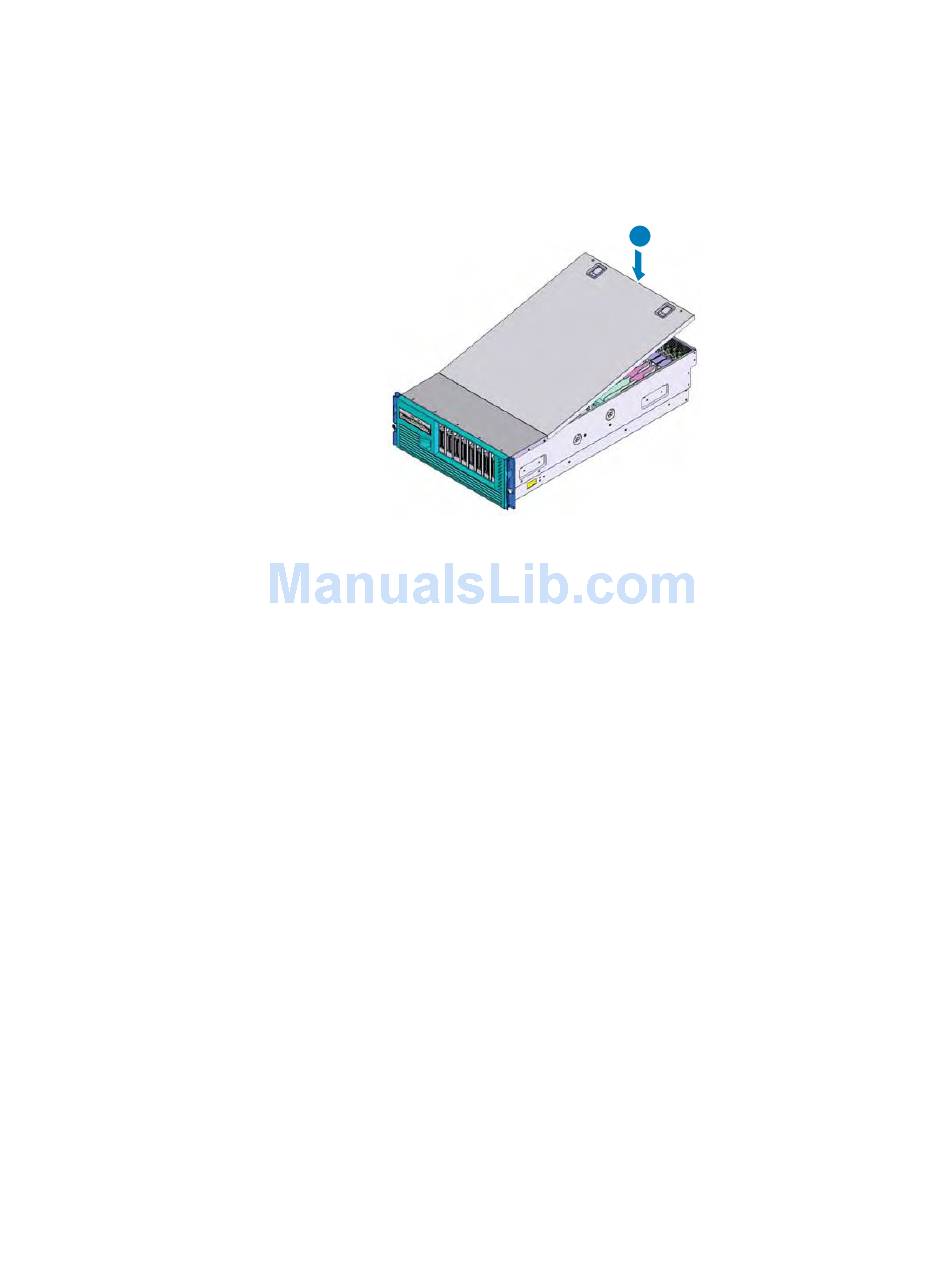

Figure 24. Installing the Top Cover

A
AF001107
37
