7. Pull the PCI card lock firmly until it clicks into place. See the figure below.
8. Lower the PCI caution plate. See letter "A" in the figure below.
9. Attach any cables necessary for the card you installed. See your add-in card
documentation for information and instructions.
10. Determine your next course of action and refer to the appropriate steps:
— If you are following these steps as part of another procedure, return to that
— Install the top cover. For instructions, see
62

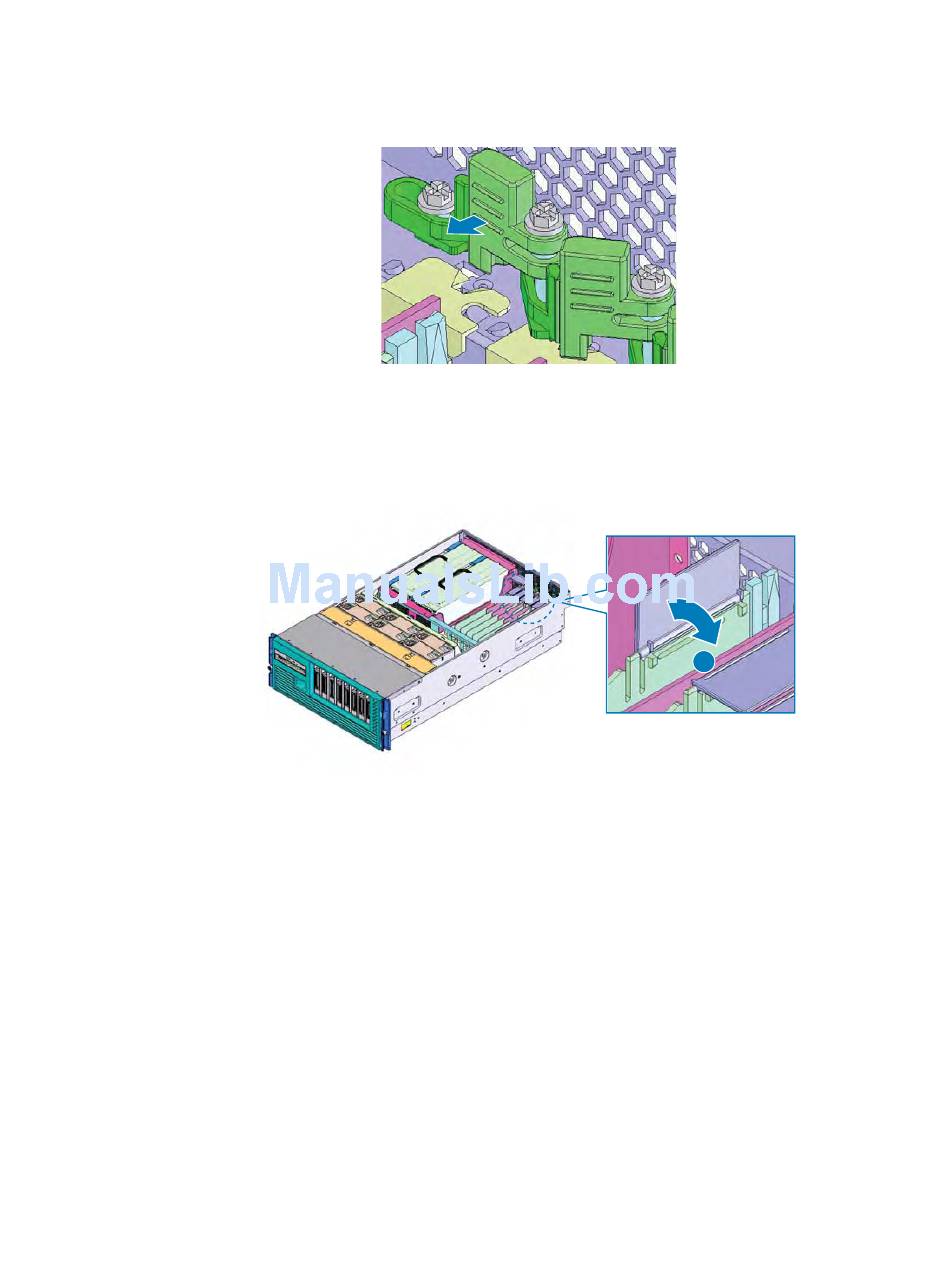

Figure 55. Locking a PCI Card into Place

Figure 56. Closing the PCI Caution Plate

procedure.
AF001142
"Installing the Top Cover" on page
®
Intel Server System SR9000MK4U Product Guide
A
AF001144
37.
