8. Lift the spring clip from the processor. See the following figure.
9. Lift the processor from the heat sink.
10. Carefully push out on one side of the pin shroud to release it from the processor.
Cautions:
•
Do not touch the processor pins with either your hands or with the pin shroud.
•
The pin shroud is fragile. Use caution when removing it. Excessive flex will break
the pin shroud.
11. Remove the pin shroud.
124

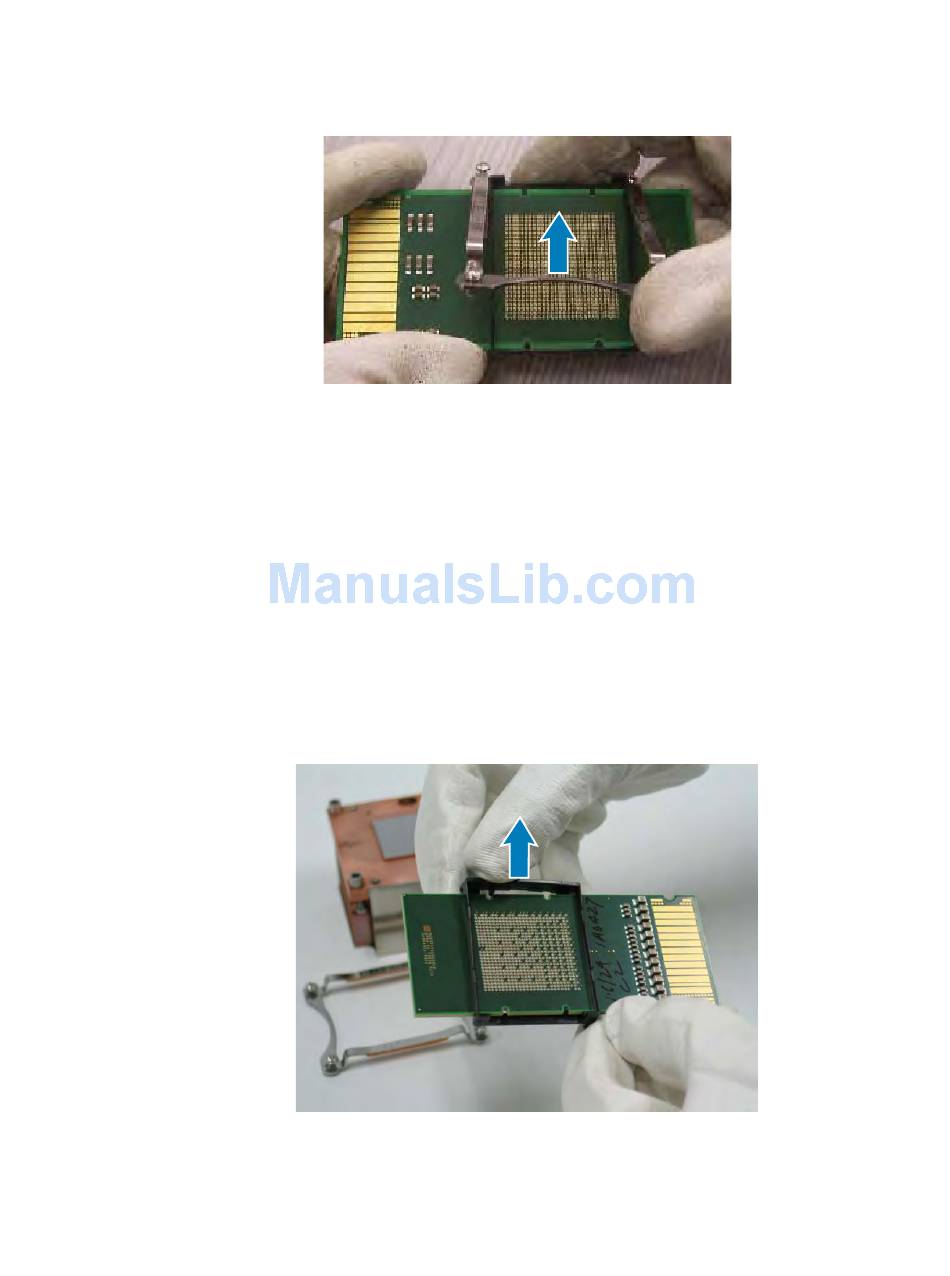

Figure 126. Removing the Spring Clip

Figure 127. Removing the Pin Shroud from the Processor

AF001261
®
Intel Server System SR9000MK4U Product Guide
AF001273
