3. Tighten the two captive screws at the bottom of the power supply box. See the
figure below.
4. Tighten the two screws on the exterior of the system. One screw is on each side of
the system, as shown below.
5. Connect the CPU1 / CPU2 MVR cable from the main board. See the figure below
to locate the MVR cable connection.
®
Intel
Server System SR9000MK4U Product Guide

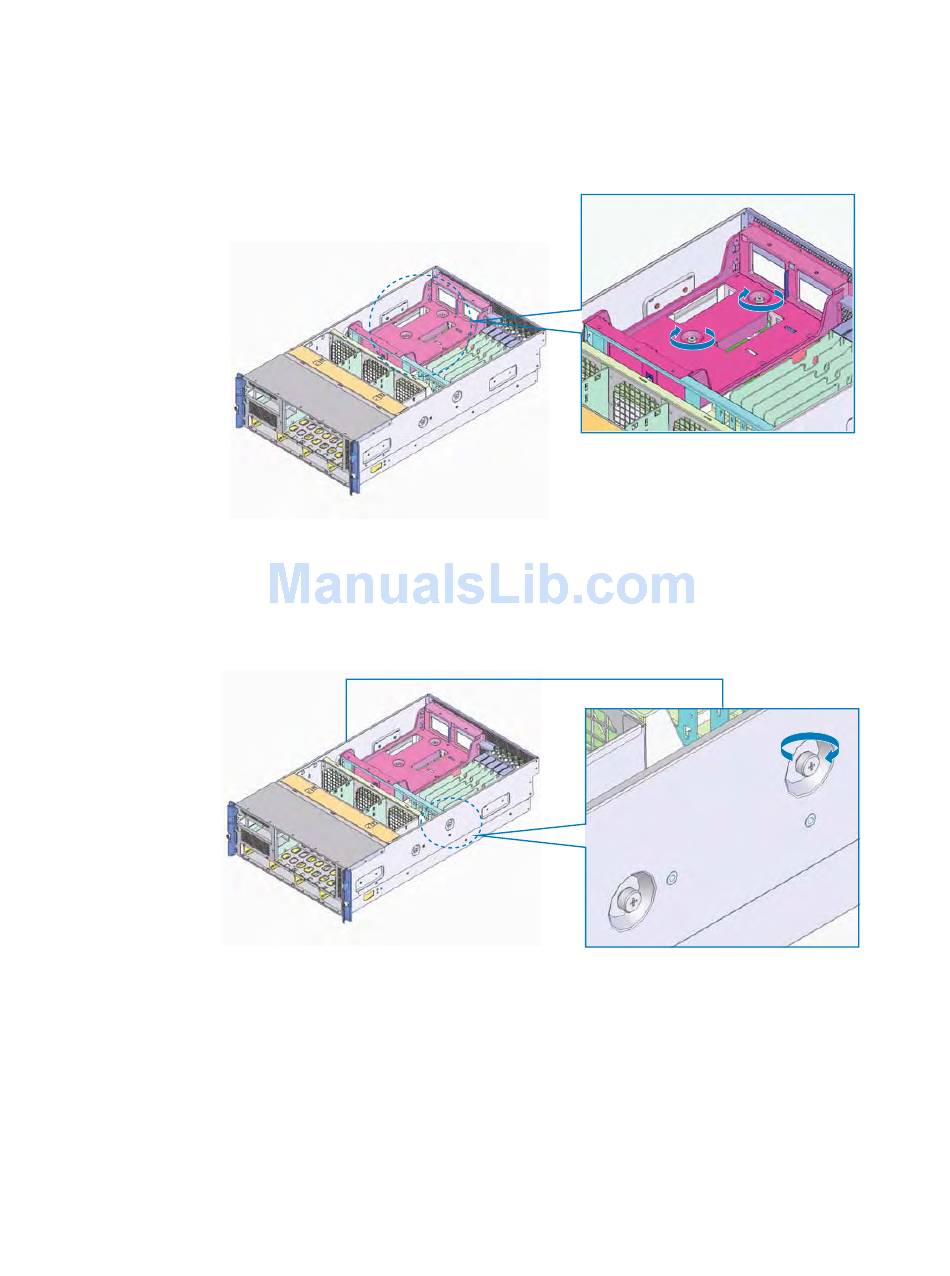

Figure 80. Tightening the Internal Power Supply Box Screws
Figure 81. Tightening the External Power Supply Box Screws
AF001238
AF001237
81
