3. Push the PCI card lock firmly to unlock the PCI card. See the figure below.
4. Remove the PCI card and place it on a clean, static-free surface.
— For a short-length card, pull the PCI card from the slot.
— For a full-length card: Pull back on the PCI tail lock to release the PCI card. See
64

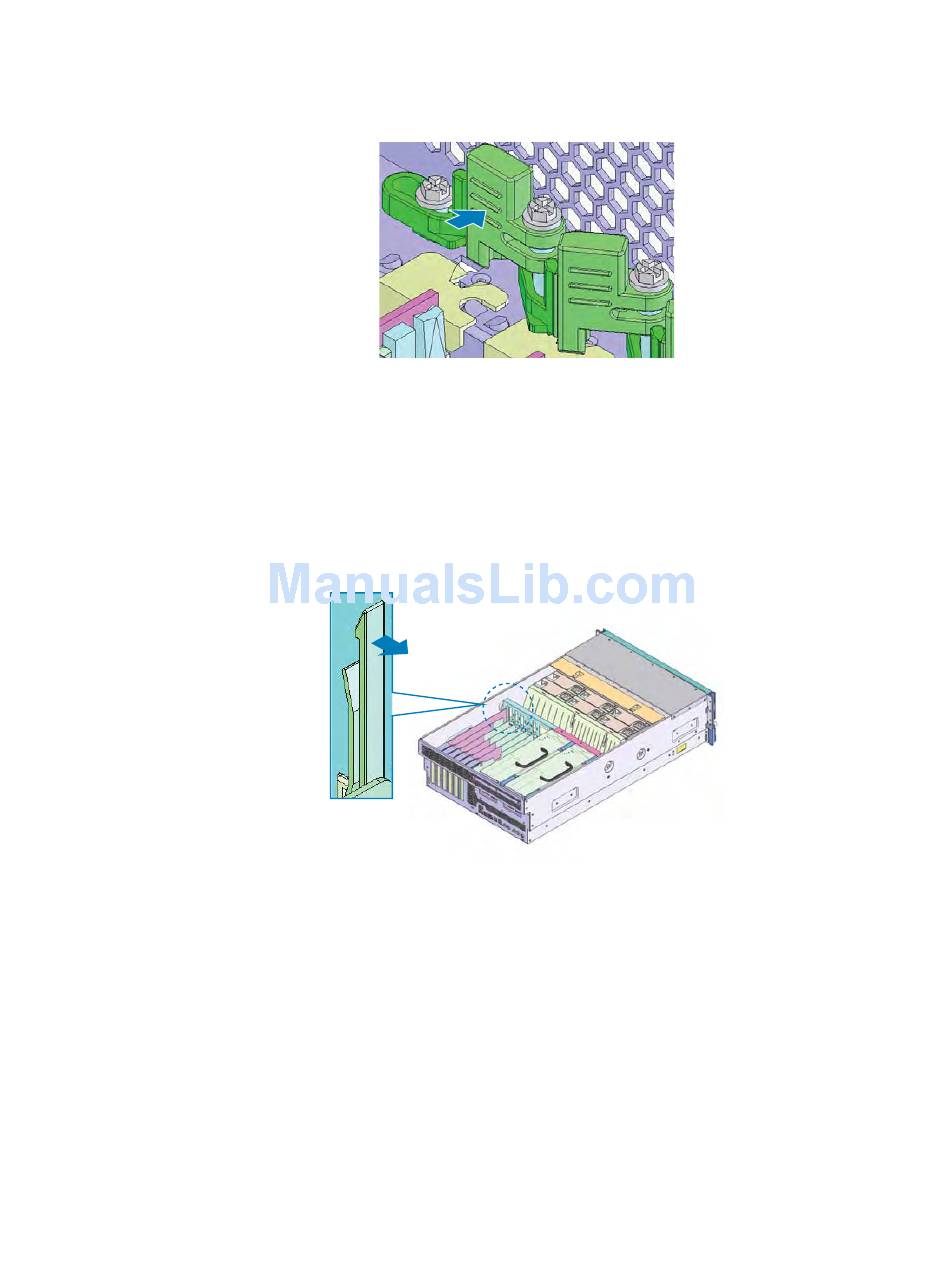

Figure 58. Unlocking a PCI Card Lock

the figure below. While holding the PCI tail lock back, pull out the PCI card.

Figure 59. Releasing the PCI Card from the Tail Lock

AF001139
AF001143
®
Intel
Server System SR9000MK4U Product Guide
