Figure 105. Attaching The Hard Drive Backplane To The System - Intel SR9000MK4U - Server System - 0 MB RAM Product Manual

3. Install the four screws on the hard drive backplane to secure the backplane to the
system. See the figure below.
4. Connect the cables to the backplane:
— Connect the SAS cable to J54P0
— If you have a second SAS cable, connect it to J54P1
— Connect the IDE cable to JVDD
— Connect the backplane power cable to JPANELPW
— Connect the backplane data cable to JPANEL
5. Determine your next course of action and refer to the appropriate steps:
— If you are following these steps as part of another procedure, return to that
— If you are ready to re-assemble your server system, reinstall the following items,
108

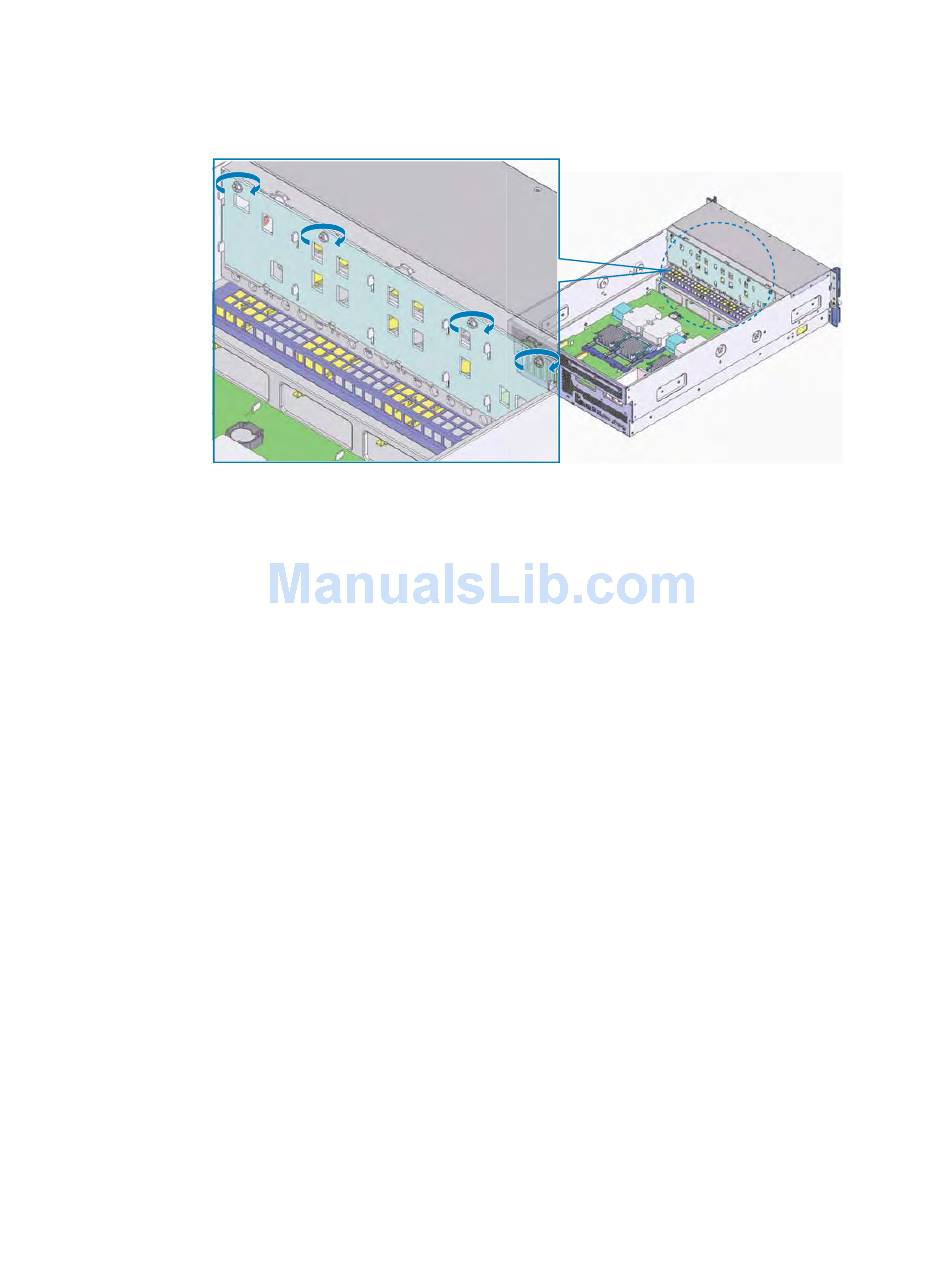

Figure 105. Attaching the Hard Drive Backplane to the System

procedure.
in order:
✧ The fan box. For instructions, see
✧ All installed fans. For instructions, see
✧ The air flow guide. For instructions, see
page 97.
✧ The PCI card divider. For instructions, see
on page 93.
✧ The KVM card, if it is installed. For instructions, see
Card" on page 90.
✧ All installed PCI cards. For instructions, see
page 59.
"Installing the Fan Box" on page
"Installing a Fan" on page
"Installing the Air Flow Guide" on
"Installing the PCI Card Divider"
"Installing the KVM
"Installing a PCI Card" on
®
