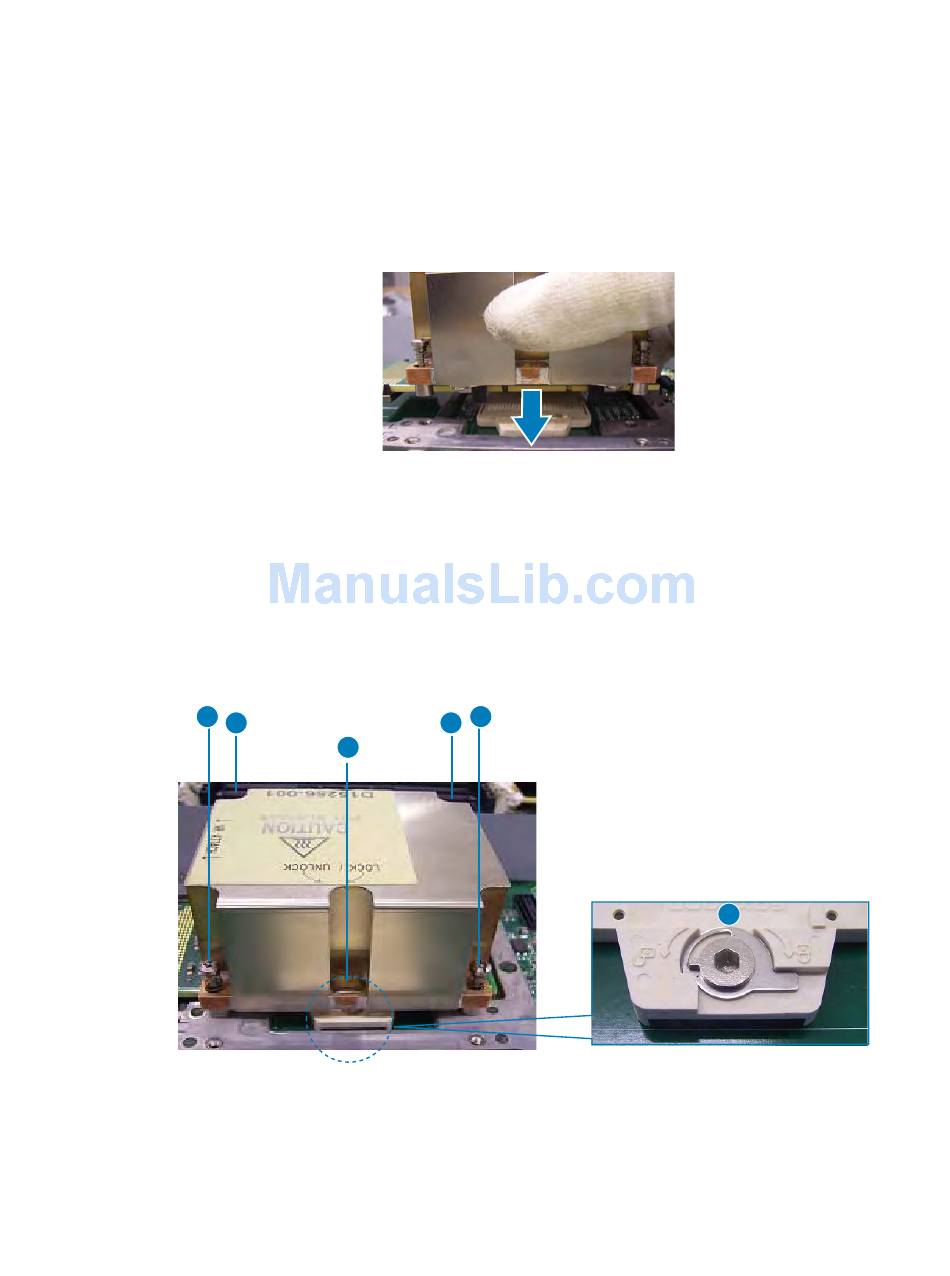

Figure 116. Setting The Processor Assembly Into Place Over The Processor Socket; Figure 117. Attaching The Processor And Heat Sink To The Main Board - Intel SR9000MK4U - Server System - 0 MB RAM Product Manual

11. Carefully set the processor assembly into place on the main board, aligning the
heatsink screws with the corresponding holes in the server board. See the figure
below.
Caution: Do not allow the processor pins to rub against the processor socket. If the
Figure 116. Setting the Processor Assembly into Place over the Processor
12. Use a hexagonal wrench to turn the processor lock on the server board to the locked
position. See letter "A" in the figure below.
13. Use a Torx-15 screwdriver to tighten the four screws on the corners of the heat sink.
Use a torque level of 0.68[N.m] (6.9[kghf.cm]). See letter "B" in the figure.
B B

Figure 117. Attaching the Processor and Heat Sink to the Main Board

118
processor does not seated easily, remove the assembly, inspect pins, socket
and heat sink for possible damage, and set the assembly into place again.
B B
A
AF001268
Socket
®
Intel Server System SR9000MK4U Product Guide
A
AF001269
