Figure 128. Lifting The Mounting Plate From The System - Intel SR9000MK4U - Server System - 0 MB RAM Product Manual

The steps do not guide you through reinstalling the components you are removing or
disconnecting in this step sequence. These steps assume you are removing the mounting
plate to replace it. After completing these steps, continue with
Plate" on page 127
1. Grasp the front handle of mounting plate assembly and lift the mounting plate
slightly. See letter "A" in the figure below.
2. While continuing to hold the front of the mounting plate, grasp the handle at the
rear of the mounting plate. See letter "B" in the figure.
3. Lift the mounting plate from the system.
4. Install a replacement mounting plate. For instructions, see
Plate" on page
126
to replace your mounting plate.
A

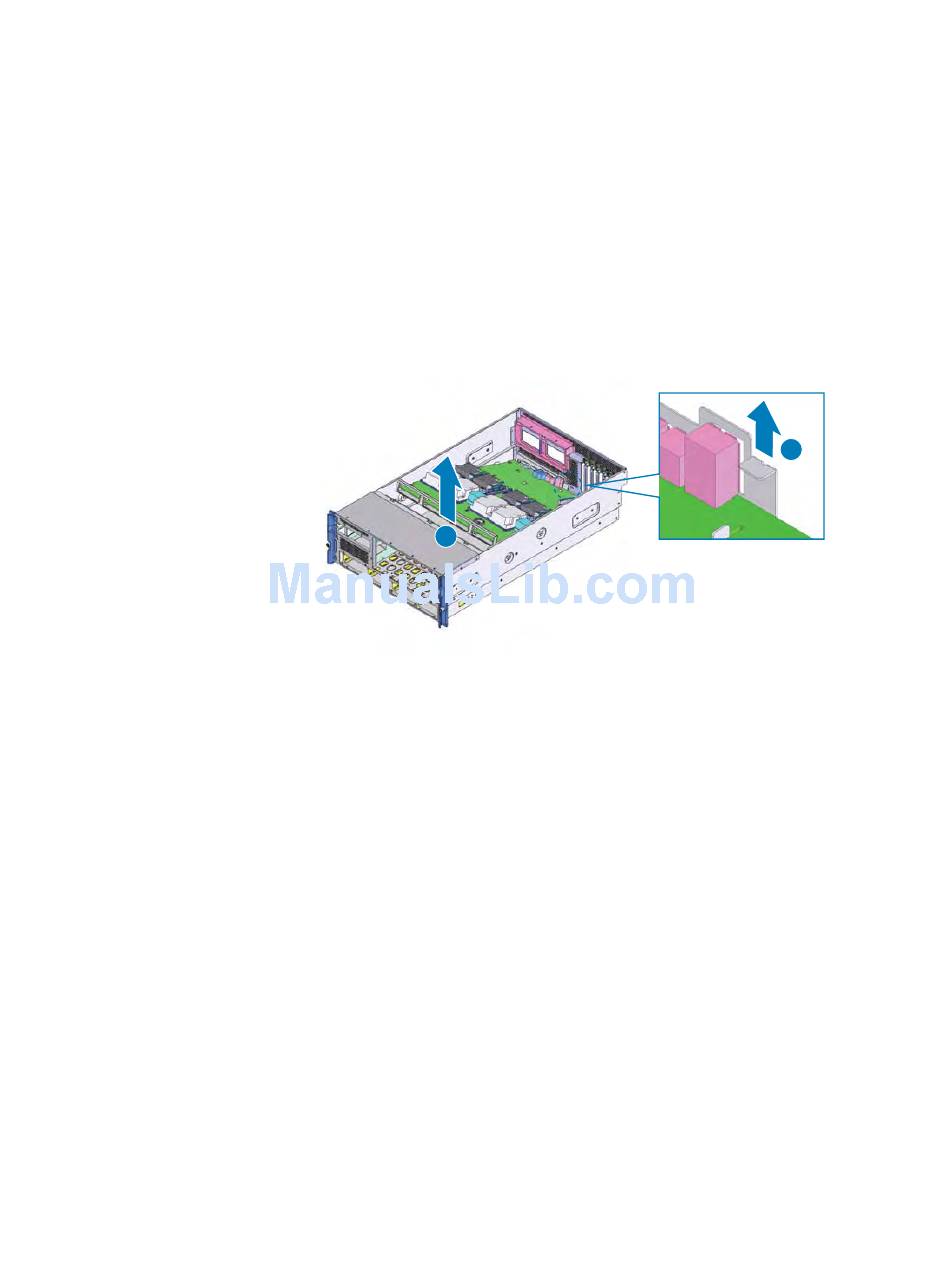

Figure 128. Lifting the Mounting Plate from the System

127.
"Installing the Mounting
"Installing the Mounting
®
Intel Server System SR9000MK4U Product Guide
B
AF001242
