Installing the PCI Card Divider

These steps assume you have just removed the PCI card divider, as described in
"Removing the PCI Card Divider" on page 91
1. Insert the two guides of the PCI divider into two guide holes near the bottom of the
system.
2. Verify that the guides align with the guide holes in the chassis. Press down on the
divider until it snaps into place.
®
Intel Server System SR9000MK4U Product Guide

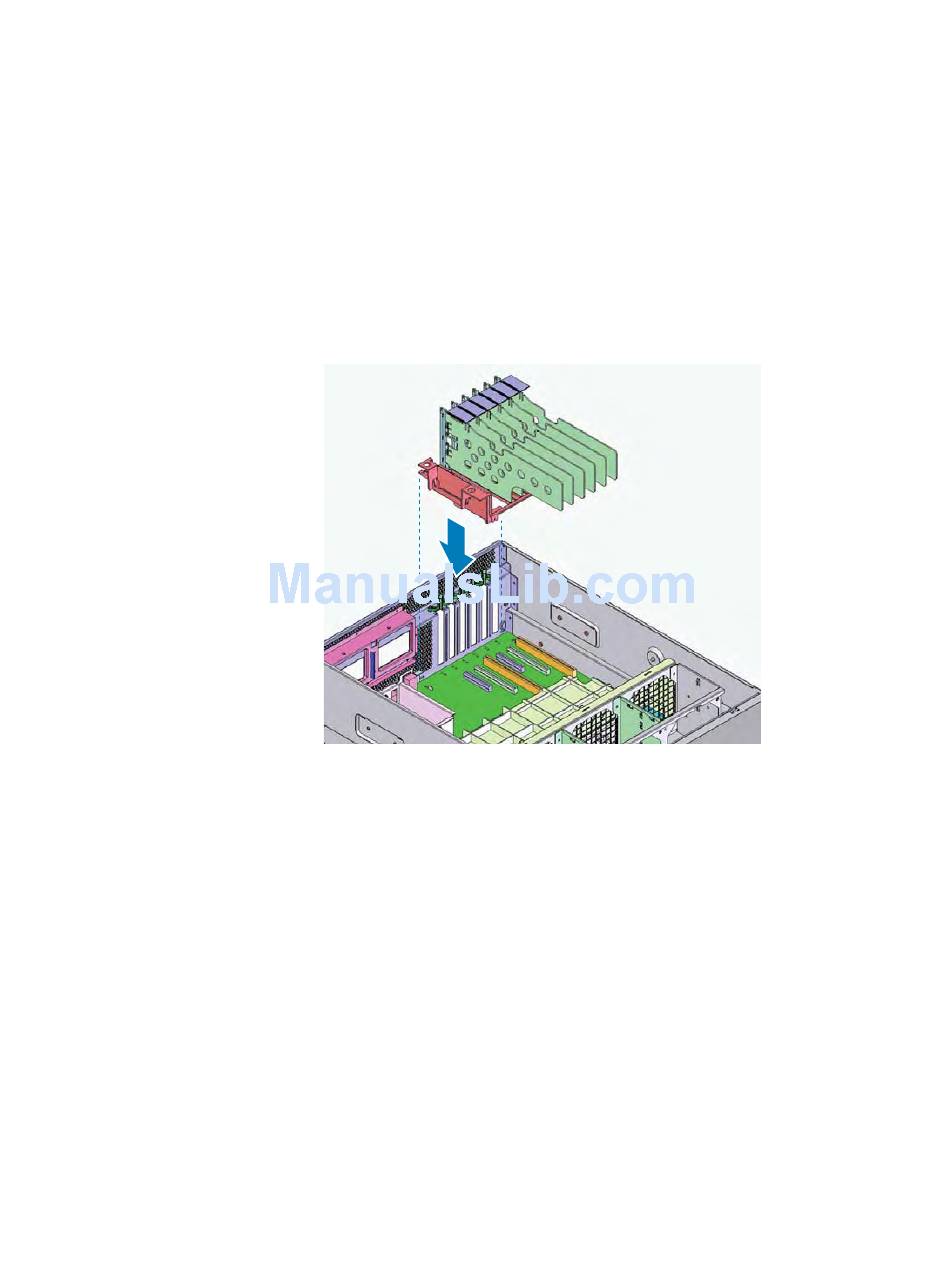

Figure 93. Installing the PCI Divider

and your system is partially disassembled.
AF001232
93
