Installing And Removing The Hard Drive Backplane Cover; Removing The Hard Drive Backplane Cover; Figure 88. Removing The Hard Drive Backplane Cover - Intel SR9000MK4U - Server System - 0 MB RAM Product Manual

Installing and Removing the Hard Drive
Backplane Cover
Before beginning these steps, power down your server system and unplug all AC power
cords.
You will need to remove the hard drive backplane cover to perform the following
operations:
•
To install or remove the fan box
•
To install or remove the hard drive backplane
•
To install or remove the mounting plate

Removing the Hard Drive Backplane Cover

Before beginning these steps, you must remove the top cover from the system. For
instructions, see
1. Use the finger grip and lever to pull and hold the two levers at the top of the hard
drive backplane cover.
2. Pull the backplane cover from the system.
3. Determine your next course of action and refer to the appropriate steps:
— If you are following these steps as part of another procedure, return to that
— Reinstall the hard drive backplane cover. For instructions, see
®
Intel Server System SR9000MK4U Product Guide
"Removing the Top Cover" on page
A

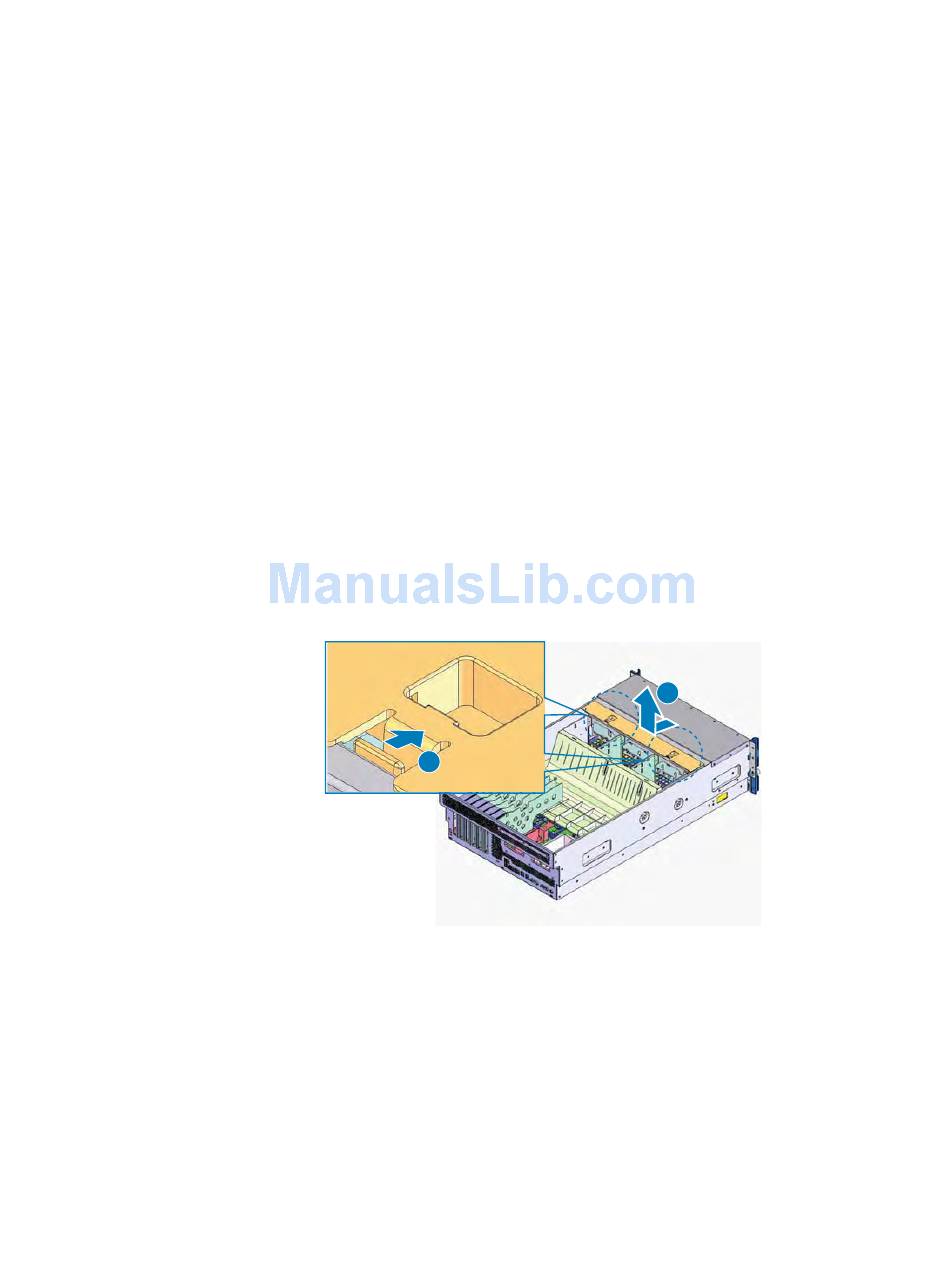

Figure 88. Removing the Hard Drive Backplane Cover

procedure.
Hard Drive Backplane Cover" on page
36.
B
AF001217
88.
"Installing the
87
