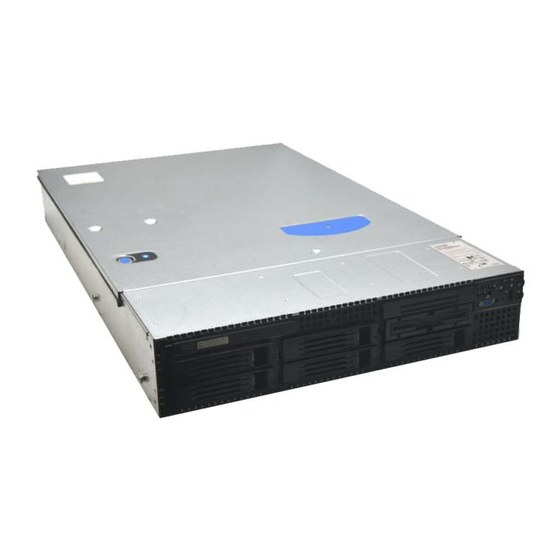

Server System SR2500AL
User's Guide
A Guide for Technically Qualified Assemblers of Intel® Identified Subassemblies/
Products
Intel Order Number D31969-004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SERVER SYSTEM SR2500AL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intel SERVER SYSTEM SR2500AL

Summary of Contents for Intel SERVER SYSTEM SR2500AL

  • Page 1 ® Intel Server System SR2500AL User’s Guide A Guide for Technically Qualified Assemblers of Intel® Identified Subassemblies/ Products Intel Order Number D31969-004...
  • Page 2 Intel products are not designed, intended or authorized for use in any medical, life saving, or life sustaining applications or for any other application in which the failure of the Intel product could create a situation where personal injury or death may occur.

  • Page 3: Important Safety Instructions

    Safety Information Important Safety Instructions Read all caution and safety statements in this document before performing any of the instructions. See also Intel Server Boards and Server Chassis Safety Information on the ® Intel Deployment Assistant CD and/or at server/sb/cs-010770.htm.
  • Page 4 重要安全指导 在执行任何指令之前，请阅读本文档中的所有注意事项及安全声明。 和/或 上的 Intel http://support.intel.com/support/motherboards/server/sb/CS-010770.htm Server Boards and Server Chassis Safety Information（《Intel 服务器主板与服务器机箱安全信息》）。 Intel® Server System SR2500AL User’s Guide...
  • Page 5 ESD. Hold boards only by their edges. After removing a board from its protective wrapper or from the server, place the board component side up on a grounded, static free surface. Use a conductive foam pad if available but not the board wrapper. Do not slide board over any surface.
  • Page 6 Intel® Server System SR2500AL User’s Guide...

  • Page 7: Preface

    This includes how to navigate through the BIOS Setup screens, how to perform a BIOS update, and how to reset the password or CMOS. Information about the specific BIOS settings and screens is available in the Intel 5000 Series Chipsets Server Board Family Datasheet. See a link to the Intel Chapter 4 provides instructions on adding and replacing components.

  • Page 8: Product Contents

    Server System SR2500ALLX and/or the Intel ships with the Intel Server Board S5000PAL User’s Guide. There are two versions of this server system: the Intel SR2500ALLXR (SAS/SATA version) and the Intel SR2500ALBRPR (SATA only version). The contents of each server system are listed below.
  • Page 9 One 32-6mm flat screw for installing the optical drive component, in the hardware • Rack handles, in the hardware box • Peripheral bay filler panel, in the hardware box • Standard control panel, installed in the server system • Passive mid-plane, installed in the server system Intel® Server System SR2500AL User’s Guide...
  • Page 10 Intel® Server System SR2500AL User’s Guide...

  • Page 11: Table Of Contents

    Fixed Bracket Rack Mount Removal ...25 Fixed Bracket Rack Mount Installation ...26 Basic Rail Rack Mount Removal ...27 Basic Rail Rack Mount Installation ...27 Tool-less Rail Rack Mount Servicing ...28 Removing and Installing the Front Bezel ...28 Intel® Server System SR2500AL User’s Guide...
  • Page 12 Installing the Intel RMM and Intel ® Removing the Intel RMM and Intel Replacing the Mid-plane Board ... 71 Removing the Mid-plane Board ... 71 ® RMM NIC ... 68 ® RMM NIC ... 70 Intel® Server System SR2500AL User’s Guide...
  • Page 13 Appendix A: Technical Reference ... 107 Cable Routing ...107 Fan Connections ...108 750W Single Power Supply Input Voltages ...109 750W Single Power Supply Output Voltages ...109 System Environmental Specifications ...110 Appendix B: Troubleshooting ... 111 Intel® Server System SR2500AL User’s Guide xiii...
  • Page 14 Industry Canada (ICES-003) ... 142 Europe (CE Declaration of Conformity) ... 142 VCCI (Japan) ... 142 BSMI (Taiwan) ... 142 Korean Compliance (RRL) ... 143 CNCA (CCC-China) ... 143 Product Ecology Compliance ... 143 Intel® Server System SR2500AL User’s Guide...
  • Page 15 Regulated Specified Components ...147 End-of-Life / Product Recycling ...148 Appendix G: Warranty ... 149 Limited Warranty for Intel® Chassis Subassembly Products ...149 Appendix H: Installation/Assembly Safety Instructions ... 153 English ...153 Deutsch ...155 Français ...157 Español ...159 Chinese ...161 Italiano ...162 Appendix I: Safety Information ...
  • Page 16 Advertencias de alimentacién y eléctricas ... 183 Advertencias sobre el cable de alimentación ... 183 Advertencias el acceso al sistema ... 184 Advertencias sobre el montaje en bastidor ... 185 Descarga electrostática (ESD) ... 185 Otros riesgos ... 186 Intel® Server System SR2500AL User’s Guide...
  • Page 17 Figure 38. Installing an Optical Drive into the Drive Tray ... 48 Figure 39. Installing an Optical Drive Assembly into the Server System ... 49 Figure 40. Removing the Slimline Optical Drive Assembly from the Server System ... 50 Figure 41. Removing the Slimline Optical Drive from the Tray ... 50 Intel®...
  • Page 18 Figure 51. Removing PCI Riser Assembly from the Server System... 58 Figure 52. Installing PCI Riser Assembly into the Server System ... 59 Figure 53. Removing the PCI Riser Card from the Server System (Full Height Side)... 61 Figure 54. Installing PCI Riser Card into the Server System ... 62 Figure 55.
  • Page 19 Figure 94. Connecting the Non-redundant Fan Power Cables to the Passive Mid-plane Board . Figure 95. Connecting the Redundant Fan Power Cables to the Active Mid-plane Board... 108 Figure 96. Diagnostic LED Placement Diagram... 128 Intel® Server System SR2500AL User’s Guide...
  • Page 20 Intel® Server System SR2500AL User’s Guide...
  • Page 21 Table 8. LED Information ...120 Table 9. POST Error Beep Codes ...120 ® Table 10. Error Beep Codes Generated by Intel Remote Management Module ...121 Table 11. POST Progress Code LED Example ...127 Table 12. Diagnostic LED POST Code Decoder ...128 Table 13.
  • Page 22 Intel® Server System SR2500AL User’s Guide...

  • Page 23: Chapter 1: Server System References

    SR2500ALLXR • SR2500ALBRPR Unless noted otherwise, all references to the Intel® Server System SR2500AL refer to all four product codes. If you need more information about this product or information about the accessories that can be used with this server chassis, use the following resources.
  • Page 24 A link to the SMaRT Tool is available under "Other Resources" at the right side of the screen at http://support.intel.com/support/motherboards/server/chassis/ SR2500 Spares and Configuration Guide Found: available from your Intel field representative or on the Server Configurator Tool at http://indigo.intel.com/ serverconfiguratortool/default.aspx Tested HardwareOperating Systems List Found at: http://support.intel.com/support/motherboards/server/S5000PAL/...

  • Page 25: Chapter 2: Server System Features

    Server System Features This chapter briefly describes the main features of the server system. This chapter provides illustrations of the product, a list of the server system features, and diagrams showing the location of important components and connections on the server system.

  • Page 26: Table 2. Intel ® Server System Sr2500Allx And/Or The Intel ® Server System Sr2500Albrp Feature Summary

    • One low profile riser slot supporting 1U or 2U PCI Express* riser cards • One full height riser slot supporting 1U or 2U PCI-X* and PCI Express* riser cards Intel® Server System SR2500AL User’s Guide ® Server System Description...
  • Page 27 LEDs and displays (dependent on option selected) Power Supply Fans System Management Intel® Server System SR2500AL User’s Guide Server System SR2500ALLX and/or the Intel SR2500ALBRP Feature Summary • Five hot-swap SATA / SAS drives • Drive bay for sixth hot-swap SATA / SAS drive or a 3.5 inch tape drive •...

  • Page 28: Chassis Component Identification

    Chassis Component Identification This section helps you identify the components of your server system. If you are near the system, you can also use the Quick Reference Label provided on the inside of the chassis cover to assist in identifying components.

  • Page 29: Server Board Connector And Component Locations

    Server Board Connector and Component Locations Intel® Server System SR2500AL User’s Guide V U S TP02071...

  • Page 30: Figure 3. Server Board Connector And Component Locations

    FF. SATA Port 2 SATA Port 5 LL. System Recovery Jumpers ® OO. Intel Local Control Panel Header Intel® Server System SR2500AL User’s Guide I/O Expansion Module Connector PCI Express* Riser Slot - Low Profile Status LED - Green/Amber System Fan 3Header...

  • Page 31: Configuration Jumpers

    Operation (Default) Jumper Name BIOS Select Intel® Server System SR2500AL User’s Guide Jumper Purpose If pins 1-2 are jumpered, the BIOS in the lower bank will be selected on the next reset. These pins should be jumpered on 2-3 for normal operation.

  • Page 32: Figure 5. Recovery Jumpers

    These pins should be jumpered on 1-2 for normal operation. If pins 2-3 are jumpered, BMC Force Update Mode is enabled. These pins should be jumpered on 1-2 for normal operation. Figure 5. Recovery Jumpers Intel® Server System SR2500AL User’s Guide Jumper Purpose TP02080...

  • Page 33: Figure 6. Light Guided Diagnostic Leds

    The server board contains diagnostic LEDs to help you identify failed and failing components, and to help you identify the server from among several servers. Except for the ID LED, the status LED, and the 5V standby LED, the LEDs turn on (amber) only if a failure occurs.

  • Page 34: Figure 7. Back Panel Connectors

    Back Panel Connectors Mouse Serial Port B (RJ45) NIC 2 (10/100/1000 Mb) USB Port 6 Keyboard NIC 1 (10/100/1000 Mb) Video USB Port 5 Figure 7. Back Panel Connectors Intel® Server System SR2500AL User’s Guide TP02081...

  • Page 35: Raid Support

    To enable RAID 5, this activation key is placed on the SATA Key connector that is located at the left side of the server board. For information on how to install the Intel RAID Activation Key AXXRAKSW5 accessory to enable RAID 5, see the documentation that is included with the accessory kit.

  • Page 36: Sas/Sata Mid-Planes

    Mid-plane Power Fan 6 Power Fan 5 Power SATA 0-7 Connectors Bridge Board Connector Note: SATA connectors 6 and 7 are not used in the Intel ® the Intel Server System SR2500ALBRP. Fan 4 Power Fan 3 Power...

  • Page 37: Figure 9. Active Sas/Sata Mid-Plane Components

    RAID Battery Connector Mid-plane Power Connector Fan 6 Power Fan 5 Power Bridge Board Connector Figure 9. Active SAS/SATA Mid-Plane Components Intel® Server System SR2500AL User’s Guide Fan 4 Power Fan 3 Power Fan 2 Power Fan 1 Power Backplane Connectors...

  • Page 38: Figure 10. Hot-Swap Sas/Sata Backplane Components (Front View)

    The backplane serves as an interface between the mid-plane board and the system drives. The following diagrams show the location for each connector found on the backplane. Optical Drive Connector USB Floppy Connector Figure 10. Hot-Swap SAS/SATA Backplane Components (Front View) Control Panel Connector SAS/SATA Connectors Intel® Server System SR2500AL User’s Guide AF000045...

  • Page 39: Figure 11. Hot-Swap Sas/Sata Backplane Components (Rear View)

    Flex Bay Power Flex Bay Data IDE Connector Figure 11. Hot-Swap SAS/SATA Backplane Components (Rear View) Intel® Server System SR2500AL User’s Guide Backplane Power Data Connectors (one for the flex bay and one for the mid-plane) AF000044...

  • Page 40: Front Of Server System

    No light indicates POST is running or the system is off. Solid blue indicates system identification is active. No light indicates system identification is not activated. Solid blue indicates system identification is active. No light indicates system identification is not activated. Intel® Server System SR2500AL User’s Guide AF000030 Function...

  • Page 41: Intel ® Local Control Panel

    Feature Reset Button USB 2.0 Port NMI Button Video Port ® Intel Local Control Panel The diagram below shows the features available on the Intel Callout Feature USB 2.0 Port LCD Display Menu Control Button, Scroll Up Menu Control Button,...

  • Page 42: Bezels

    Two bezels are available. One fits a system that has the standard control panel installed. The other is used for a chassis with the other Intel Control Panel. Each bezel provides a lock to secure the hard drive and optical drive area.

  • Page 43: Rear Of Server System

    Upper Power Supply Module Upper Power Receptacle Lower Power Receptacle Lower Power Supply Module Server Management NIC (Optional) I/O Module (Optional) Intel® Server System SR2500AL User’s Guide M. NIC 2 Figure 14. Server System Back TP02125 USB 6 USB 5...

  • Page 44: Peripheral Devices

    CD-ROM drive, or DVD-ROM drive. The drives must be purchased separately. The following figure shows the available options. Hard Disk Drives The server system ships with five drive carriers for installing five SAS or Serial ATA (SATA) hot-swap drives. Note: SAS drives are supported on the Intel One left drive bay can be converted to be used as a floppy bay.

  • Page 45: Slimline Optical Drive Carrier

    Note: The Intel Server System SR2500ALLX and/or the Intel does not support all slimline optical drives. See Internet link to a list of supported hardware. Intel provides accessory kits for these drives. Advanced Management Options Intel® Remote Management Module ®...
  • Page 46 Intel® Server System SR2500AL User’s Guide...

  • Page 47: Chapter 3: Hardware Installations And Upgrades

    Only the tool-less rail kit allows you to service the server system while installed in a rack. The other rack options require the system to be removed from the rack before servicing.

  • Page 48: Fixed Bracket Rack Mount Installation

    20. Attach the rear end of the outer rail to the rear bracket with at least one screw. If possible, attach at two places. 21. In the same manner, attach the other rail assembly to the other side. Intel® Server System SR2500AL User’s Guide...

  • Page 49: Basic Rail Rack Mount Removal

    8. Align the inner rails (attached to the server chassis) with the outer rail assemblies (attached to the rack). 9. Engage the matching rails and slide the server chassis into the rack until the two safety stops lock into position.

  • Page 50: Tool-Less Rail Rack Mount Servicing

    Removing and Installing the Front Bezel The front bezels are available as optional accessories for the Intel SR2500ALLX and/or the Intel are available. One is used for the standard control panel and the other is used with the ®...

  • Page 51: Removing The Front Bezel

    Use the steps below if your system includes a front bezel. 1. Unlock the bezel. 2. Disconnect any cables attached to the control panel. 3. Pull the bezel from the server system. Intel® Server System SR2500AL User’s Guide Figure 18. Removing the Front Bezel TP02129...

  • Page 52: Installing The Front Bezel

    Before removing the chassis cover, power down the server and unplug all peripheral devices and the AC power cable(s). Note: A nonskid surface or a stop behind the server system may be needed to prevent the server system from sliding on your work surface.

  • Page 53: Installing The Server System Cover

    4. Remove the safety screw if it is installed. See letter "A" in the figure below. 5. While holding in the blue button at the top of the server system in (see letter "B"), slide the top cover back until it stops (see letter "C").

  • Page 54: Removing And Installing The Processor Air Duct

    Removing and Installing the Processor Air Duct Always operate your server system with the processor air duct in place. The air duct is required for proper airflow within the server system. For instructions on adding or replacing a processor, first remove the processor air duct, and then see your server board user guide for instructions on processor installations and removals.

  • Page 55: Figure 22. Removing The Processor Air Duct

    TP02131 Figure 22. Removing the Processor Air Duct Intel® Server System SR2500AL User’s Guide...

  • Page 56: Installing The Processor Air Duct

    Installing the Processor Air Duct 1. Observe the safety and ESD precautions at the beginning of this book. See Information”. 2. Power down the server and unplug all peripheral devices and the AC power cable(s). 3. Remove the server system cover. For instructions, see Cover”.

  • Page 57: Installing And Removing Memory

    To install DIMMs, follow these steps: 1. Observe the safety and ESD precautions in 2. Turn off all peripheral devices connected to the server. Turn off the server. 3. Disconnect the AC power cord(s) from the server. 4. Remove the server's cover. See the documentation that came with your server chassis for instructions on removing the server's cover.

  • Page 58: Figure 25. Installing The Memory

    (see letter “C” in the figure above). Make sure the clips are firmly in place (see letter “D” in the figure above). Figure 25. Installing the Memory Intel® Server System SR2500AL User’s Guide DIMM B2 DIMM C1...

  • Page 59: Removing Dimms

    (1) Touch the metal chassis before touching the processor or server board. Keep part of your body in contact with the metal chassis to dissipate the static charge while handling the processor. (2) Avoid moving around unnecessarily.

  • Page 60: Figure 26. Lifting The Processor Socket Handle

    3. Disconnect the AC power cord(s) from the server. 4. Remove the server's cover. See the documentation that came with your server chassis for instructions on removing the server's cover. 5. Locate the processor socket and raise the socket handle completely (see 6.

  • Page 61: Installing The Heat Sink(S)

    Do no fully tighten one screw before tightening another. 3. Gradually and equally tighten each captive screw until each is firmly tightened. Figure 29. Installing the Heat Sink (2U Passive Heat Sink Shown) Intel® Server System SR2500AL User’s Guide Figure 28. Removing the Socket Cover TP02077...

  • Page 62: Removing A Processor

    Some installation processes will require that you remove the small air baffle that is placed behind the hard drive bays, near the front of your server. The steps below describe how to remove and then install the small air baffle. Use these steps only when it is indicated as necessary for a component installation process.

  • Page 63: Removing The Small Air Baffle

    Removing the Small Air Baffle 1. Observe the safety and ESD precautions at the beginning of this book. See Information”. 2. Power down the server and unplug all peripheral devices and the AC power cable(s). 3. Remove the server system cover. For instructions, see Cover”.

  • Page 64: Removing And Installing The Large Air Baffle

    Some installation processes will require that you remove the large air baffle that is placed behind the hard drive bays, next to the fan module near the front of your server. The steps below describe how to remove and then install the large air baffle. Use these steps only when it is indicated as necessary for a component installation process.

  • Page 65: Installing The Large Air Baffle

    Installing the Large Air Baffle 1. Lower the baffle into the server system and snap into the server board standoff as shown in the figure below. 2. While setting the baffle into place, route the cables beneath it appropriately. See Appendix , “Cable Routing”...

  • Page 66: Installing And Removing A Hot-Swap Hard Drive

    Cautions: If you install less than six drives or devices, empty drive bays must be occupied by carriers with baffles to maintain proper system cooling. To avoid possible damage to your server system, do not use older style drive carriers. Note: The server system does not support all hard drives. See an Internet link to a list of supported hardware.

  • Page 67: Figure 34. Removing Hot-Swap Disk Carrier From The Server System

    3. Pull out on the black lever and slide the carrier from the server system. See letter "B" in the figure below. Figure 34. Removing Hot-swap Disk Carrier from the Server System 4. Remove the four screws that attach the plastic retention device or the previously installed hard drive to the drive carrier.

  • Page 68: Figure 36. Installing Hard Drive Into Carrier

    9. With the black lever in the fully open position, slide the drive assembly into the server system. The green latch at the front of the drive carrier must be to the right. Do not push on the black drive carrier lever until the lever begins to close by itself.

  • Page 69: Removing A Sas Or Sata Hot-Swap Hard Disk Drive

    The green latch must be to the right. Do not push on the black lever until the lever begins to close by itself. Note: For proper airflow, the hard drive carrier must be replaced in the server system, even if no hard drive is installed in it.

  • Page 70: Installing A Slimline Optical Drive Or Internal Usb Floppy

    1. Observe the safety and ESD precautions at the beginning of this book. See Information”. 2. Power down the server and unplug all peripheral devices and the AC power cable(s). 3. Remove the front bezel if it is installed. For instructions, see Bezel”.

  • Page 71: Removing A Slimline Optical Drive Or Internal Usb Floppy

    1. Observe the safety and ESD precautions at the beginning of this book. See Information”. 2. Power down the server and unplug all peripheral devices and the AC power cable(s). 3. Remove the front bezel if it is installed. For instructions, see Bezel”.

  • Page 72: Figure 40. Removing The Slimline Optical Drive Assembly From The Server System

    (see letter “B”). 8. Lift up on the optical drive (see letter “C”) to remove it from the tray. Figure 41. Removing the Slimline Optical Drive from the Tray System Intel® Server System SR2500AL User’s Guide AF000151 AF000152...

  • Page 73: Installing A Tape Drive

    11. (Optional) Install the front bezel. For instructions, see 12. Plug all peripheral devices and the AC power cable(s) into the server. Installing a Tape Drive To install a tape drive into your server system, your system must meet the following requirements: •...

  • Page 74: Figure 43. Removing Tape Drive Filler Panel From The Server System

    Cover”. 5. Remove the tape drive filler panel from the server system by using a long screwdriver to push it out from the inside of the server system. See the figure below to locate the tape drive filler panel. Figure 43. Removing Tape Drive Filler Panel from the Server System 6.

  • Page 75: Figure 45. Inserting A Tape Drive Into The Carrier

    8. Slide the tape drive carrier with the installed tape drive into the combined tape drive bay/sixth drive bay until the carrier clicks into place. Figure 46. Installing Tape Drive Assembly into the Server System Intel® Server System SR2500AL User’s Guide AF000032 AF000033...

  • Page 76: Installing A Sixth Hard Drive

    1. Observe the safety and ESD precautions at the beginning of this book. See Information”. 2. Power down the server and unplug all peripheral devices and the AC power cable(s). 3. Remove the front bezel if it is installed. For instructions, see Bezel”.

  • Page 77: Figure 48. Installing Power And Sata Cables (Active Mid-Plane Installed)

    HDD board (see letter “B”). Proceed to step 9. Figure 48. Installing Power and SATA Cables (Active Mid-Plane Installed) Note: You will not use the long SATA cable from the 6th HDD kit in a system with an active mid- plane. Intel® Server System SR2500AL User’s Guide AF002122...

  • Page 78: Figure 49. Installing Power And Sata Cables (Passive Mid-Plane Installed)

    (see letter “C”). Connect the other end of the cable (labeled SERVER BOARD) to the SATA5 connector on the server board (see letter “D” in the figure below). Continue with step 9.

  • Page 79: Filling Empty Server System Bays

    To remove the PCI riser assembly, use the following instructions. 1. Observe the safety and ESD precautions at the beginning of this book. See Information”. 2. Power down the server and unplug all peripheral devices and the AC power cable(s). Intel® Server System SR2500AL User’s Guide Bezel”.

  • Page 80: Figure 51. Removing Pci Riser Assembly From The Server System

    9. If you need to add or replace a PCI riser connector, see Card”. 10. If you removed the PCI riser assembly for another procedure, continue with that procedure. “Removing the System TP02145 “Installing and Removing a PCI “Replacing a PCI Riser Intel® Server System SR2500AL User’s Guide...

  • Page 81: Installing The Pci Riser Assembly

    Figure 52. Installing PCI Riser Assembly into the Server System 3. Press down uniformly until the three hooks on the rear of the PCI riser assembly engage the server system back panel slots. The riser cards will seat into the matching sockets on the server board.

  • Page 82: Replacing A Pci Riser Card

    Caution: PCI riser connectors are NOT hot swappable. Before removing or replacing the riser connector, you must first take the server out of service, turn off all peripheral devices connected to the system, turn off the system by pressing the power button, and unplug the AC power cord from the system or wall outlet.

  • Page 83: Figure 53. Removing The Pci Riser Card From The Server System (Full Height Side)

    Figure 53. Removing the PCI Riser Card from the Server System (Full Height 10. Install the replacement riser connector, if desired. For instructions, see PCI Riser Card into the Server 11. Install the PCI add-in card(s) if desired. For instructions, see Card”.

  • Page 84: Installing A Pci Riser Card

    Installing a PCI Riser Card 1. Observe the safety and ESD precautions at the beginning of this book. See Information”. 2. Power down the server and unplug all peripheral devices and the AC power cable(s). 3. Remove the server system cover. For instructions, see Cover”.

  • Page 85: Installing And Removing A Pci Add-In Card

    Installing a PCI Add-in Card 1. Observe the safety and ESD precautions at the beginning of this book. See Information”. 2. Power down the server and unplug all peripheral devices and the AC power cable(s). 3. Remove the server system cover. For instructions, see Cover”.

  • Page 86: Removing A Pci Add-In Card

    Removing a PCI Add-in Card 1. Observe the safety and ESD precautions at the beginning of this book. See Information”. 2. Power down the server and unplug all peripheral devices and the AC power cable(s). 3. Remove the server system cover. For instructions, see Cover”.

  • Page 87: Figure 56. Removing A Full Height Add-In Card

    9. Close both retention clips. Note: Make sure that all empty add-in card slots have filler panels installed. 10. Install the PCI riser assembly into the server system. For instructions, see “Installing the PCI Riser 11. Install the processor air duct. For instructions, see Duct”.

  • Page 88: Installing And Removing The I/O Expansion Module(S)

    See letter “A” in the figure below. 6. Attach the standoffs to the server board (see letter “B” in the figure below) and attach the I/O expansion module(s) to the server board (see letter “C” in the figure below).

  • Page 89: Removing The I/O Expansion Module(S)

    4. Remove the PCI riser assembly. For instructions, see Assembly”. 5. Remove the I/O expansion module(s) from the server board (see letter “A” in the figure below). 6. Remove the standoffs from the server board (see letter “B” in the figure below).

  • Page 90: Installing The Intel Rmm And Intel Rmm Nic

    7. Attach the standoffs to the server board (see letter “C” in the following figure) and attach the Intel following figure). 8. Insert the standoff into the hole labeled TH4 on the Intel “E” in the following figure). The standoff installs on the bottom side of the Intel RMM board. ® RMM and Intel RMM NIC ®...

  • Page 91: Figure 59. Installing The Intel ® Rmm And The Intel ® Rmm Nic Module To The Server System

    1. Attach the Intel into the matching hole on the server board (see letter “F” in the following figure). Figure 59. Installing the Intel 2. Install the PCI riser assembly into the server system. For instructions, see “Installing the PCI Riser 3.

  • Page 92: Removing The Intel ® Rmm And Intel ® Rmm Nic

    5. Remove the Intel below). 6. Remove the Intel figure below). 7. Remove the standoffs from the server board (see letter “C” in the figure below). 8. Install the Intel “D” in the figure below). Figure 60. Removing the Intel 9.

  • Page 93: Replacing The Mid-Plane Board

    5. Remove the bridge board by lifting the retention mechanism from the mid-plane and the server board (see letter “A” in the figure below), and lifting straight up (see letter “B” in the figure below) and sliding the board out of the fan assembly (see letter “C”...

  • Page 94: Installing The Mid-Plane Board

    Installing the Mid-plane Board 1. Observe the safety and ESD precautions at the beginning of this book. See Information”. 2. Power down the server and unplug all peripheral devices and the AC power cable(s). 3. Remove the server system cover. For instructions, see Cover”.

  • Page 95: Figure 63. Installing The Mid-Plane Into The Server System

    (see letter “B” in the figure below), and inserting it into the connector on the server board (see letter “C” in the figure below. Close the retention mechanism to hold the bridge board in place.

  • Page 96: Replacing The Backplane

    For instructions, see Drive”. 6. Disconnect all cables from the backplane. 7. Firmly grasp the top of the backplane and remove the backplane from the server system by pulling straight up as shown in the figure below. “Installing the Server System “Removing the System...

  • Page 97: Figure 65. Removing The Backplane From The Server System

    AF000016 Figure 65. Removing the Backplane from the Server System Intel® Server System SR2500AL User’s Guide...

  • Page 98: Installing The Backplane

    6. Hold the backplane only by the edges. Do not push or pull on any components on the backplane. set the backplane in place at the front of the server system, with the sides of the board resting in the guides at the left and right sides of the server system.

  • Page 99: Installing And Removing The Raid Activation Key And The Raid Mini Dimm

    Installing the RAID Activation Key and the RAID Mini DIMM 1. Observe the safety and ESD precautions at the beginning of this book. See Information”. 2. Power down the server and unplug all peripheral devices and the AC power cable(s). 3. Remove the server system cover. For instructions, see Cover”.

  • Page 100: Removing The Raid Activation Key And The Raid Mini Dimm

    Removing the RAID Activation Key and the RAID Mini DIMM 1. Observe the safety and ESD precautions at the beginning of this book. See Information”. 2. Power down the server and unplug all peripheral devices and the AC power cable(s). 3. Remove the server system cover. For instructions, see Cover”.

  • Page 101: Installing And Removing The Raid Battery Backup Unit (Bbu)

    Cover”. 4. Remove the large air baffle. For instructions, see 5. Insert the RAID battery backup unit into the server system and slide back until it locks into place as shown in the figure below (see letter “A”). 6. Attach the cable from the rear of the RAID battery backup unit to the mid-plane board as shown (see letter “B”).

  • Page 102: Removing The Raid Battery Backup Unit

    5. Remove the cable from the rear of the RAID battery backup unit and the mid-plane board as shown in the figure below (see letter “A”). 6. Slide the RAID battery backup unit forward and lift from the server system (see letter “B”).

  • Page 103: Installing And Removing The Server Board

    8. Remove the large air baffle. For instructions, see 9. Remove the fan module assembly. For instructions, see 10. Place the server board into the server system as shown in the figure below (see letter “A”), and attach the server board with six screws (see letter “B”).

  • Page 104: Removing The Server Board

    Removing the Server Board 1. Observe the safety and ESD precautions at the beginning of this book. See Information”. 2. Power down the server and unplug all peripheral devices and the AC power cable(s). 3. Remove the server system cover. For instructions, see Cover”.

  • Page 105: Figure 72. Removing The Server Board

    13. Remove the six screws from the server board (see letter “A”) and lift the server board from the server system (see letter “B”). 14. Replace the server board. For instructions, see 15. Connect all power cables to the server board.

  • Page 106: Replacing The Backup Battery

    Replacing the Backup Battery The lithium battery on the server board powers the RTC for up to 10 years in the absence of power. When the battery starts to weaken, it loses voltage, and the server settings stored in CMOS RAM in the RTC (for example, the date and time) may be wrong. Contact your customer service representative or dealer for a list of approved devices.

  • Page 107: Figure 73. Replacing The Backup Battery

    1. Observe the safety and ESD precautions in 2. Turn off all peripheral devices connected to the server. Turn off the server. 3. Disconnect the AC power cord(s) from the server. 4. Remove the server's cover and locate the battery. See the documentation that came with your server chassis for instructions on removing the server's cover.

  • Page 108: Replacing The Power Supply

    If you only have one power supply installed, before removing or replacing the power supply, you must first take the server out of service, turn off all peripheral devices connected to the system, turn off the system by pressing the power button, and unplug the AC power cord from the system or wall outlet.

  • Page 109: Figure 75. Removing Power Supply Module From The Server System

    Figure 77. Installing Power Supply Filler Panel into the Server System 8. Install the server system cover. For instructions, see Cover”. 9. Plug all peripheral devices and the AC power cable(s) into the server. Intel® Server System SR2500AL User’s Guide AF000022...

  • Page 110: Replacing The Power Distribution Module

    To replace the power distribution module, use the following instructions. 1. Observe the safety and ESD precautions at the beginning of this book. See Information”. 2. Power down the server and unplug all peripheral devices and the AC power cable(s). 3. Remove the server system cover. For instructions, see Cover”.

  • Page 111: Replacing The Control Panel

    16. Plug all peripheral devices and the AC power cable(s) into the server. Replacing the Control Panel The steps for replacing the standard control panel and the Intel nearly identical. Use the steps below for both varieties of the control panel. Where necessary, differences between the two control panels are noted.

  • Page 112: Figure 79. Removing Standard Control Panel Module From The Server System

    5. Press the latch at the back of the control panel (see letter “A” in the figure below). 6. Slide the control panel out through the front of the server system (see letter “B” in the figure below). Figure 79. Removing Standard Control Panel Module from the Server 7.

  • Page 113: Replacing A Fan Module

    Replacing a Redundant Fan Module 1. Observe the safety and ESD precautions at the beginning of this book. See Information”. 2. Power down the server and unplug all peripheral devices and the AC power cable(s). 3. Remove the server system cover. For instructions, see Cover”.

  • Page 114: Figure 81. Removing The Redundant Fan Module

    12. Connect the fan cables to the mid-plane. 13. Install the large air baffle. For instructions, see Re-route cables through the air baffle as necessary. Figure 82. Installing the Redundant Fan Module Intel® Server System SR2500AL User’s Guide “Installing the Large Air Baffle”.

  • Page 115: Replacing A Fixed Fan Module

    Replacing a Fixed Fan Module 1. Observe the safety and ESD precautions at the beginning of this book. See Information”. 2. Power down the server and unplug all peripheral devices and the AC power cable(s). 3. Remove the server system cover. For instructions, see Cover”.

  • Page 116: Figure 83. Removing The Fixed Fan Module

    11. Install the replacement fan module assembly by lowering it over the standoff (see letter “A” in the figure below), and sliding the assembly to the right (see letter “B”). Figure 83. Removing the Fixed Fan Module Figure 84. Installing the Fixed Fan Module Intel® Server System SR2500AL User’s Guide...

  • Page 117: Replacing A Redundant System Fan

    The system fans at the front of the server system can be individually replaced if one of them fails. Use the steps below to replace a system fan.

  • Page 118: Figure 85. Removing A Fan From The Redundant Fan Module

    5. With the fan oriented correctly, insert the fan into the fan module, engaging the connector on the fan into the matching connector on the fan module. Figure 86. Installing a Fan into the Redundant Fan Module AF000004 AF000009 Intel® Server System SR2500AL User’s Guide...

  • Page 119: Replacing A Fixed Fan

    The system fans at the front of the server system can be individually replaced if one of them fails. Use the steps below to replace a fan.

  • Page 120: Installing And Removing The Rack Handles

    3. Remove the server system cover. For instructions, see Cover”. 4. Align the rack handle with the two holes on the side of the server system as shown in the figure below. 5. Attach the rack handle to the server system with two screws as shown in the figure below.

  • Page 121: Removing The Rack Handles

    1. Observe the safety and ESD precautions at the beginning of this book. See Information”. 2. Power down the server and unplug all peripheral devices and the AC power cable(s). 3. Remove the front bezel if it is installed. For instructions, see Bezel”.

  • Page 122: Figure 90. Removing The Rack Handle

    AF000020 Figure 90. Removing the Rack Handle 6. Install the server system cover. For instructions, see “Installing the Server System Cover”. 7. Plug all peripheral devices and the AC power cable(s) into the server. Intel® Server System SR2500AL User’s Guide...

  • Page 123: Chapter 4: Server Utilities

    • When you turn on the server, after POST completes the memory test. • When you have moved the CMOS jumper on the server board to the "Clear CMOS" position (enabled). In the two conditions listed above, during the Power On Self Test (POST), you will see this prompt: Press <F2>...

  • Page 124: Table 4. Setup Menu Key Use

    If "No" is selected and the <Enter> key is pressed, or if the <Esc> key is pressed, the user is returned to where they were before <F9> was pressed without affecting any existing field values. Intel® Server System SR2500AL User’s Guide...

  • Page 125: Upgrading The Bios

    Press <F2> Key if you want to run SETUP 2. Write down the current settings in the BIOS Setup program. Note: Do not skip step 2. You will need these settings to configure your server at the end of the procedure.

  • Page 126: Upgrading The Bios

    3. Move the jumper from the normal operation position, Password Clear Protect, at pins 1 and 2 to the Password Clear Erase position, covering pins 2 and 3. for a link to the update software. Intel® Server System SR2500AL User’s Guide “Server...

  • Page 127: Clearing The Cmos

    2. Open the server. 3. Move the jumper from the normal operation position, CMOS Clear by BMC, at pins 1 and 2 to the CMOS Clear Force Erase position, covering pins 2 and 3. Intel® Server System SR2500AL User’s Guide Disable Enable J1D1 Figure 91.

  • Page 128: Figure 92. Clear Cmos Jumper

    7. Reconnect the AC power and power up the system. 8. The CMOS is now cleared and can be reset by going into the BIOS setup. BMC Force Disable Enable J1D1 Figure 92. Clear CMOS Jumper Intel® Server System SR2500AL User’s Guide TP02080...

  • Page 129: Appendix A: Technical Reference

    Appendix A: Technical Reference Cable Routing When you add or remove components from your server system, make sure your cables are routed correctly before reinstalling the server system cover. Use caution to make sure no cables or wires are pinched and that the airflow from the fans is not blocked. Use the figures below to determine the correct cable routing.

  • Page 130: Fan Connections

    Use the figures below to determine the proper fan connections. AF000145 Figure 94. Connecting the Non-redundant Fan Power Cables to the Passive Mid-plane Board TP02140 Figure 95. Connecting the Redundant Fan Power Cables to the Active Mid- plane Board Intel® Server System SR2500AL User’s Guide...

  • Page 131: 750W Single Power Supply Input Voltages

    Warning: Do not exceed a combined power output of 90 Watts for the +5 V and +3.3 V outputs. Exceeding a combined 90 Watts will overload the power subsystem and may cause the power supplies to overheat and malfunction. Intel® Server System SR2500AL User’s Guide Table 5. Power Supply Output Capability Maximum Current...

  • Page 132: System Environmental Specifications

    Operational after an 18" free fall. 7 Bels in sound power for a typical office ambient temperature (65-75 °F). Your selection of peripherals may change the noise level. Tested to 15 kilovolts (kV); no component damage. Intel® Server System SR2500AL User’s Guide...

  • Page 133: Appendix B: Troubleshooting

    SATA drivers. Intel provides a package called the "Platform Confidence Test" that may help with your diagnostics. See If you are unable to resolve your server problems on your own, see assistance.

  • Page 134: Problems Following Initial System Installation

    • Is the operating system properly loaded? See the operating system documentation. • Did you press the system power on/off switch on the front panel to turn the server on (power on light should be lit)? • Is the system power cord properly connected to the system and plugged into a NEMA 5 15R outlet for 100-120V or a NEMA 6-15R outlet for 200-240V ? •...

  • Page 135: Verifying Proper Operation Of Key System Lights

    No characters appear on screen. • Characters on the screen appear distorted or incorrect. Intel® Server System SR2500AL User’s Guide “Drive Activity Light Does “Make sure the BIOS is configured to allow the for a description of the light and steps to Screen”.

  • Page 136: Power Light Does Not Light

    Remove the processor(s) and re-seat them. • Make sure the chassis standoffs are installed only below mounting holes. Misplaced standoffs can contact the pins on the bottom of the server board and cause a short. No Characters Appear on Screen Check the following: •...

  • Page 137: Characters Are Distorted Or Incorrect

    If you are using an add-in video controller board, do the following: 1. Verify that the video works using the onboard video controller. 2. Verify that the video controller board is fully seated in the server board connector. 3. Reboot the system for changes to take effect.

  • Page 138: Drive Activity Light Does Not Light

    If your system has LED lights for the fans, is one or more of these LEDs lit? • Are any other control panel LEDs lit? • Have any of the fan motors stopped? Use the server management subsystem to check the fan status. • Have your fans speeded up in response to an overheating situation? •...

  • Page 139: Problems With Network

    Put the adapter in a different slot. • The network driver files may be corrupt or deleted. Delete and then reinstall the drivers. • Run diagnostics. Intel® Server System SR2500AL User’s Guide “Server System References” for a link to the...

  • Page 140: System Boots When Installing Pci Card

    Before installing a PCI card, you should always: • Turn off the server power by using the power button on the front of the system. • Unplug the AC power cord(s) from the server. Problems with Newly Installed Application Software Problems that occur when you run new application software are usually related to the software, not the server hardware.

  • Page 141: Devices Are Not Recognized Under Device Manager (Microsoft* Windows* Operating System)

    Make sure the drive is compatible. See tested drives. • Make sure you have not exceeded the power budget for the server. See System References” • If using SCSI drives, verify that each SCSI ID number is unique on the SCSI bus.

  • Page 142: Led Information

    Replace or reseat the system video add-in card. If on-board video is bing used, the server board may be faulty. Intel® Server System SR2500AL User’s Guide Notes Off = Power is off or in sleep state S5...

  • Page 143: Table 10. Error Beep Codes Generated By Intel

    In addition to the beep codes above, additional beep codes are provided if an Intel Remote Management Module is installed. The Intel provides the following additional beep codes. Table 10. Error Beep Codes Generated by Intel Number of Beeps 1-5-1-1...
  • Page 144 Intel® Server System SR2500AL User’s Guide...

  • Page 145: Appendix C: Intel ® Server Issue Report Form

    Appendix C: Intel Note: An on-line / automatic submission version of this form is available at http:// support.intel.com/support/motherboards/server/chassis/SR2500/. For the fastest service, please submit your form via the Internet. Date Submitted: _______________________________________________________ Company Name: ______________________________________________________ Contact Name: ________________________________________________________ Email Address: _______________________________________________________...

  • Page 146: Operating System Information

    Middle PCI Slot Bottom PCI Slot PCIe* x4 Top PCI Slot Middle PCI Slot Bottom PCI Slot PCIe x8 Top PCI Slot Middle PCI Slot Bottom PCI Slot Driver Description Revision Intel® Server System SR2500AL User’s Guide I/O Base Address Revision...

  • Page 147: Management Information

    On-Board Platform Instrumentation only ___________________________________ ® Intel Remote Management Module _______________________________________ Control Panel Information Standard Control Panel _________________________________________________ ® Intel Local Control Panel_______________________________________________ Intel® Server System SR2500AL User’s Guide Driver Description Revision Hot-swap Make/Model or Fixed I/O Base Address Revision...

  • Page 148: Complete Problem Description

    Please also include any details on troubleshooting already done. ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ Intel® Server System SR2500AL User’s Guide...

  • Page 149: Appendix D: Led Decoder

    BIOS will display the given POST code to the POST Code Diagnostic LEDs found on the back edge of the server board. To assist in troubleshooting a system hang during the POST process, the Diagnostic LEDs can be used to identify the last POST process to be executed.

  • Page 150: Figure 96. Diagnostic Led Placement Diagram

    Reading configuration data from memory (SPD on DIMM) Detecting presence of memory Programming timing parameters in the memory controller Configuring memory parameters in the memory controller Optimizing memory controller settings Initializing memory, such as ECC init Testing memory Intel® Server System SR2500AL User’s Guide Description...
  • Page 151 0x79h 0x7Ah Keyboard (PS2 or USB) 0x90h 0x91h 0x92h Intel® Server System SR2500AL User’s Guide Table 12. Diagnostic LED POST Code Decoder Enumerating PCI busses Allocating resources to PCI busses Hot Plug PCI controller initialization Reserved for PCI bus Reserved for PCI bus...
  • Page 152 Trying boot device selection Trying boot device selection Trying boot device selection Trying boot device selection Trying boot device selection Trying boot device selection Trying boot device selection Trying boot device selection Trying boot device selection Intel® Server System SR2500AL User’s Guide...
  • Page 153 Runtime Phase / EFI Operating System Boot 0xF4h 0xF5h 0xF8h 0xF9h Intel® Server System SR2500AL User’s Guide Table 12. Diagnostic LED POST Code Decoder Trying boot device selection Trying boot device selection Trying boot device selection Trying boot device selection...
  • Page 154 Crisis recovery has been initiated because of a user request Crisis recovery has been initiated by software (corrupt flash) Loading crisis recovery capsule Handing off control to the crisis recovery capsule Unable to complete crisis recovery. Intel® Server System SR2500AL User’s Guide...

  • Page 155: Appendix E: Getting Help

    Telephone All calls are billed per incident, levied in local currency at the applicable credit card exchange rate plus applicable taxes. (Intel reserves the right to change the pricing for telephone support at any time without notice). Before calling, fill out an on the following pages.

  • Page 156: Latin America

    Easter Island ..Contact AT&T USA at 800 800 311. Once connected, dial 800 843 4481 Mainland and Juan .. Contact AT&T USA at 800 225 288. Once connected, dial 800 843 4481 81 298 47 0800 Intel® Server System SR2500AL User’s Guide...
  • Page 157 Paraguay ... 001 916 377 0114 Peru ... 001 916 377 0114 Uruguay ... 001 916 377 0114 Venezuela ... Contact AT&T USA at 0 800 2255 288. Once connected, dial 800 843 4481 Intel® Server System SR2500AL User’s Guide...
  • Page 158 Intel® Server System SR2500AL User’s Guide...

  • Page 159: Appendix F: Regulatory And Compliance Information

    (or higher) and operating at the same (or higher) speed as the microprocessor used on this server board. The final configuration of your end system product may require additional EMC compliance testing. For more information, please contact your local Intel representative.

  • Page 160: Product Regulatory Compliance References

    Product Regulatory Compliance References The following table references Server Chassis Compliance and markings that may appear on the product. Markings below are typical markings however, may vary or be different based on how certification is obtained. Note: Certifications Emissions requirements are to Class A.
  • Page 161 Table 13. Product Regulatory Compliance Markings Compliance Regional Description CENELEC Europe Germany International Japan Korea Intel® Server System SR2500AL User’s Guide Compliance Compliance Reference Marking Example Reference Low Voltage Directive 93/68/ EEC; EMC Directive 89/ 336/EEC EN55022 (Emissions) EN55024 (Immunity)
  • Page 162 Table 13. Product Regulatory Compliance Markings Compliance Regional Description Russia Ukraine Taiwan Compliance Compliance Reference Marking Example Reference GOST-R Certification GOST R 29216- 91 (Emissions) GOST R 50628- 95 (Immunity) Ukraine Certification BSMI CNS13438 Intel® Server System SR2500AL User’s Guide None Required R33025...

  • Page 163: Electromagnetic Compatibility Notices

    TV reception. All cables used to connect to peripherals must be shielded and grounded. Operation with cables, connected to peripherals, that are not shielded and grounded may result in interference to radio and TV reception. Intel® Server System SR2500AL User’s Guide...

  • Page 164: Industry Canada (Ices-003)

    Install and use the equipment according to the instruction manual. BSMI (Taiwan) The BSMI Certification Marking and EMC warning is located on the outside rear area of the product. Intel® Server System SR2500AL User’s Guide...

  • Page 165: Korean Compliance (Rrl)

    The CCC Certification Marking and EMC warning is located on the outside rear area of the product. Product Ecology Compliance Intel has a system in place to restrict the use of banned substances in accordance with world wide product ecology regulatory requirements. The following is Intel's product ecology compliance criteria.

  • Page 166: Table 14. Product Ecology Compliance Markings

    Outsourced Manufacturers - http:// supplier.intel.com/ehs/environmental.htm Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/ EC - Mark applied to system level products only. Intel® Server System SR2500AL User’s Guide Compliance Reference Marking Example Special handling may apply. See www.dtsc.ca.gov/ hazardouswaste/perchlorate. This notice is required by California Code of Regulations, Title 22, Division 4.5;...
  • Page 167 Description Europe Germany Intel Internal Specification International Japan Intel® Server System SR2500AL User’s Guide Compliance Reference European Directive 2002/95/EC - Restriction of Hazardous Substances (RoHS). Threshold limits and banned substances are noted below. Quantity limit of 0.1% by mass (1000...

  • Page 168: Table 15. Other Markings

    Applied to product if stand-by power switch is used. Multiple Power Cords Warnings Applied to product if more than one power cord is used. Intel® Server System SR2500AL User’s Guide Compliance Reference Marking Example English: This unit has more than one power supply cord.

  • Page 169: Regulated Specified Components

    Updated product information for configurations can be found on the Intel Server Builder Web site at the following URL: http://channel.intel.com/go/serverbuilder If you do not have access to Intel's Web address, please contact your local Intel representative. •...

  • Page 170: End-Of-Life / Product Recycling

    End-of-Life / Product Recycling Product recycling and end-of-life take-back systems and requirements vary by country. Contact the retailer or distributor of this product for information about product recycling and / or take-back. Intel® Server System SR2500AL User’s Guide...

  • Page 171: Appendix G: Warranty

    "as is" unless specifically provided for otherwise in any software license accompanying the software. If any Product furnished by Intel which is the subject of this Limited Warranty fails during the warranty period for reasons covered by this Limited Warranty, Intel, at its option, will: •...

  • Page 172: Warranty Limitations And Exclusions

    Limitations of Liability Intel's responsibility under this, or any other warranty, implied or expressed, is limited to repair, replacement, or refund, as set forth above. These remedies are the sole and exclusive remedies for any breach of warranty.

  • Page 173: Returning A Defective Product

    Telephone Support If you cannot find the information you need on Intel's World Wide Web site (http:// www.intel.com/), call your local distributor or an Intel Customer Support representative.
  • Page 174 Intel® Server System SR2500AL User’s Guide...

  • Page 175: Appendix H: Installation/Assembly Safety Instructions

    Appendix H: Installation/Assembly English Intel® Server System SR2500AL User’s Guide Safety Instructions The power supply in this product contains no user-serviceable parts. Refer servicing only to qualified personnel. Do not attempt to modify or use the supplied AC power cord if it is not the exact type required.
  • Page 176 • Provided with a properly grounded wall outlet. • Provided with sufficient space to access the power supply cord(s), because they serve as the product's main power disconnect. Intel® Server System SR2500AL User’s Guide...

  • Page 177: Deutsch

    Deutsch Intel® Server System SR2500AL User’s Guide Benutzer können am Netzgerät dieses Produkts keine Reparaturen vornehmen. Das Produkt enthält möglicherweise mehrere Netzgeräte. Wartungsarbeiten müssen von qualifizierten Technikern ausgeführt werden. Versuchen Sie nicht, das mitgelieferte Netzkabel zu ändern oder zu verwenden, wenn es sich nicht genau um den erforderlichen Typ handelt.
  • Page 178 Schutzhandschuhe tragen. Bei falschem Einsetzen einer neuen Batterie besteht Explosionsgefahr. Die Batterie darf nur durch denselben oder einen entsprechenden, vom Hersteller empfohlenen Batterietyp ersetzt werden. Entsorgen Sie verbrauchte Batterien den Anweisungen des Herstellers entsprechend. Intel® Server System SR2500AL User’s Guide...

  • Page 179: Français

    Français Intel® Server System SR2500AL User’s Guide Das System wurde für den Betrieb in einer normalen Büroumgebung entwickelt. Der Standort sollte: • "sauber und staubfrei sein (Hausstaub ausgenommen); • "gut gelüftet und keinen Heizquellen ausgesetzt sein (einschließlich direkter Sonneneinstrahlung); •...
  • Page 180 Le microprocesseur et le dissipateur de chaleur peuvent être chauds si le système a été sous tension. Faites également attention aux broches aiguës des cartes et aux bords tranchants du capot. Nous vous recommandons l'usage de gants de protection. Intel® Server System SR2500AL User’s Guide...

  • Page 181: Español

    Español Intel® Server System SR2500AL User’s Guide Danger d'explosion si la batterie n'est pas remontée correctement. Remplacer uniquement avec une batterie du même type ou d'un type équivalent recommandé par le fabricant. Disposez des piles usées selon les instructions du fabricant.
  • Page 182 4. Inserte el bloqueo de seguridad en el sistema y bloquéelo para impedir que pueda accederse al mismo sin autorización. 5. Conecte todos los cables externos y los cables de alimentación CA al sistema. Intel® Server System SR2500AL User’s Guide...

  • Page 183: Chinese

    Chinese Intel® Server System SR2500AL User’s Guide Si el sistema ha estado en funcionamiento, el microprocesador y el disipador de calor pueden estar aún calientes. También conviene tener en cuenta que en el chasis o en el tablero puede haber piezas cortantes o punzantes.

  • Page 184: Italiano

    1. Aprire e rimuovere il lucchetto dal retro del sistema qualora ve ne fosse uno installato. 2. Togliere e mettere in un posto sicuro tutte le viti delle coperture. 3. Togliere le coperture. Intel® Server System SR2500AL User’s Guide...
  • Page 185 Intel® Server System SR2500AL User’s Guide Per il giusto flusso dell'aria e raffreddamento del sistema, rimettere sempre le coperture del telaio prima di riaccendere il sistema. Operare il sistema senza le coperture al loro proprio posto potrebbe danneggiare i componenti del sistema. Per rimettere le coperture del telaio: 1.
  • Page 186 Intel® Server System SR2500AL User’s Guide...

  • Page 187: Appendix I: Safety Information

    To reduce the risk of bodily injury, electrical shock, fire, and equipment damage, read this document and observe all warnings and precautions in this guide before installing or maintaining your Intel In the event of a conflict between the information in this document and information provided with the product or on the website for a particular product, the product documentation takes precedence.

  • Page 188: Intended Application Uses

    To reduce the weight for easier handling, remove any easily detachable components. Indicates do not touch fan blades, may result in injury. Indicates to unplug all AC power cord(s) to disconnect AC power Please recycle battery Intel® Server System SR2500AL User’s Guide...

  • Page 189: Power And Electrical Warnings

    When replacing a hot-plug power supply, unplug the power cord to the power supply being replaced before removing it from the server. To avoid risk of electric shock, turn off the server and disconnect the power cord, telecommunications systems, networks, and modems attached to the server before opening...

  • Page 190: System Access Warnings

    Caution: If the server has been running, any installed processor(s) and heat sink(s) may be hot. Unless you are adding or removing a hot-plug component, allow the system to cool before opening the covers.

  • Page 191: Electrostatic Discharge (Esd)

    After removing a board from its protective wrapper or from the server, place the board component side up on a grounded, static free surface. Use a conductive foam pad if available but not the board wrapper. Do not slide board over any surface.

  • Page 192: Deutsch

    Deutsch Sicherheitshinweise für den Server Das vorliegende Dokument bezieht sich auf Intel (Standfuß und Rack) sowie installierte Peripheriegeräte. Es enthält Warnungen und Vorsichtsmaßnahmen zur Vermeidung von Gefahren durch Verletzung, Stromschlag, Feuer und Beschädigungen von Geräten. Lesen Sie diese Dokument daher sorgfältig, bevor Sie Ihr Intel Bei Widersprüchen zwischen den hier vorliegenden Angaben und den Informationen im...

  • Page 193: Zielbenutzer Der Anwendung

    • Entfernen Sie alle Komponenten, die sich leicht abnehmen lassen, um das Gewicht zu reduzieren und die Handhabung zu erleichtern. Intel® Server System SR2500AL User’s Guide Weist darauf hin, daß das Anfassen des Gebläses zu Verletzungen führen kann. Bedeutet, alle Netzkabel abzuziehen und das Gerät von der Netzspannung zu trennen.

  • Page 194: Warnungen Zu Netzspannung Und Elektrizität

    Typ entspricht. Jedes Netzteil im System muß über ein eigenes Netzkabel angeschlossen werden. Einige Netzteile von Intel Servern verwenden Nullleitersicherungen. Vorsicht ist geboten im Umgang mit Netzteilen, welche Nullleitersicherungen verwenden, um das Risiko eines elektrischen Schlages zu vermeiden Das Netzteil in diesem Produkt enthält keine Teile, die vom Benutzer gewartet werden...

  • Page 195: Warnhinweise Für Den Systemzugang

    Wenn Sie ein hot-plug-fähiges Netzteil austauschen, ziehen Sie dessen Netzkabel ab, bevor Sie es aus dem Server ausbauen. Caution: War Ihr Server in Betrieb, können die installierten Prozessoren und Kühlkörper heiß sein. Sofern Sie keine Hot-Plug-Komponenten ein- oder ausbauen, warten Sie mit dem Abnehmen der Abdeckungen, bis das System abgekühlt ist.

  • Page 196: Elektrostatische Entladungen (Esd)

    äußerst empfindlich gegenüber elektrostatischer Entladung sein. Halten Sie Platinen nur an den Kanten fest. Legen Sie die Platinen nach dem Auspacken aus der Schutzhülle oder nach dem Ausbau aus dem Server mit der Bauelementseite nach oben auf eine geerdete, statisch entladene Unterlage. Verwenden Sie dazu, sofern verfügbar, eine leitfähige Schaumstoffunterlage, aber nicht die Schutzhülle der Platine.

  • Page 197: Français

    à jour votre produit serveur Intel En cas de conflit entre les informations fournies dans ce document et celles livrées avec le produit ou publiées sur le site Web pour un produit particulier, la documentation du...

  • Page 198: Domaines D'utilisation Prévus

    Signale des composants ou des surfaces soumis à des températures élevées. Indique de ne pas toucher aux pales de ventilateur, car cela peut entraîner des blessures. Indique de débrancher tous les cordons d’alimentation secteur pour déconnecter l’alimentation. Veuillez réutiliser la batterie Intel® Server System SR2500AL User’s Guide...

  • Page 199: Pratiques De Manipulation De L'équipement

    Vous devez les débrancher avant d’ouvrir le châssis, d’ajouter ou de supprimer un composant non connectable à chaud. Les alimentations de certains serveurs Intel sont munies de doubles fusibles pôle/neutre: veuillez observer les précautions d'usage afin d'éviter tout risque d'eléctrocution.

  • Page 200: Avertissements Sur Le Cordon D'alimentation

    Éteignez le système en appuyant sur le bouton d’alimentation. • Déconnectez l’alimentation secteur en débranchant tous les cordons d’alimentation secteur du système ou de la prise murale. • Déconnectez l’ensemble des câbles et lignes de télécommunication qui sont connectés au système. Intel® Server System SR2500AL User’s Guide...

  • Page 201: Avertissements Sur Le Montage En Rack

    étiqueté comme contrôlant toute l’unité, et pas uniquement le ou les serveurs. Pour éviter tout risque d’électrocution, le rack et chaque élément de l’équipement installé dans le rack doivent être correctement reliés à la terre. Intel® Server System SR2500AL User’s Guide...

  • Page 202: Décharges Électrostatiques (Esd)

    Vérifiez tout d’abord que vous n’avez pas oublié d’outils ou de composants détachés à l’intérieur du système. • Vérifiez que les câbles, les cartes d’extension et les autres composants sont correctement installés. • Fixez les panneaux au châssis en suivant les instructions du produit. Intel® Server System SR2500AL User’s Guide...

  • Page 203: Périphériques Laser

    Español Información de seguridad del servidor Este documento se aplica a las tarjetas de servidor de Intel®, las carcasas de servidor de Intel® (montaje en bastidor y en pedestal) y los dispositivos periféricos. Para reducir el riesgo de daños corporales, descargas eléctricas, fuego y en el equipo, lea este documento y preste atención a todos las advertencias y precauciones de esta guía antes de instalar o...

  • Page 204: Aplicaciones Y Usos Previstos

    Indica que no se deben tocar las aspas de los ventiladores, ya que de lo contrario se podrían producir lesiones. Indica que es necesario desenchufar los cables de alimentación de CA para desconectar la alimentación de CA Recicle por favor la batería Intel® Server System SR2500AL User’s Guide...

  • Page 205: Manipulacién Del Equipo

    CA estén desenchufado antes de abrir la carcasa, agregar o extraer cualquier componente que no es de conexión en funcionamiento. Algunas fuentes de alimentación de electricidad de los servidores de Intel utilizan el polo neutral del fuselaje. Para evitar riesgos de choques electricos use precauciónes al trabajar con las fuentes de alimentación que utilizan el polo neutral de fuselaje.

  • Page 206: Advertencias El Acceso Al Sistema

    Devuélvala al fabricante para repararla. • Apague el servidor y desconecte todos los cables de alimentación antes de agregar o reemplazar cualquier componente que no es de conexión en funcionamiento. Intel® Server System SR2500AL User’s Guide...

  • Page 207: Advertencias Sobre El Montaje En Bastidor

    Precaución: Las descargas electrostáticas pueden dañar las unidades de disco, las tarjetas y otros componentes. Recomendamos que realice todos los procedimientos en una estación de trabajo protegida contra descargas electrostáticas. En caso de que no haya una Intel® Server System SR2500AL User’s Guide...

  • Page 208: Otros Riesgos

    Compruebe primero que no ha dejado herramientas o piezas sueltas dentro del sistema. • Compruebe que los cables, tarjetas adicionales y otros componentes están instalados correctamente. • Sujete las cubiertas a la carcasa siguiendo las instrucciones del producto. Intel® Server System SR2500AL User’s Guide...
  • Page 209 Precaución Para evitar el riesgo de la exposición a radiaciones o de daños personales: • No abra la caja de ningún periférico o dispositivo láser • Los periféricos o dispositivos láser no pueden ser reparados por el usuario • Haga que el fabricante los repare Intel® Server System SR2500AL User’s Guide...
  • Page 210 Intel® Server System SR2500AL User’s Guide...

This manual is also suitable for:

Sr2500albrpSr2500albrpr - server system - 0 mb ramSr2500allxSr2500allxr - server system - 0 mb ram

Table of Contents
