Operation options
48
User interface
4
2 3
Xxxxxx/.../.../
Device name:
Device tag:
1
Status:
Xxxxxx
Access status tooling
P
+ Operation
– Setup
Device tag
P
– System units
Mass flow unit
P
8
Volume flow unit
P
+ Select medium
+ ...
+ ...
+
Advanced setup
+ Diagnostics
+
Expert
10
11

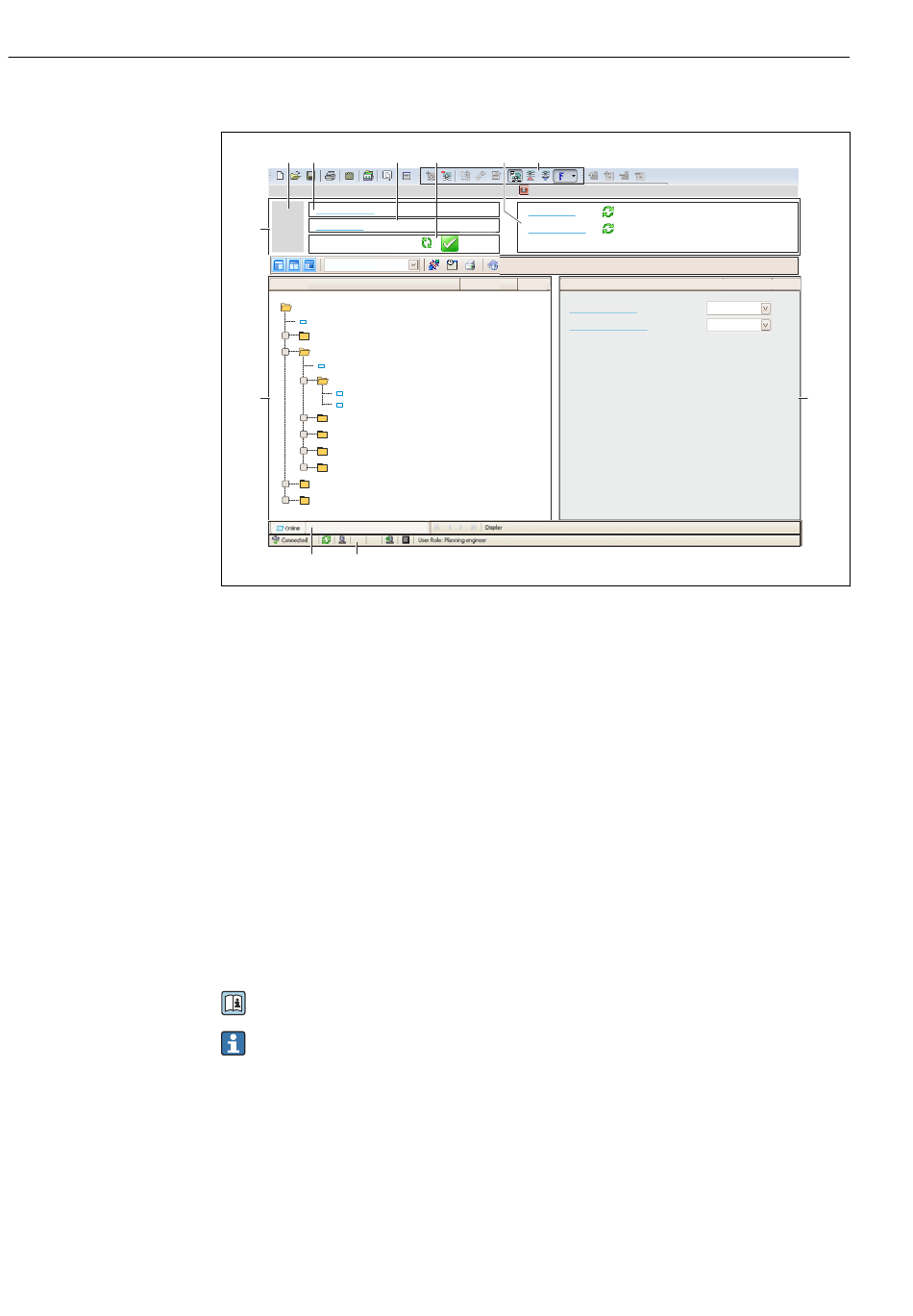

1 Header
2 Picture of device
3 Device name
4 Device tag
5 Status area with status signal →  91
6 Display area for current measured values
7 Editing toolbar with additional functions such as save/load, event list and create documentation
8 Navigation area with operating menu structure
9 Work area
10 Action area
11 Status area
8.5.3 DeviceCare
Function range
Tool for connecting and configuring Endress+Hauser field devices.
The fastest way to configure Endress+Hauser field devices is with the dedicated
"DeviceCare" tool. Together with the device type managers (DTMs) it presents a convenient,
comprehensive solution.
Innovation brochure IN01047S
Source for device description files →  49
5 6
7
Xxxxxxx
Mass flow:
Xxxxxxx
Volume flow:
Good
Mass flow unit:
Maintenance
Volume flow unit:
Xxxxxx
kg/h
m /h ³
Proline Promass A 100 PROFINET
kg/h
12.34
12.34
m /h ³
kg/h
m /h ³
Endress+Hauser
9
A0021051-EN
